Introduction
The Smartpack2-based Product Range
Eltek Valere's Smartpack2-based product range utilizes Flatpack2 rectifiers and the Smartpack2
distributed control system as building blocks for implementing effective DC power systems,
suitable for a wide range of applications and power ratings.
Flatpack2 Systems, SP2-based
Indoor and Outdoor Cabinets
Cabinetized systems are suitable for indoor or outdoor applications. In addition to the power
system and the distribution unit, the cabinet may also contain battery banks, additional distribution
and other dedicated equipment.
Integrated power systems consist of rectifiers, Smartpack2 Master and Smartpack2 Basic
controllers, I/O Monitor2 nodes and the distribution unit (4U high). Integrated systems are sold
primarily for mounting in existing cabinets.
Brief Description — Smartpack2-based System
The Smartpack2-based Flatpack2 PS system is a compact, powerful and cost-effective DC power
supply system, specifically developed for telecom and industrial applications.
Flatpack2
System
AC mains
supply
selector
AC Fuses,
external
(230VAC or
400VAC
AC Supply
(Single- or
three-phase)

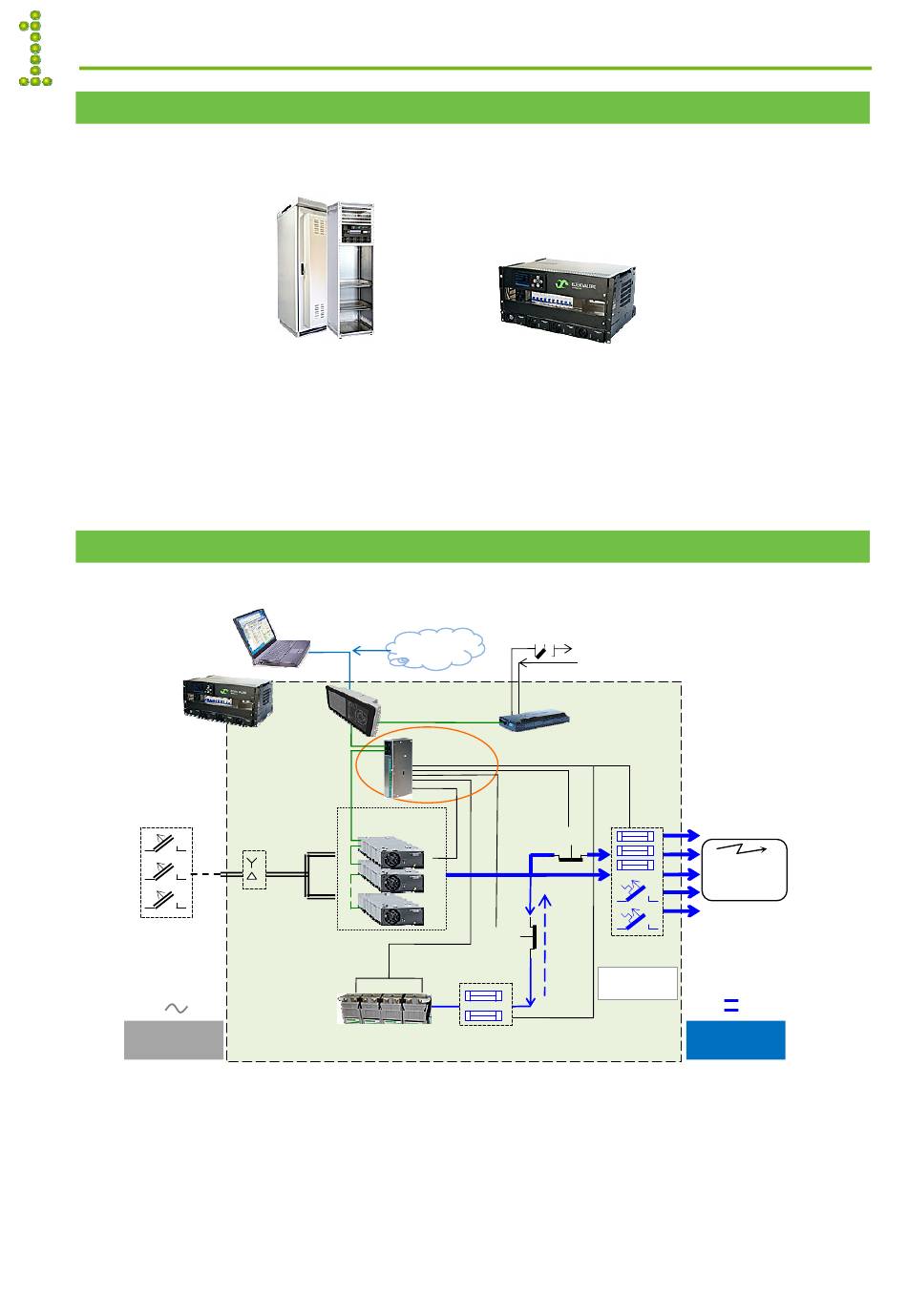

Example of a typical Smartpack2-based Flatpack2 system used for DC power supply of telecom
and industrial equipment. The system is fed from an external AC mains supply, and consists of
rectifiers in power shelves, master and basic controllers and DC distribution unit. Battery banks,
LVD contactors, etc. are typically also a part of the system.
2
WebPower
(web-based
user interface)
Internet
Ethernet
cable
Smartpack2
Master Controller
Smartpack2
Basic Controller
CAN Bus
Flatpack2 HE
rectifiers
Temp.
Sensors
Battery string #1
Quick Start Guide Flatpack2 PS System, 4U, SP2-based
Flatpack2 System, SP2-based
Integrated 4U Distributions
Alarm Outputs NC-C-NO
Config. Inputs
I/O Monitor2
CAN node
Fuse Alarm
LVLD
LVBD
Load Fuses
& MCBs
DC
Distribution
Battery
Fuses
Telecom and
Industrial
equipment
DC Supply
(24V, 48V
or 60V)
