Vigilant User Manual

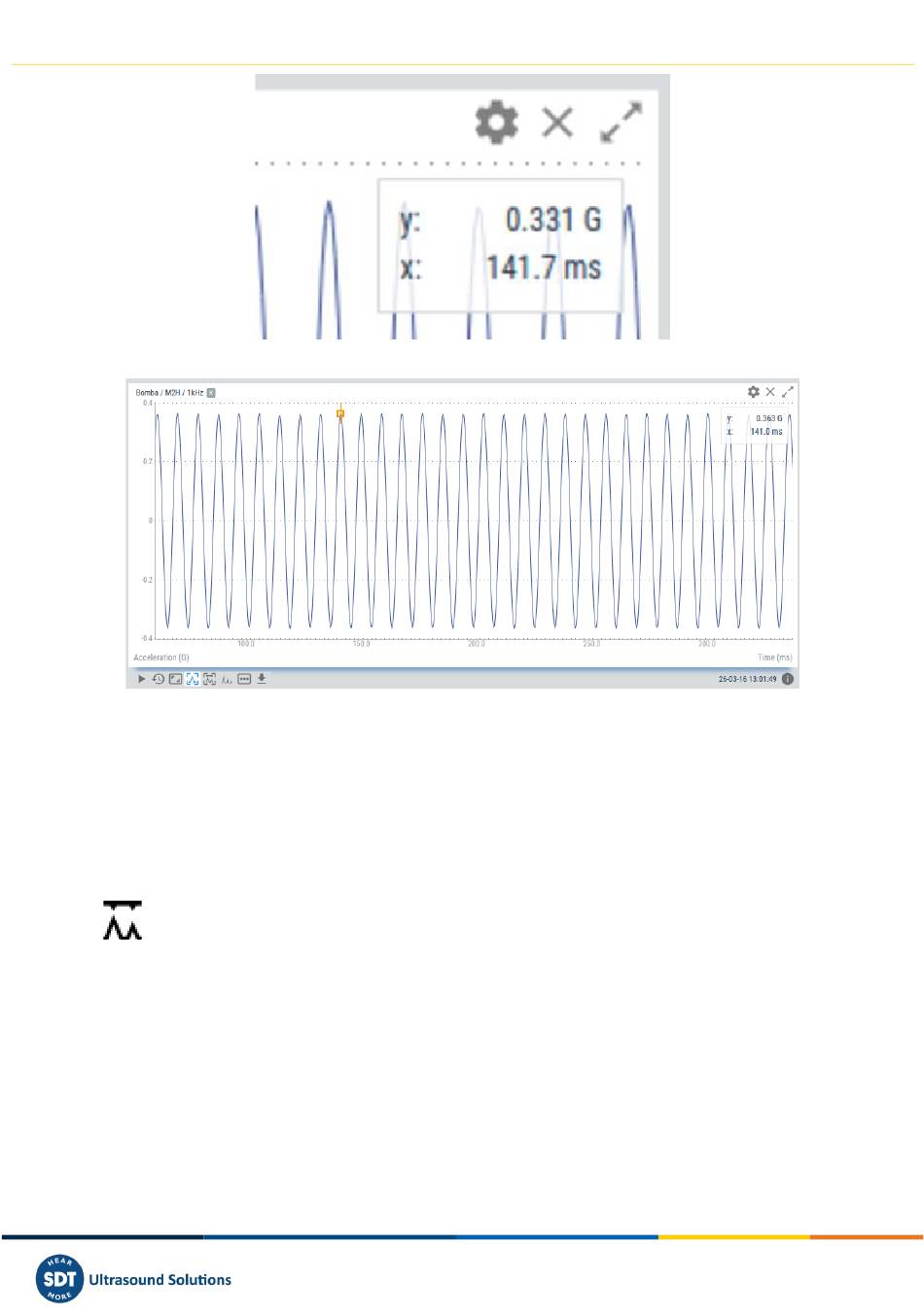

Once the cursor is created clicking on the graph again will move the cursor into the line of the
waveform point aligned with the mouse click position. The cursor can also be moved by pressing on
left and right arrows of the keyboard, jumping from line to line of the waveform. Keys "a" and "s" will
move the cursor to the left and right respectively in smaller steps (a tenth of the waveform
resolution).

Delta Time cursor

Delta Time type:
Shows on the waveform the main cursor and delta timelines around it, like the spectrum sidebands.
Once selected clicking on the spectrum will add the center frequency cursor. The center cursor can
be moved using the left and right arrows of the keyboard, or "a" and "s" keys for smaller steps.
Once the cursor is on the correct point clicking again on the graph will set this point as the central
reference, which will be identified with a red vertical line, and will add the Delta Time cursor and its
harmonics.
