Field Description
Name Defines the name to the Widget. It will be shown at the upper bar of
the Widget.
Line Color
Selects the color of the waveform line.
Machine Selects the machine of the waveform from the pull-down list.
Point Selects the dynamic point of the waveform from the pull-down list.
Proc. Mode Selects the Processing mode of the waveform from the pull-down list.
Field Description

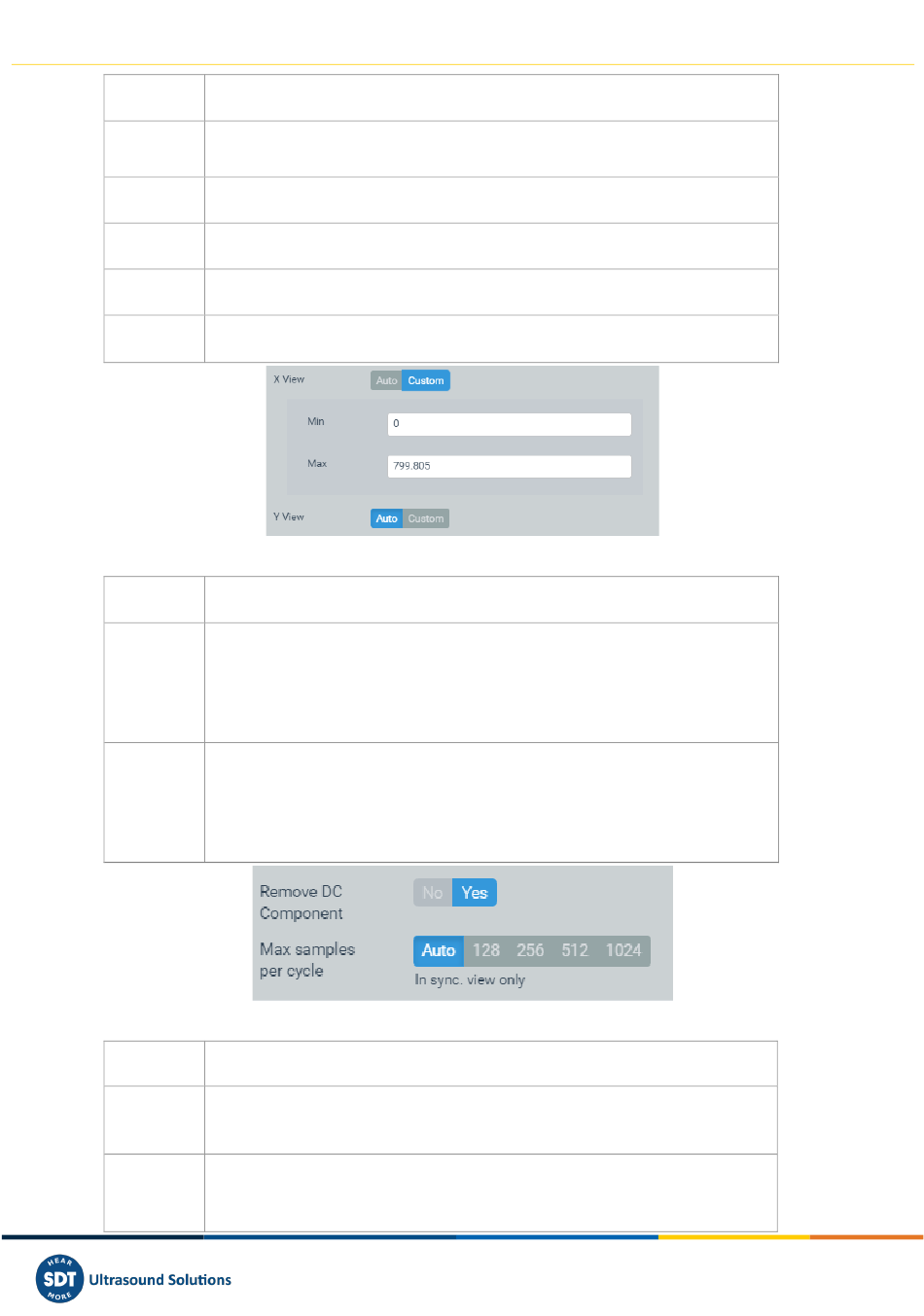

X View Sets the maximum and minimum values visible in the X axis. They can be
manually defined by the user, or just let the graph adjust to the data when
Auto option is enabled. Note that clicking on the Reset zoom button with this
option enabled will reset it to the values set in this form, if Custom setting is
selected.
Y View Sets the maximum and minimum values visible in the Y axis. They can be
manually defined by the user, or just let the graph adjust to the data when
Auto option is enabled. Note that clicking on the Reset zoom button with this
option enabled will reset it to the values set in this form, if Custom setting is
selected.
Field Description
Remove DC Subtract mean value (DC component) from waveform points.
Component
Max Selects the maximum number of sample points to show per machine rotating
samples cycle (in between two tachometer edges) when some type of Synchronous
per cycle View is selected.
