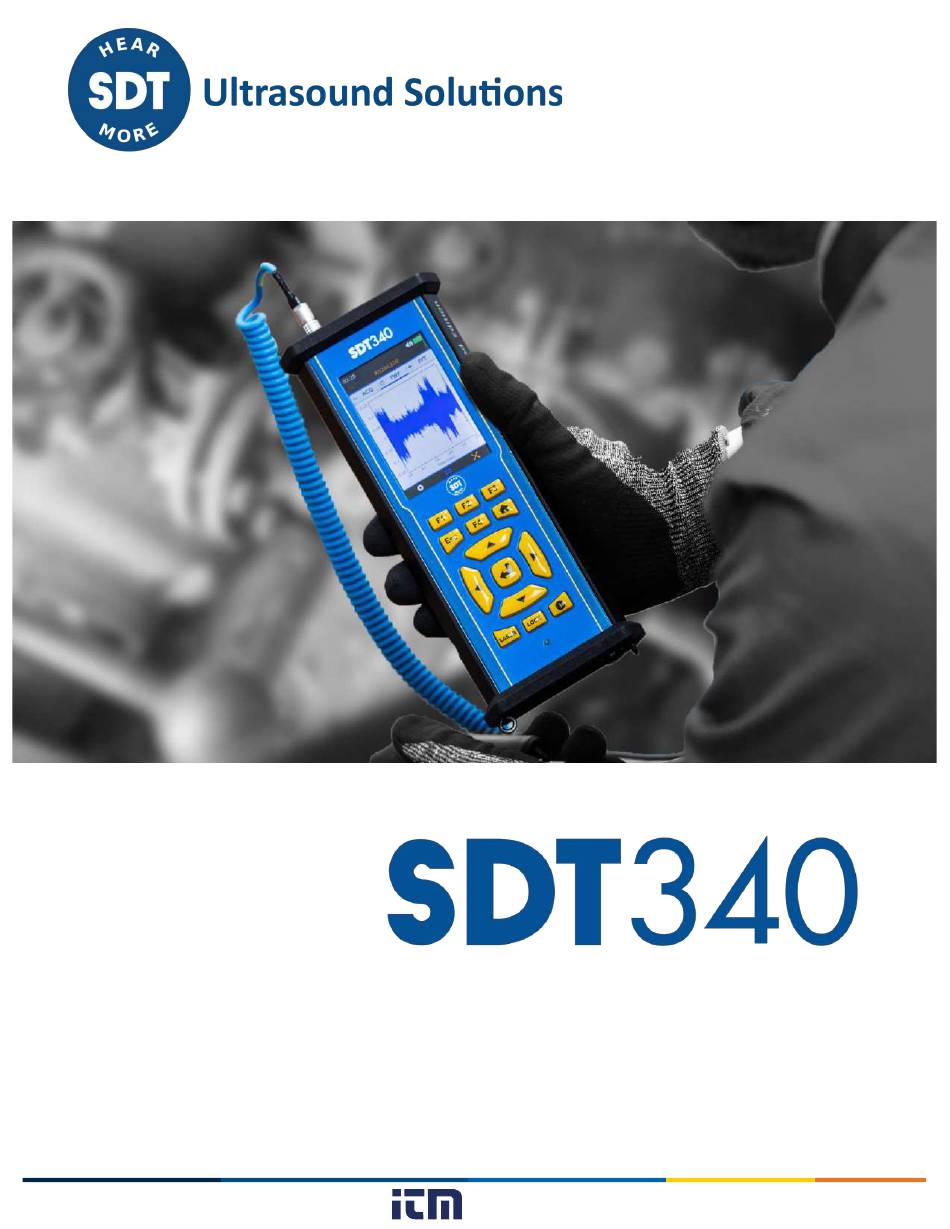

- Page 1 Asset Health Evaluation Meter USER MANUAL Version 7 – 2021 © SDT International. All rights reserved. Specifications are subject to change without notice. 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
SDT340 User Manual Table of Contents Safety ........................... 3 Caution ..........................3 CE compliance ........................4 Introduction ......................... 5 Unpack ..........................5 Battery ..........................5 Controls and connections ...................... 8 7.1. Power on ........................8 7.2. Sleep Mode ....................... 9 7.3. -
Page 3: Safety
Lifetime Warranty. Contact SDT Ultrasound Solutions or an SDT Authorized Service Provider. The permissible ambient temperature range for the operation of the SDT340 is -15 °C to +60 °C (5 °F to 140 °F). Relative humidity must be less than 90%, non-condensing. -
Page 4: Ce Compliance
The audio output paired with the Peltor headsets supplied by SDT, having the references FUHDPH-1 and FUHDPH-2 delivers a maximum sound pressure level of 79 dB. SDT makes an additional safety guarantee to our users. When connecting a sensor, or selecting/changing sensors, SDT instruments self-adjust the volume to a default, maximum sound pressure level of 58 dB typical. -
Page 5: Introduction
• and spectrum Bluetooth for wireless audio • streaming Signal play back 5. Unpack The items that follow are included in your purchase of the SDT340 kit. Unpack and inspect them. • • SDT340 Battery pack • • Wired headset Battery charger, power cord, EU, US •... - Page 6 SDT340 User Manual • When the LED is continuously lit green, the battery is fully charged. ❷ ❸ ❹ ❷ ❶ ❶ Power supply connector ❷ Force battery charge location ❸ Battery pack placed on the docking station ❹ Docking Station LED...
- Page 7 The LED flashes red – the docking station detect an abnormal current consumption or an abnormal temperature. Disconnect and then reconnect the power supply from the main to reset the docking station. The SDT340 autonomy is typically 8 hours for a fully charged battery pack and the recharge time is about 7 hours. 1.800.561.8187 information@itm.com...
-
Page 8: Controls And Connections

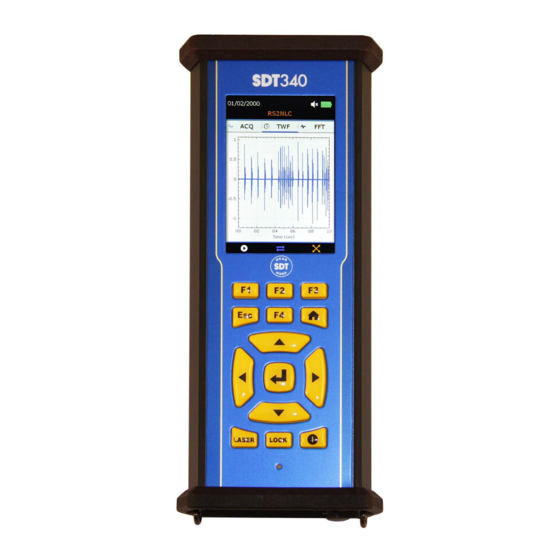

SDT340 User Manual 7. Controls and connections ❶ Display ❷ F1 to F4. Their respective function is indicated in the bottom of the display ❶ ❸ Escape for stopping a signal acquisition and going back to the previous menu through setting screens ❹... -
Page 9: Sleep Mode
7.5. Plug & Unplug a Sensor SDT 340 has 2 input ports with 7-pole LEMO connectors for external sensors. The channel with the red collar is dedicated to vibration measurement as the black is reserved for ultrasound. LEMO connectors have a sprung-loaded knurled barrel and mechanical polarization to go only in one way round. -
Page 10: Data Collection Modes
On top left, date and time are scrolling ❾. On the top right, laser (when activated), USB (when the SDT340 is connected to a computer), wireless headset (when paired), wired headset (when connected) and battery remaining charge icons are displayed ❿. -
Page 11: Proceed With Ultrasound Signal Acquisition In Free Mode
SDT340 User Manual 10. Proceed with ultrasound signal acquisition in Free Mode ❶ Sensor in use ① ❷ Amplification ❸ Amplification adjustment indicator ❹ Running RMS ❸ ❾ ❷ ❺ Running Max RMS ❻ Running Peak ❼ Running Crest Factor ❹... - Page 12 SDT340 User Manual ❶ Sample rate ❷ Acquisition time ❸ residual Filter (audible) ❹ Mixer ❺ Selected field surrounded by a blue line ❷ ❻ FFT or FFT Envelope ❺ ❶ ❸ ❹ ❻ Figure 10-2 Ultrasound Measurement Settings Press Enter to trigger the acquisition or F3 to first modify the measurement settings as the sample rate ❶...
-
Page 13: St Tab For Ultrasound Readings
SDT340 User Manual 11. ST tab for ultrasound readings At the end of the acquisition, the device displays the ultrasound condition indicator tab ST. There, the final RMS ❶, final Max RMS ❷, final Peak ❸ and Crest factor ❹... - Page 14 SDT340 User Manual ❶ Sensor in use and bandwidth ❷ Running Velocity RMS ① ❸ Running Acceleration RMS ❹ Running Peak Acceleration ❼ ❺ Running Acceleration Crest Factor ❻ F3 for entering the settings menu ❼ Acquisition time ❷ ❸...
-
Page 15: St Tab For Vibration Readings
SDT340 User Manual At the end of the acquisition time, you have access to the 4 condition indicators from the tab ST ❶, the time signal from the tab TIME ❷ and the spectrum from the tab FFT ❸. The active tab is blue underlined ❹. -
Page 16: Display Ultrasound And Vibration Time Signal
SDT340 User Manual 14. Display Ultrasound and Vibration Time Signal At the end of the signal acquisition and from the ST tab, press F2 to display the time signal. The TIME ❶ is now active. With Up and Down navigation keys zoom in and out a portion of the signal from a time scale of 10 seconds ❷... -
Page 17: Proceed With Temperature Measurement In Free Mode
SDT340 User Manual With Up and Down navigation keys zoom in and out a portion of the signal. With Left and Right navigation keys, navigate between the different portions of the spectrum. Press F1 ❷ to display the list of the 10 highest values and one more time to go back to the time signal view. -
Page 18: Tree Navigation And Data Storage In Free Mode
0.95. SDT defines a default value between [0.95-1], customizable, that is close to the most common materials encountered in the industrial field. In any event, since most of... - Page 19 10 Hz and 1 kHz). Figure 16-1: example of tree structure The SDT340 features an intuitive and quick way to navigate, going up and going down, by hierarchical levels of the tree structure. The list of the nodes of the selected level is placed in the upper section. Use the Right key to go up the higher level, the parent (if exists).
- Page 20 SDT340 User Manual ❶ ❺ ❸ ❹ ❷ ❸ After freezing the measurement and pressing Enter, My Factory is selected in the upper section ❶. The lower section ❷ contains the lower-level nodes of My Factory, Unit 1, Unit 2 and Unit 3.
-
Page 21: Rotational Speed
SDT340 User Manual 18. Rotational speed Before using the tachometer, a reflective band must be stick on the rotating part to perform a measurement. ② ❶ ❶ Running RPM/CPM ❷ Laser Icon activated Figure 17: Rotational speed From the Home screen, select the RPM icon and press Enter. The running RPM screen is displayed (Figure 17). - Page 22 SDT340 User Manual ❶ System info setting ❷ Language setting ❸ Bluetooth setting ① ❹ Date and hour setting ❷ ❺ Brightness setting ❸ ❻ Auto power down setting ❼ Keyboard setting ❹ ❽ Metric imperial setting ❺ ❾ Network setting ❻...
-
Page 23: System Info
SDT340 User Manual 19.1. System info ❶ Device info ❷ License info ❸ Calibration info ① ❹ Battery info ❺ Hardware info ❷ ❻ Software info ❸ ❼ Database info ❽ Certifications’ info ❹ ❾ Manufacturer Info ❺ ❻ ❼... -
Page 24: License Info
SDT340 User Manual With the Up and Down navigation keys highlight the desired settings and confirm your choice with Enter. Press the button ESC to display the previous screen. 19.1.2. License info ❶ License level ❷ License option ❶ ❷... -
Page 25: Battery Info
SDT340 User Manual 19.1.4. Battery info ❶ Current capacity (in %) ❷ Battery serial ID ❸ Battery serial number ❶ ❹ nominal capacity (in mAH) ❷ ❺ Number of charge/discharge cycles ❻ Battery temperature (in °C or °F) ❸ ❼... -
Page 26: Hardware Info
SDT340 User Manual 19.1.5. Hardware info ❶ CPU frequency ❷ RAM capacity (in MB). ❸ Internal memory (in MB) ❶ ❹ Internal available memory (in MB) ❺ External memory (in GB) ❷ ❻ External available memory (in GB) ❼ Speed Ethernet MAC (in Mbps) ❸... -
Page 27: Database
SDT340 User Manual With the Up and Down navigation keys highlight the desired settings and confirm your choice with Enter. Press the button ESC to display the previous screen. 19.1.7. Database ❶ SQLite version ❷ Databases ❶ ❷ ❷ ❷... -
Page 28: Manufacturer Info
SDT340 User Manual 19.1.9. Manufacturer info Figure 18-1-9: Manufacturer info 19.2. Language With the Up and Down navigation keys highlight the desired settings and confirm your choice with Enter. Press the button ESC to display the previous screen. Figure 18-2: Language 1.800.561.8187... -
Page 29: Bluetooth
Press ❷ to enable the Bluetooth headset module. Switch on the headset. The headset must emit a blue flashing light. Press F3 to pair ❻ the SDT340 with the headset. 19.4. Date and time format ❶ Locale date and time ❷... -
Page 30: Brightness
The LED flashes red – the docking station detect an abnormal current consumption or an abnormal temperature. Disconnect and then reconnect the power supply from the main to reset the docking station. The SDT340 autonomy is typically 8 hours for a fully charged battery pack and the recharge time is about 7 hours. 1.800.561.8187 information@itm.com... -
Page 31: Theme
SDT340 User Manual network settings information will be automatically listed on the SDT340 screen if automatic has been selected and if not, enter the settings information must be selected manually. 19.7. Theme ❶ Choose by default ① Figure 18-7: Theme You can use this feature to change the appearance of your screen. -
Page 32: Warranty
SDT340 unit or its accessories, bodily harm, loss of time, financial or material loss or any other indirect or consequential loss arising out of the use, or inability to use this product, even when it has been warned of possible damages. -
Page 33: Copyright And Use Of Ip
The audio output paired with the Peltor headsets supplied by SDT, having the references FUHDPH-1 and FUHDPH-2 delivers a maximum sound pressure level of 79 dB. SDT makes an additional safety guarantee to our users. When connecting a sensor, or selecting/changing sensors, SDT instruments self-adjust the volume to a default, maximum sound pressure level of 58 dB typical.
