Line Color Selects the color of the trend line for the particular data source or
measurement.
Point Selects the point of the measurement for that source from the pull-down
list.
Param Selects the parameter or measurement to be plotted for that source from
the pull-down list.
Field Description

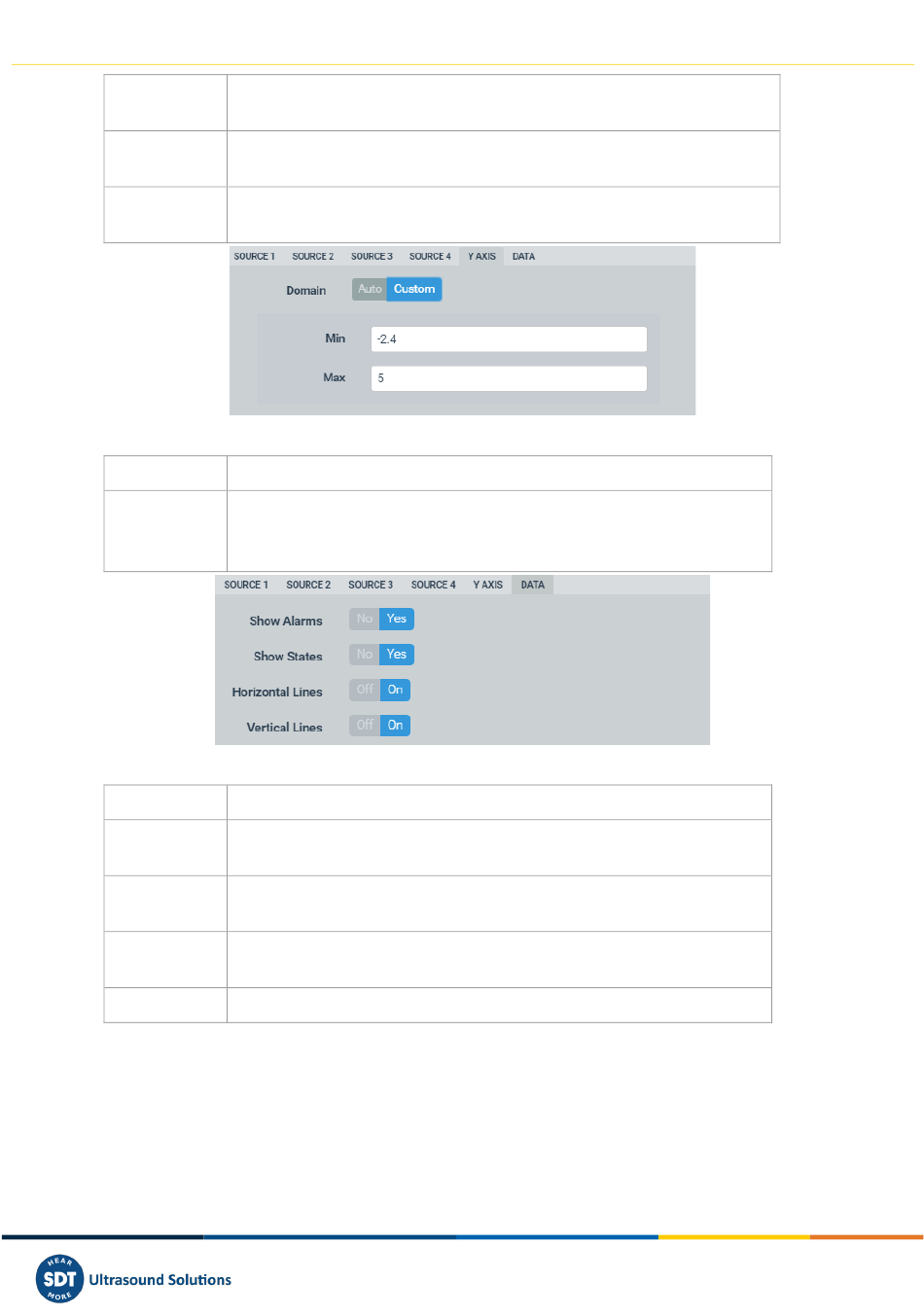

Domain Sets the maximum and minimum values visible in the Y axis. Note that
clicking on the Reset zoom button with this the Custom option enabled
will reset it to the values set in this form.
Field Description
Show Alarms Displays horizontal lines on the graph indicating alarm levels
corresponding to the parameter that has the focus.
Show States Displays a shadowed background and with information about the state of
the machine at each time period.
Horizontal Shows or hides horizontal grid lines on the Widget.
Lines
Vertical Lines Shows or hides vertical grid lines on the Widget.
13.7.2

Display

The following picture shows the trend Widget and its components.
Vigilant User Manual
153/210
