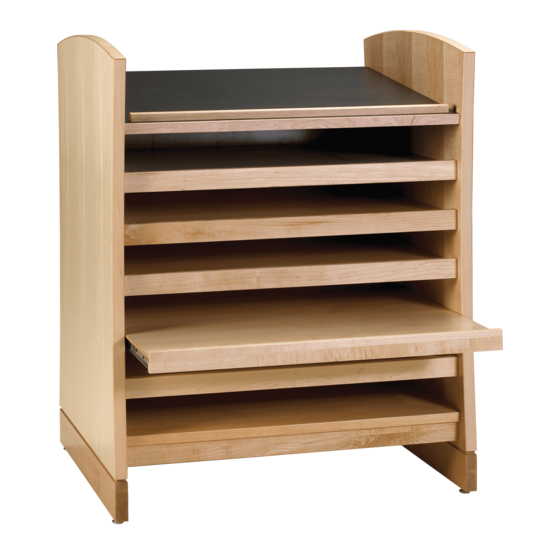

KI CrossRoads Newspaper Display Unit Assembly Instructions

Figure 2
Base Assembly
Figure 2
Top Asm.eps
Top Assembly
Flat Washer
and Hex Nut
1
4 / " Hex Head Bolts
2
with Lock Washers
and Flat Washers
Left End Panel
Figure 4
1330 Bellevue Street • P .O. Box 8100 • Green Bay, WI 54308-8100 • Tel 1-800-424-2432 • www.ki.com
Figure 4
CrossRoads
Base Assembly
Figure 1
Left End Panel
Top
Assembly
2" Hex Head Bolts
with Lock Washers
and Flat Washers
Figure 1
Top Assembly
Base Assembly.eps
Left End Panel
Figure 3
2" Hex Head Bolts
with Lock Washers
and Flat Washers
Shared End Panel
Glides
© 2008 KI All Rights Reserved • Litho in USA. • Code KI-61564R3/TMI/PDF/1209
Assembly Instructions
® Newspaper Display Unit
December 2009
Left End Panel
2" Hex Head Bolts
with Lock Washers
and Flat Washers
2" Hex Head Bolts
with Lock Washers
and Flat Washers
Right End Panel
Glides
Right End Panel
Rt. End Pnl Install.eps
Base Assembly
Figure 3
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must
be tightened securely and must be checked periodically
after assembly. Failure to assemble properly, or to secure
parts may result in assembly failure and injury.

Tools Required:

• #2 Phillips screwdriver
• 1 / " socket
2
• Socket wrench

Hardware Included:

• #8 x 5 / " screws
8
• #8 x 1 1 / " screws
4
• #10 x 1 1 / " pan head screws
2
• 5 / " x 2" hex head bolt
16
• / " x 4 / " hex head bolt
5 1
16 2
• 5 / " lock washer
16
• 5 / " flat washer
16
• 5 / " hex nut
16
• Metal pegs

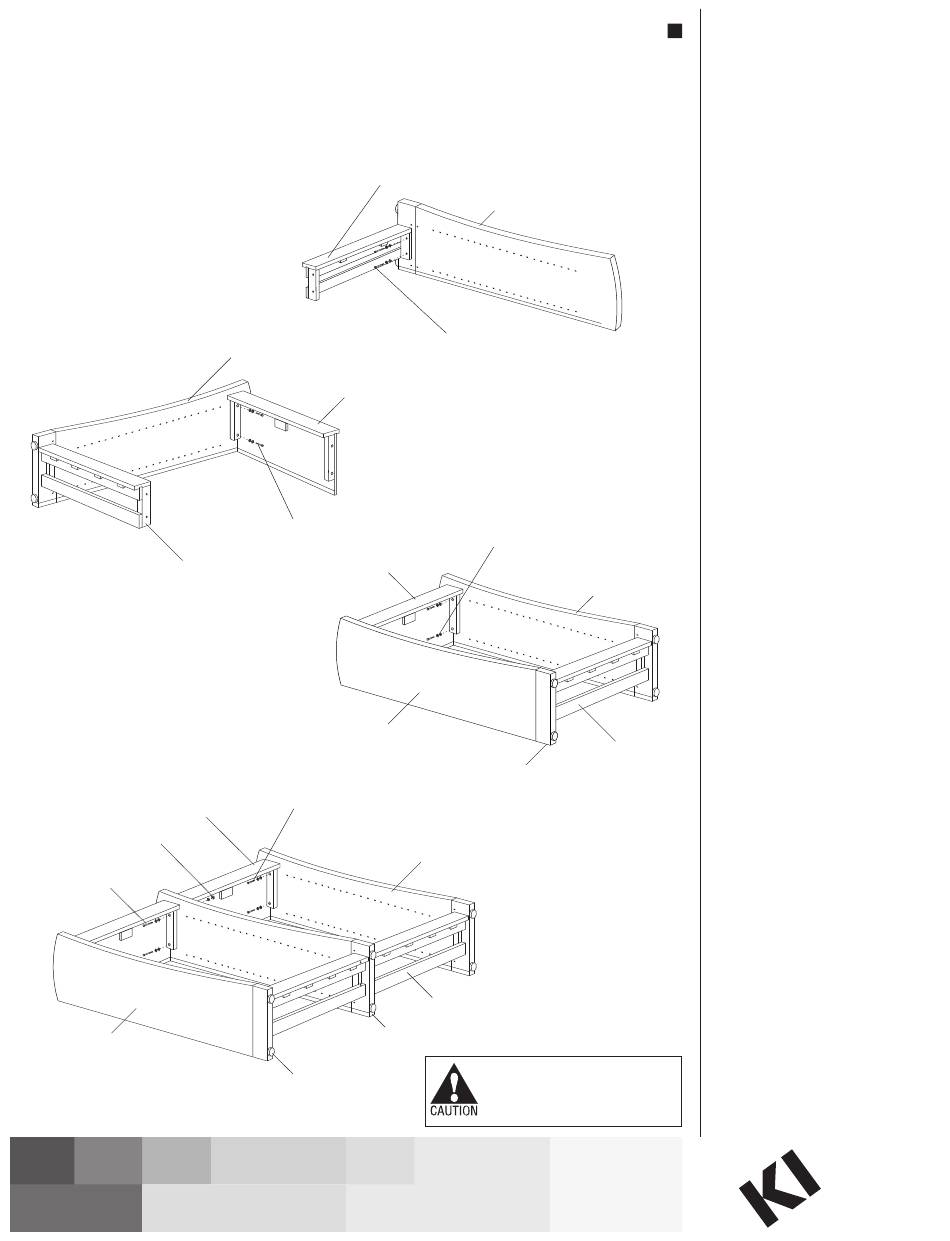

1. Set back edge of left end panel on flat
surface (holes to inside – if it's a
curved end panel make sure the
curved edge is up).
2. Align the side holes in the base
assembly with the lower holes in the
left end panel. Insert 2" hex head bolts
with lock washers and flat washers into
the base and end panel (Figure 1).
3. Align the side holes in the top
assembly with the upper holes in the
left end panel (Figure 2). Make sure
the faceplate on the top assembly is to
the front and that the back panel
groove is to the back. Insert 2" hex
head bolts with lock washers and flat
washers into the top assembly and
end panel. Tighten.
4. For single starter unit (stand-alone)
and final end panel for connecting
units: Take the right end panel (holes
to inside) and align the side with the
holes in both the base and the top
assembly (Figure 3). Insert 2" hex
head bolts with lock washers and flat
Base Assembly
washers into the base and top
assembly. Tighten.
5. For adder units (connecting) – Align
the side holes in the shared panel
(holes both sides) with the holes in
both the base assembly and the top
assembly. Insert 4
with lock washers, flat washers and
nut into the base assembly. Do not
tighten (Figure 4).
6. Align the side holes in both the base
and top assembly with the side holes
in the right end panel. Insert 2" hex
head bolts with lock washers and flat
washers into base assembly and top
assembly (Figure 4).
7. Tighten all 2" and 4
1 / " hex head bolts
2
1 / " hex head bolts.
2
