KI Lancaster Auditorium Seating Disassembly Instructions

KI Lancaster Auditorium Seating Disassembly Instructions

Hide thumbs Also See for Lancaster Auditorium Seating:

Advertisement

Disassembly Instructions

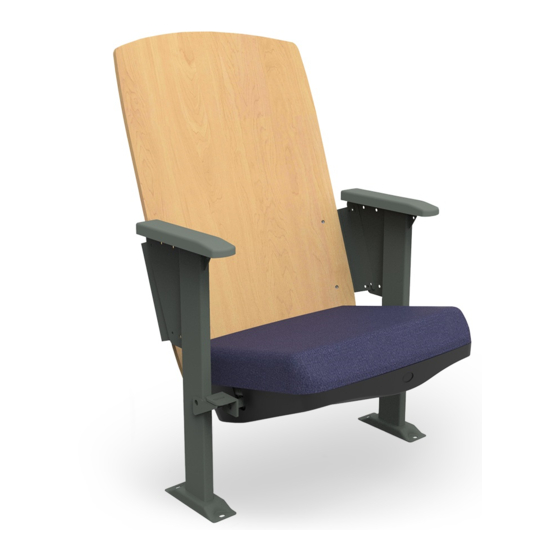

Lancaster Auditorium Seating

Material Type:

A. Steel
B
A
Required
Tools
Gloves
KI · 1330 Bellevue Street · P.O. Box 8100 · Green Bay, WI 54308-8100 · 1-800-424-2432 · www.ki.com
B. Plastic
All fasteners not explicitly tagged or
shown are Material Type A: Steel
Safety Glasses
Philips Screwdriver

Procedure:

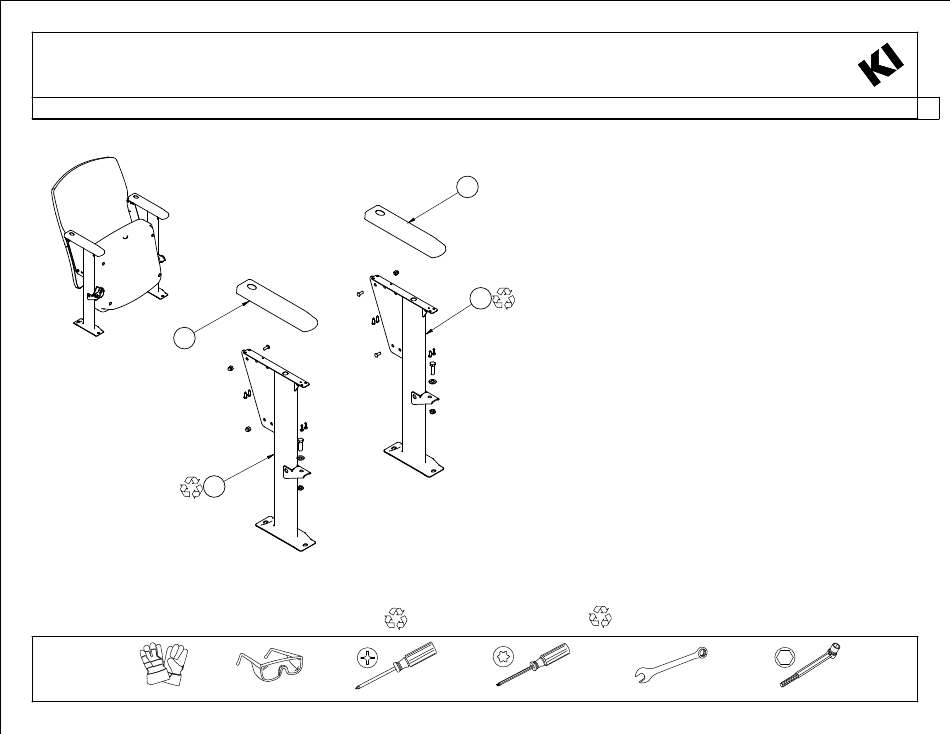

1. Remove the screw, washer and nut holding each side of the seat
to the seat support column and remove the seat assembly.
B
2. Remove the screws and nuts holding the backrest onto the back
supports and remove the backrest assembly.
3. Remove the screws holding the arm cap onto the top of the seat
support column and remove the arm cap.
4. Remove the nuts holding the column onto the floor and remove
the column.
A
(continued next page)

General Notes:

1. Disassembly time: 15-30 minutes
2. This procedure assumes basic familiarity with hand tools and
furniture terminology: no specialized training is required
3. All materials removed and disassembled shall be sorted and
segregated with like materials and disposed of or recycled
according to recycling availability or waste acceptance
4. For items to be recycled, refer to KI's End of Life Recycling
Matrix and KI's End of Life Recovery Options Matrix, available
at www.ki.com
Combination Wrench
Torx Screwdriver
Hex Socket Wrench
P0033-0061
Rev. 0
Page 1 of 2
