KI Pirouette Assembly Instructions Manual

tabletop

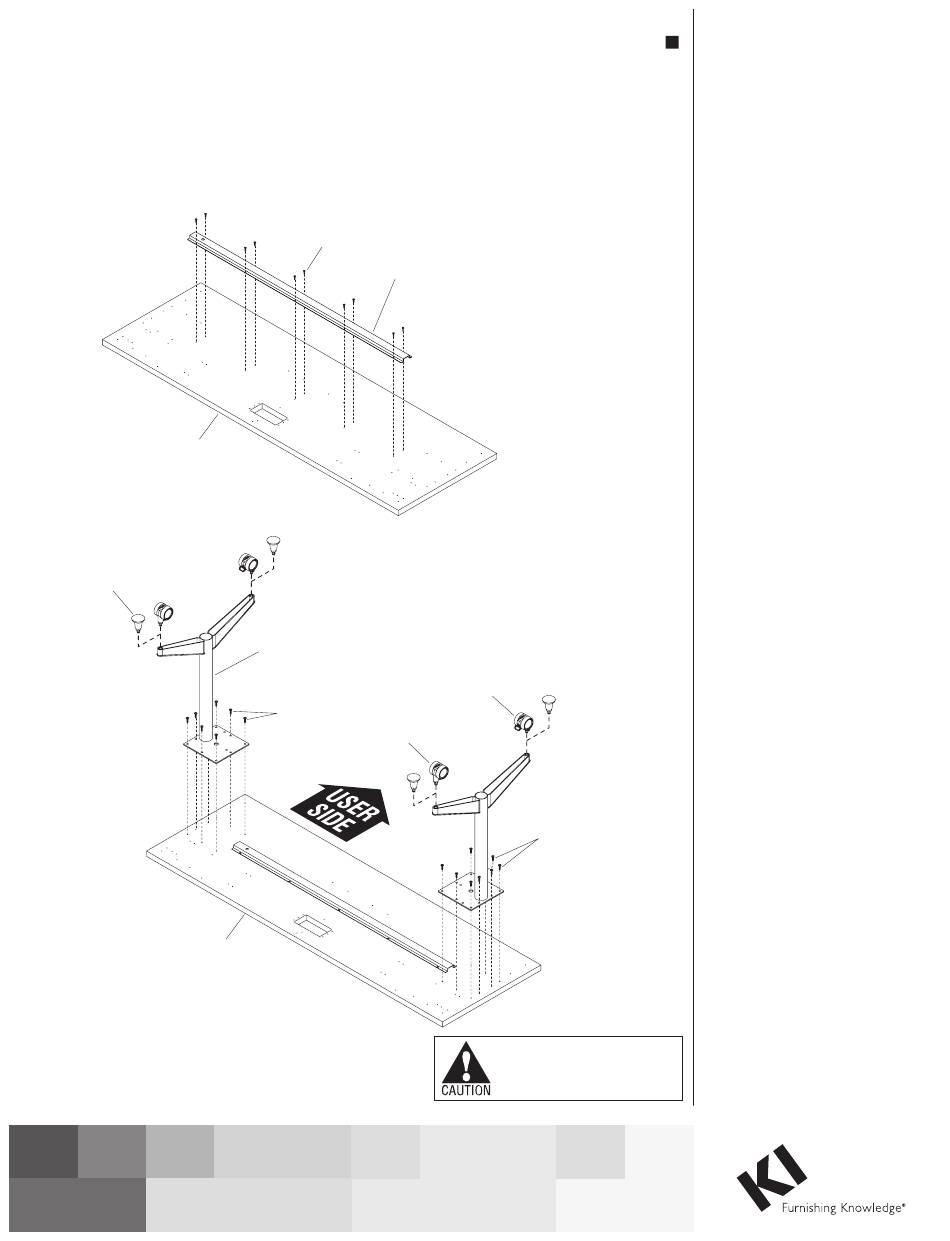

Figure 1
glide
fixed
table leg
#12 x 1"
PPH screws
tabletop
Figure 2
Assembly Instructions
Fixed-Base with Activ8
#10 x / " 3
4
PPH screw
worksurface
stiffener channel
Note: Longer tables require
worksurface stiffener channels.
See step 2 for details.
(locking)
caster
(non-locking)

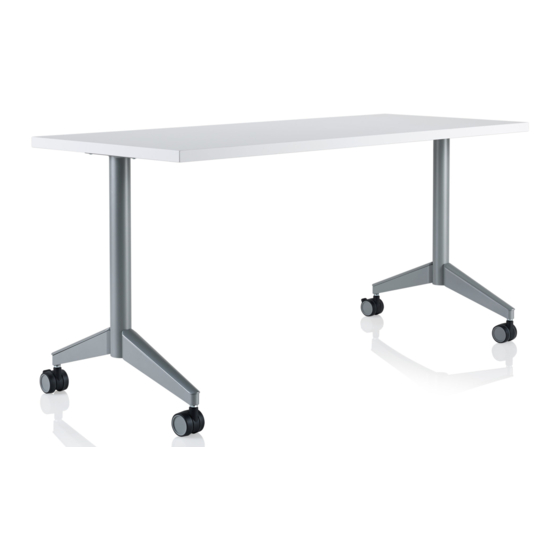

Pirouette Tables
™
Electrical
®
October 2017
caster
#12 x 1"
PPH screws
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Fixed Legs & Worksurface
Stiffener to Tabletop Installation
Note: If Pirouette Table Assembly
has a 36" x 84"-96" tabletop, skip
page 1 and reference "Fixed Legs to
36" x 84"-96" Tabletop Installation"
on the next page.
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place tabletop upside down on a
soft, protective surface. To insure
stability, the following tables require
a worksurface stiffener channel
installed to the underside of the
tabletop:
• 72" Rectangular Training Tables
• 84" Conference Tables
• 84" Double Chevron Tables
• 96" Collaborative Tables
3. If tabletop requires a stiffener,
position stiffener channel onto the
center of the tabletop underside,
aligning the stiffener mounting holes
with the pre-drilled holes in the table.
Secure stiffener to top using
#10 x / " screws through all stiffener
3
4
mounting holes provided (Figure 1).
4. Position each fixed table leg over
pre-drilled mounting holes in the
underside of the table as illustrated.
Secure the table legs to the top using
eight #12 x 1" screws through each
base (Figure 2).
5. Locking and non-locking casters
are provided. Locking casters are to
be installed to the front, user-side
of each leg and non-locking casters
should be installed to the rear of
each leg. Use a 19mm open end
wrench to tighten casters to the foot
of each leg (Figure 2).
6. To attach glides, thread stem into
bottom of leg by hand (Figure 2).
