KI Engage Task Chair Disassembly Instructions

Disassembly Instructions

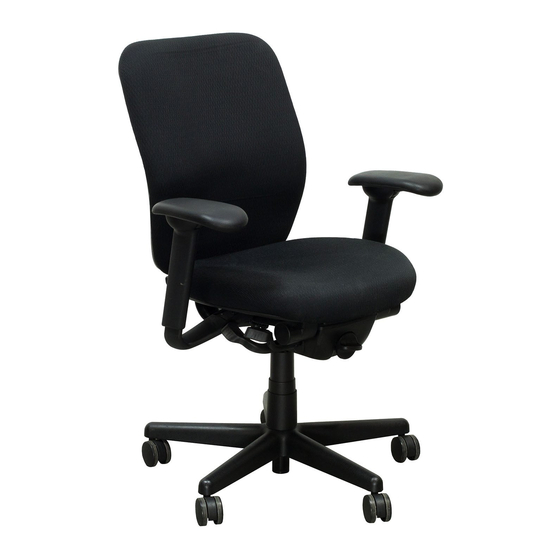

Engage Task Chair, Engage Stool, Piretti 2000 Task Chair, Piretti 2000 Stool

Material Type:

A. Steel
See Sheet 2
See Sheet 3
B
All fasteners not explicitly tagged
are Material Type A: Steel
Required
Tools
Gloves Safety Glasses
KI · 1330 Bellevue Street · P.O. Box 8100 · Green Bay, WI 54308-8100 · 1-800-424-2432 · www.ki.com
B. Plastic C. Foam
B
B
A
Channel Lock Pliers Philips Screwdriver
D. Fabric

Procedure:

1. Pry off the rear shrouds from the backrest.
2. Pry the Back Shroud from the Back Assembly.
3. Remove the screws holding the backrest to the steel backrest
support and remove the backrest.
(continued next page)
B
C
D

General Notes:

1. Disassembly time: 30-45 minutes
2. This procedure assumes basic familiarity with hand tools and
furniture terminology: no specialized training is required
3. All materials removed and disassembled shall be sorted and
segregated with like materials and disposed of or recycled
according to recycling availability or waste acceptance
4. For items to be recycled, refer to KI's End of Life Recycling
Matrix and KI's End of Life Recovery Options Matrix, available
at www.ki.com
Pry Bar
Torx Screwdriver Rubber Mallet
P0033-0080 Rev. 1 Page 1 of 3
