Assembly Instructions

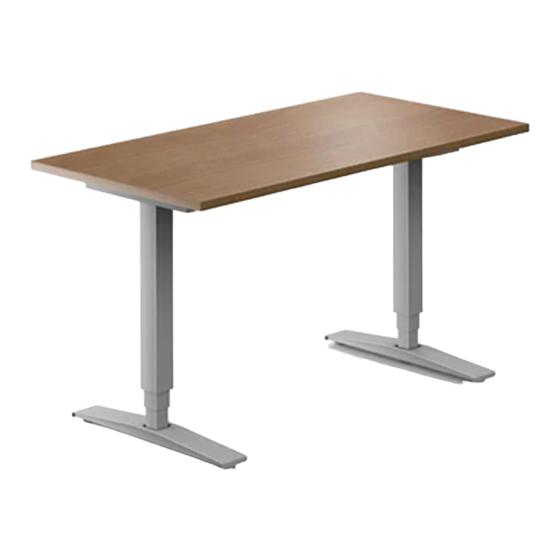

WorkUp Adjustable Table
Model CR
November 2016
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tools Required
#3 Phillips Screwdriver
5mm Hex Key
Note: Before discarding any packaging
confirm all components received
against the packing list. Table assembly
should be done on a clean flat floor.
Note: When tightening the M8 screws,
first twist in all four screws "finger
tight". Then tighten the screws one
quarter turn at a time using a diagonal
tightening pattern as shown in Detail A.
Repeat the diagonal pattern until all four
screws are tight (Detail A & Figure 1).

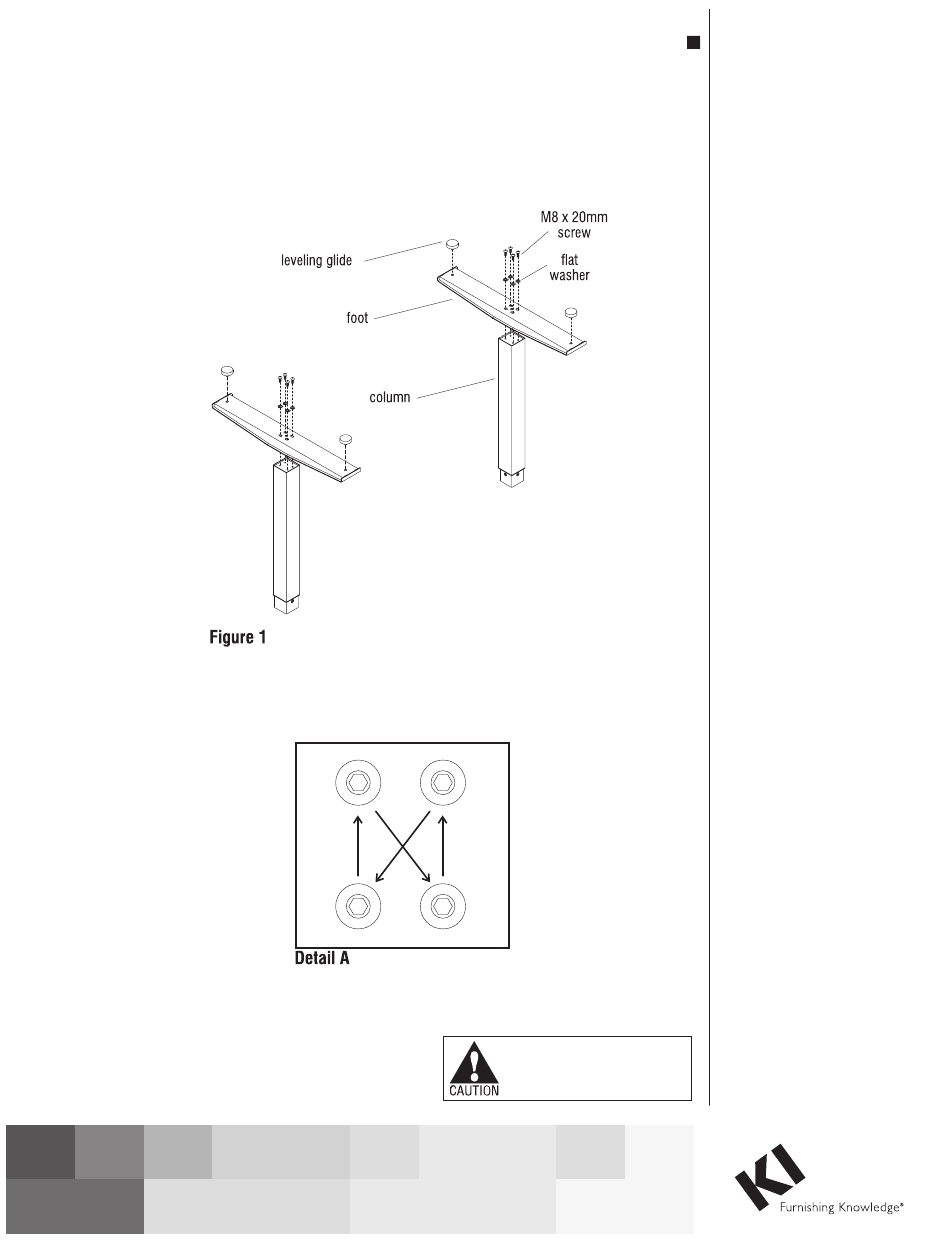

Assemble Feet To Columns
1. Set the column on end with the
smaller (inner) square tube on the
floor. The threaded holes visible
on the end of the column will be in
a rectangular (not square) pattern
(Figure 1).
2. Place the foot over the column
end so the column fits into the
square hole in the foot. The slotted
holes in the foot should line up
with the four holes in the column
end. If not the foot needs to be
removed and repositioned at 90
degrees (Figure 1).
3. Attach the foot using four
M8 x 20mm screws and four
8mm flat washers, tightening
each screw one quarter turn
at a time in a diagonal pattern
until all four screws are tight
(Figure 1 & Detail A).
4. Thread leveling glides into the
holes at the ends of the foot
(Figure 1).
Note: If the roller foot option
was purchased, one foot will have
pre-assembled rollers.
5. Repeat steps 1 through 4 for the
second foot and column (Figure 1).
