SimpliFire SF-FORMAT36 Owner's Manual page 13

Mounting Hooks Pointed

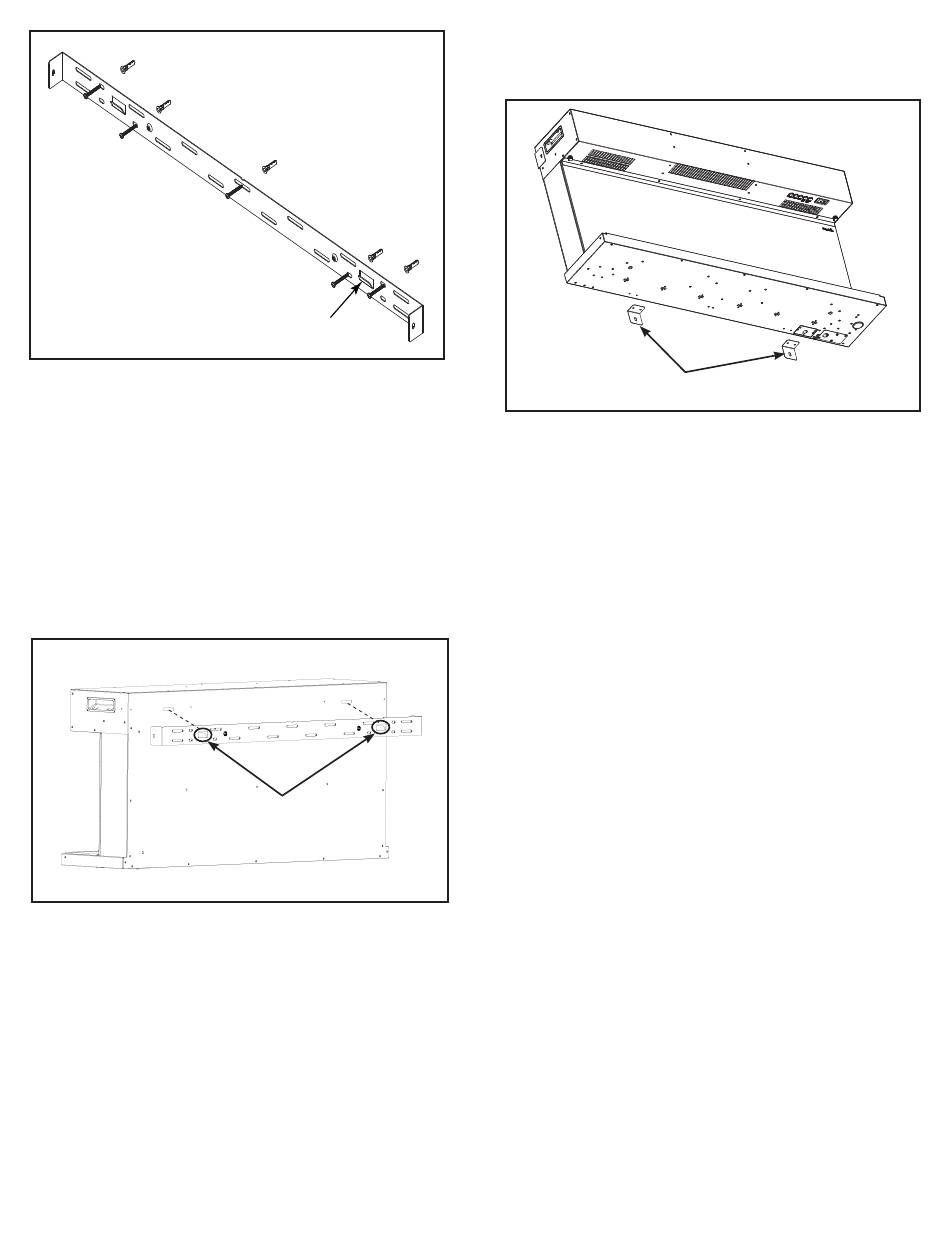

Figure 4.7 Bracket Attachment
Appliance Installation
1. Hang appliance on the mounting bracket.
2. Align the slots on the back of the appliance with the
tabs on the bracket.
3. Hang the appliance and pull down to ensure the tabs
are fully engaged. See Figure 4.8.
MOUNTING BRACKET TABS
Figure 4.8 Attaching Appliance to Bracket
Up
SimpliFire • SF-FORMAT36 • 2042-950 Rev. B • 10/21
4. Install two (2) provided 'L-shaped' brackets to the
bottom of the appliance using four (4) provided ST4x8
screws. See Figure 4.9.
L-SHAPED BRACKETS
Figure 4.9 L-Shaped Bracket Location
With the L-brackets installed, mark the mounting hole
locations. Follow the steps to install the appropriate
fastener to secure the L-Bracket to the wall.
• If a wood or metal framing member exists, the ST6X50
screw can be installed directly into the structural
member.
• If a mounting hole does not align with a structural framing
member, a wall board toggle-bolt anchor must be used.
- Remove the appliance from the wall mount bracket.
- Follow the toggle bolt installation steps as described
for the wall mount bracket.
• If installing on a masonry wall.
- Remove the appliance from the wall mount bracket.
- Follow the ST6x50 screw and anchor method
for masonry wall as described for the wall mount
bracket.
Re- mount the appliance to the wall mount bracket.
1. Hang appliance on the mounting bracket.
2. Align the slots on the back of the appliance with the
tabs on the bracket.
3. Hang the appliance and pull down to ensure the hooks
are fully engaged. See Figure 4.8.
4. Secure the bracket to the sides of the appliance using
the two (2) ST4x6 screws retained when removing the
bracket from the appliance.
5. Secure the bottom L-brackets to the wall with
the appropriate fasteners and anchor for the wall
construction (masonry anchor or toggle bolt).
