SimpliFire SF-FORMAT36 Owner's Manual page 12

• The toggle-bolt anchors are provided to accomodate
the required anchor points based on the appliance.
Use of toggle bolt anchors requires drywall thick-
ness of minimum 1/2 in. and drilled holes size of 1/2
in. diameter.
• Insert the bolt through the front side of the mounting
bracket and thread the toggle onto it from the rear of
the bracket. See Figure 4.4.
• Fold the toggle wings flush against the bolt and push
them through a drilled hole until the toggle wings
expand open on the other side. See Figure 4.5.
• Pull back on the bolt and tighten. See Figure 4.5.
Note: This product cannot be installed on a wall
sheathed with drywall less than 1/2 in. thick, unless
all four (4) anchor points in the mounting bracket
align with structural framing members.
NOTICE: Minimum four (4) screws and/or toggle bolt
anchors are required for wall mounting.
WARNING! Risk of Damage or Personal Injury! Al-
lowable pull-out and shear strength are 25% of ultimate
values or less, as required by building authorities.

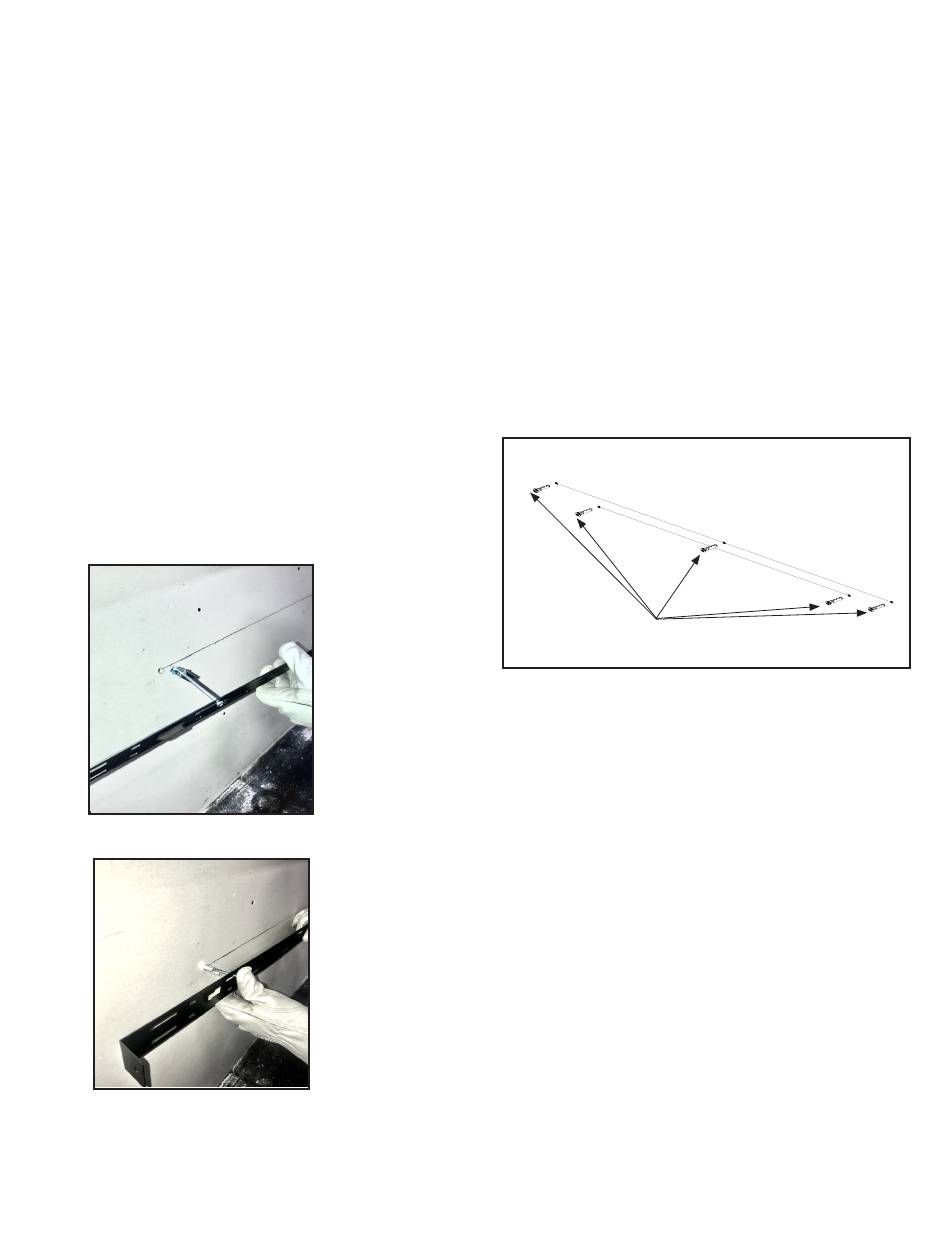

Figure 4.4 Toggle Bolt Installation through Mounting Bracket
Figure 4.5 Installing Anchors in Hollow Wall
12
SimpliFire • SF-FORMAT36 • 2042-950 Rev. B • 10/21
Masonry Wall
• Locate the mounting bracket on the wall in the
desired location of the appliance. Level the bracket,
then mark its location on the wall, including a mark-
ing for each of the fastener holes in the bracket.
NOTICE: Minimum four (4) screws and anchors are
required for MASONRY wall mounting.
• In the marked locations, drill 5/16 in. diameter x 2 in.
deep holes. See Figure 4.6.
• Insert the provided wall anchors into the holes.
• Gently tap the anchors with a hammer until they are
flush with the wall surface.
• With mounting hooks pointed up, attach the bracket
to the masonry anchors with ST6X50 screws. See
Figure 4.7.
Masonry Anchors
Figure 4.6 Masonry Anchor Placement
WARNING! Risk of Damage or Personal Injury! Do
not use supplied masonry anchors on hollow walls,
sheathed with wood, gypsum wallboard, drywall or other
materials.
Wall
