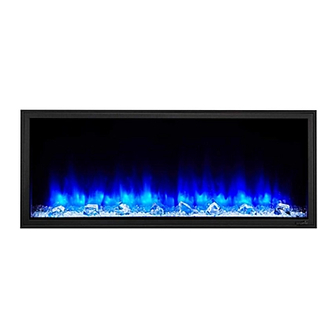

SimpliFire SF-SC43-BK Service Manual

Glass Front, Media, LED Light Boards (Ember Bed and Flame), Remote Receiver,
Rotisseire, Motor, Control Board, Blower/Heater, Reflective Side Panels & Mounting Bracket
Model: SF-SC43-BK, SF-SC55-BK, SF-SC78-BK
Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
NOTICE! DO NOT discard any hardware while
servicing. It may be reused.
WARNING! Risk of Personal Injury or Property Dam-
age! Failure to follow instructions below may result in
damage to the equipment and / or may expose the user
to the risk of fire, serious injury, illness or death.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
WARNING! Risk of Shock! Always turn off the circuit
breaker before moving or servicing.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Needle-nose pliers
Hammer
Gloves
Level
Magnetic Phillips screwdriver
Safety glasses
Drill
Flat blade screwdriver
Phillips Tip-Bit socket and ratchet (for Blower/Heater)
SimpliFire • SF-SC43-BK, SF-SC55-BK, SF-SC78-BK Service Manual • 2041-960 Rev. B • 9/19
SERVICE MANUAL
- Instructions -
CAUTION! Two adults recommended for the removal
or installation of glass front. Use caution when han-
dling glass. Failure to do so could result in personal injury
or property damage.
Important service
Front Replacement
Remove Front and Trim Assembly
1. Pull firmly on the top edge of the Clean Face Front
2. To re-install, align the front with the opening around
Trim Ring Replacement
1.
2.
3.
4.

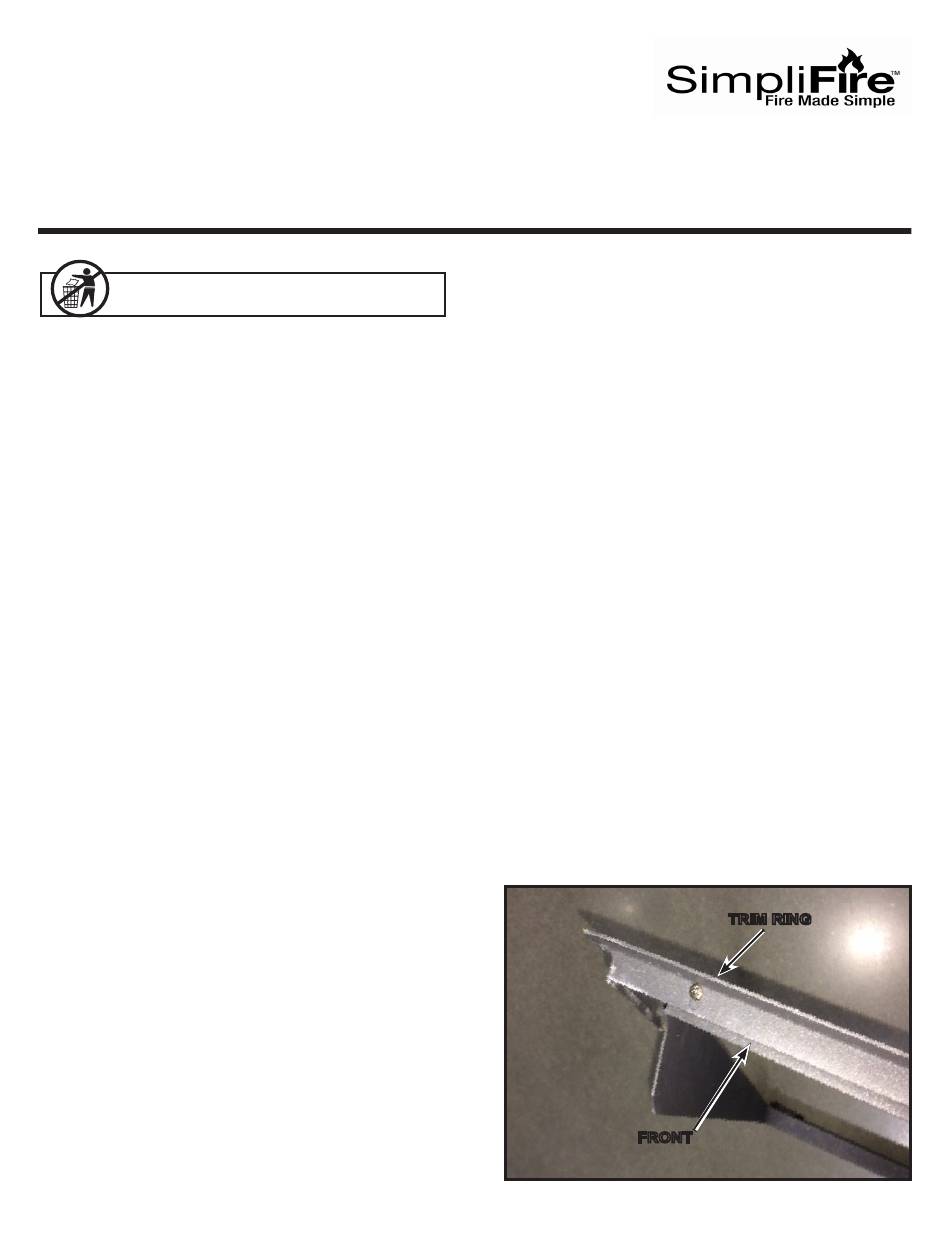

Figure 1. Trim Ring / Front
until it rotates away from opening of the appliance,
then lift off of the appliance. See Figure 1.
the appliance and press firmly onto appliance until
the front is flush with wall and magnet engage with
appliance.
Remove the Front. See Front replacement instruc-
tion.
Remove the Trim Ring from the front by remov-
ing the screws that attach the two parts. See Figure
1. Carefully disengage the Trim Ring and remove it
from the Front.
With the new Trim Ring set on the floor face down,
set the front inside the Trim Ring face down. Re-
install the screws. See Figure 1.
Re-install the Clean Face Front.
FRONT
TRIM RING
1
