SimpliFire SF-CHAF-36 Installation Instructions

For Models: SF-INC36
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
Note: To avoid potential damage to hearth pad or flooring,
protect area in front of fireplace by laying cardboard or
blanket down.

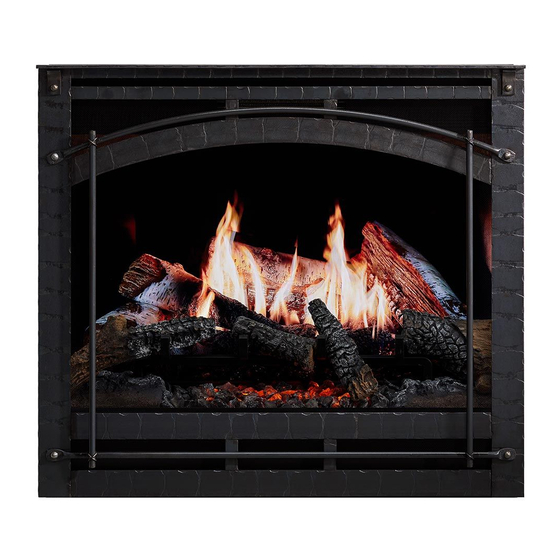

CHATEAU
FORGE
Figure 1 Decorative Front Styles
SimpliFire • Inception Decorative Front Instructions (Chateau Forge, Halston) • 4200-930 • Rev B • 8/23
Inception Decorative Front
Model: SF-CHAF-36, SF-HAL-36
- Installation Instructions -
HALSTON
SHIPPING BRACKET
(DISCARD)
MOUNTING SCREWS x 4 (10-24 X 3/4")
SEPARATE AT
THESE POINTS
MOUNTING BRACKETS
(BEFORE SEPARATION)
Figure 2 Components Overview
(D)
LEFT AND RIGHT SIDE PANELS
NOTE: Side panels located in appliance
component box.
Figure 3 Side Panels Overview
(A)
(B)
(C)
MOUNTING BRACKETS
(AFTER SEPARATION)
(E)
1
