SimpliFire Crestline WMK-WH-ALLS50 Installation Instructions Manual

Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
The Surround is painted in white or wood-look veneer
finish. For instructions on refinishing a surround with
white finish, see page 2. It is recommended that refin-
ishing be completed prior to installation of surround. Do
not attempt to refinish wood veneer.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
• Tape measure
• Hammer
• Gloves
• Level
• Magnetic Phillips screwdriver
• Safety glasses
• Flat blade screwdriver
• 1/2 in. drill bit for 3/16 diameter toggle bolts
(applicable if installing on masonry walls)
• Masonry drill bit 5/16 in.
(applicable if installing on masonry walls)
Crestline Wall Mount Surround Kit
WMK-WH-ALLS50, WMK-WH-ALLS60,
Models: SF-ALLS50, SF-ALLS60
- Installation Instructions -
Important service
SimpliFire • Crestline Wall Mount Surround Instruction • ALLS-WMK-INS Rev. B • 8/24
Kit Components
• Surround Top (1)
• Surround Bottom (1)
• Surround Sides (2)
• Plug (2)
• 8 x 30 Wooden Dowels (12)
• Linking Brackets (12)
• 2-Piece Attachment Brackets (6)
• M6 x 12 Screws (24)
• ST4 x 8 Screws (24)
• M5 x 12 Screws (6)
• Flat Washers (6)
• Extra Hardware Pack

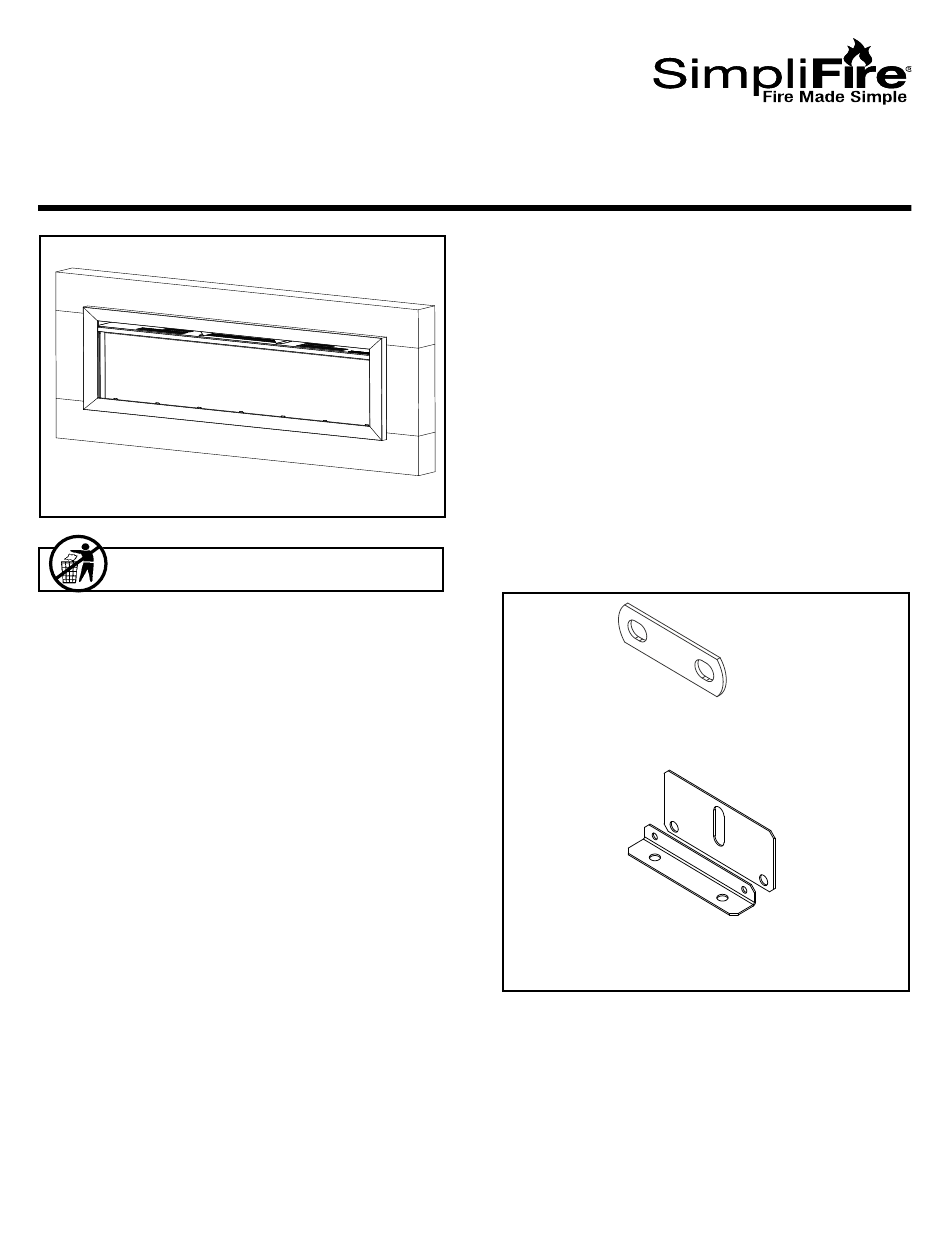

LINKING BRACKET (12)
BRACKET FACE
BRACKET BASE
2-PIECE ATTACHMENT BRACKET (6)
Figure 1 Brackets
NOTICE: The total weight of objects placed on the
surround shelf must not exceed 50 pounds.
Refer to the appliance installation instructions to prepare the
appliance for the appropriate electrical wiring configuration.
If using a receptacle outside of surround area, remove the
plug from the bottom of the surround for use.
