1. Introduction
NOTICE! DO NOT discard any hardware while
servicing.
Some hardware must be reused.
This manual will assist a qualified service technician in the
replacement of parts. Contact your dealer to arrange a
service call by a qualified service technician.
Replacement parts include:
GLASS
MEDIA
SPOTLIGHT LED
LED BOARDS (FUEL BED AND FLAME)
RECEIVER BOARD
FLAME SCREEN
ROTISSERIE
ROTISSERIE MOTOR
CONTROL BOARD
POWER SUPPLY
POWER CORD
INTERIOR SIDE PANEL

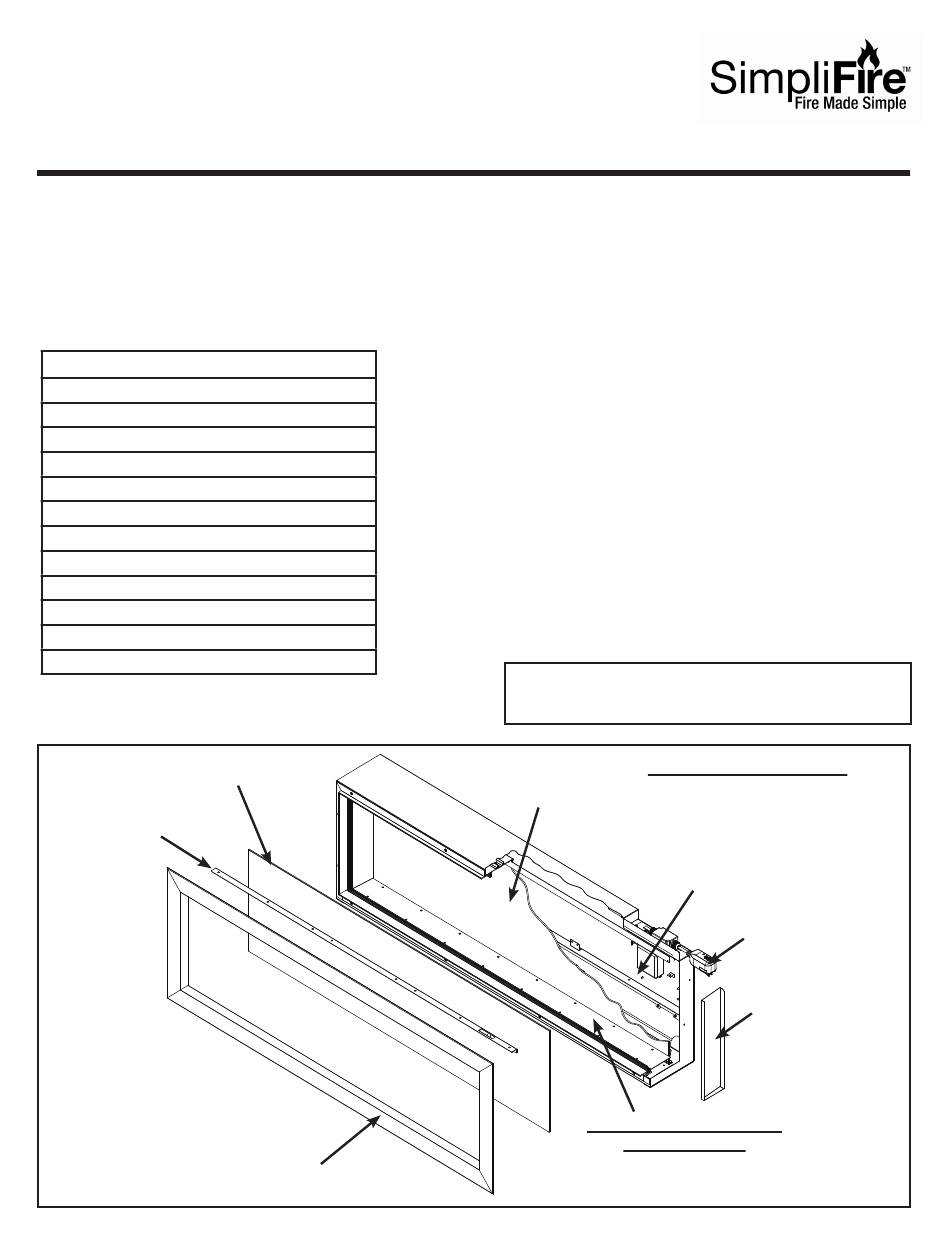

2. Replacement Part - Appliance Diagram

VIEWING GLASS
GLASS RETAINING
BRACKET
FRONT TRIM
SERVICE MANUAL
Model: SF-OD43, SF-OD55
- Instructions -
SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22

Table of Contents

1. Introduction/Table of Contents ..................................1
3.1 Front Trim Removal / Replacement.......................... 2
3.2 Glass Removal / Replacement.................................. 2
3.3 Stone, Media, Log Installation................................... 3
3.4 Spotlight Accent LED Replacement........................... 3
3.6 Fuel Bed LED Light Replacement............................. 4
3.7 Flame Glass Removal / Replacement....................... 4
3.8 Receiver Board Replacement.................................... 4
3.9 Control Board Replacement.......................................5
3.10 Power Supply Replacement...................................... 5
3.12 Rotisserie Removal / Replacement.......................... 6
3.13 Rotisserie Motor Installation..................................... 6
3.14 Flame LED Light Board Installation.......................... 7
3.15 Power Cord Installation............................................ 7
4. Troubleshooting Guide.............................................. 8
NOTICE! DO NOT discard any hardware while
servicing. Some hardware must be reused.
BEHIND FLAME SCREEN:
FLAME SCREEN
- CONTROL BOARD ASSEMBLY
GLASS
- REMOTE RECEIVER
- ROTISSERIE
- ROTISSERIE MOTOR
- FLAME LED
BEHIND Fuel bed COVER
- Fuel bed LEDs
POWER CORD
INTERIOR SIDE
PANEL (2)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-OD43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SimpliFire SF-OD43

  • Page 1: Table Of Contents

    - REMOTE RECEIVER GLASS RETAINING BRACKET - ROTISSERIE - ROTISSERIE MOTOR - FLAME LED POWER CORD INTERIOR SIDE PANEL (2) BEHIND Fuel bed COVER - Fuel bed LEDs FRONT TRIM SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 2: Replacement Instructions

    2. Pull friction fit front away from appliance. Replacement 3. Push new front into place and secure with screws. REMOVE 2 PHILLIPS SCREWS Figure 2 Glass Removal FOR FRONT REMOVAL Figure 1 Front Removal SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 3: Stone, Media, Log Installation

    3. Unplug spotlight bar, and discard. 4. Re-install glass and front trim. 4. Plug in new Spotlight bar and secure with phillips screws. 5. Replace Glass. 6. Replace Front Trim. SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 4: Fuel Bed Led Light Replacement

    3. Reverse the removal steps to re-assemble the appli- ance. Figure 8 LED Plugs Figure 11 Receiver Board Removal Figure 9 LED Retainer Bracket Removal SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 5: Control Board Replacement

    Unplug wires and remove power supply. 4. Install new power supply and reverse the removal steps to re-assemble the appliance Figure 15 Flame Screen Removal Figure 13 Power Supply Removal SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 6: Rotisserie Removal / Replacement

    . Install replacement part by reversing the removal process. 5. Reverse the removal steps to re-assemble the appli- RUBBER COUPLIING ance. Figure 17 Rubber Coupling and Motor Removal Figure 16 Rotisserie Removal SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 7: Flame Led Light Board Installation

    8. Tighten cord grip on housing block. PHILLIPS SCREWS Figure 18 Light Shield Removal COVER PLATE SCREWS TERMINAL CORD GRIP BLOCK Figure 20 Power Cord Figure 19 LED Board Removal SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
  • Page 8: Troubleshooting Guide

    Rotisserie hitting or rubbing against Grinding or rubbing noise Replace rotisserie. internal components SimpliFire, a brand of Hearth & Home Technologies 7571 215 Street West, Lakeville, MN 55044 www.hearthnhome.com SimpliFire • SF-OD43, SF-OD55 Service Manual • 2047-960 • 12/22...
