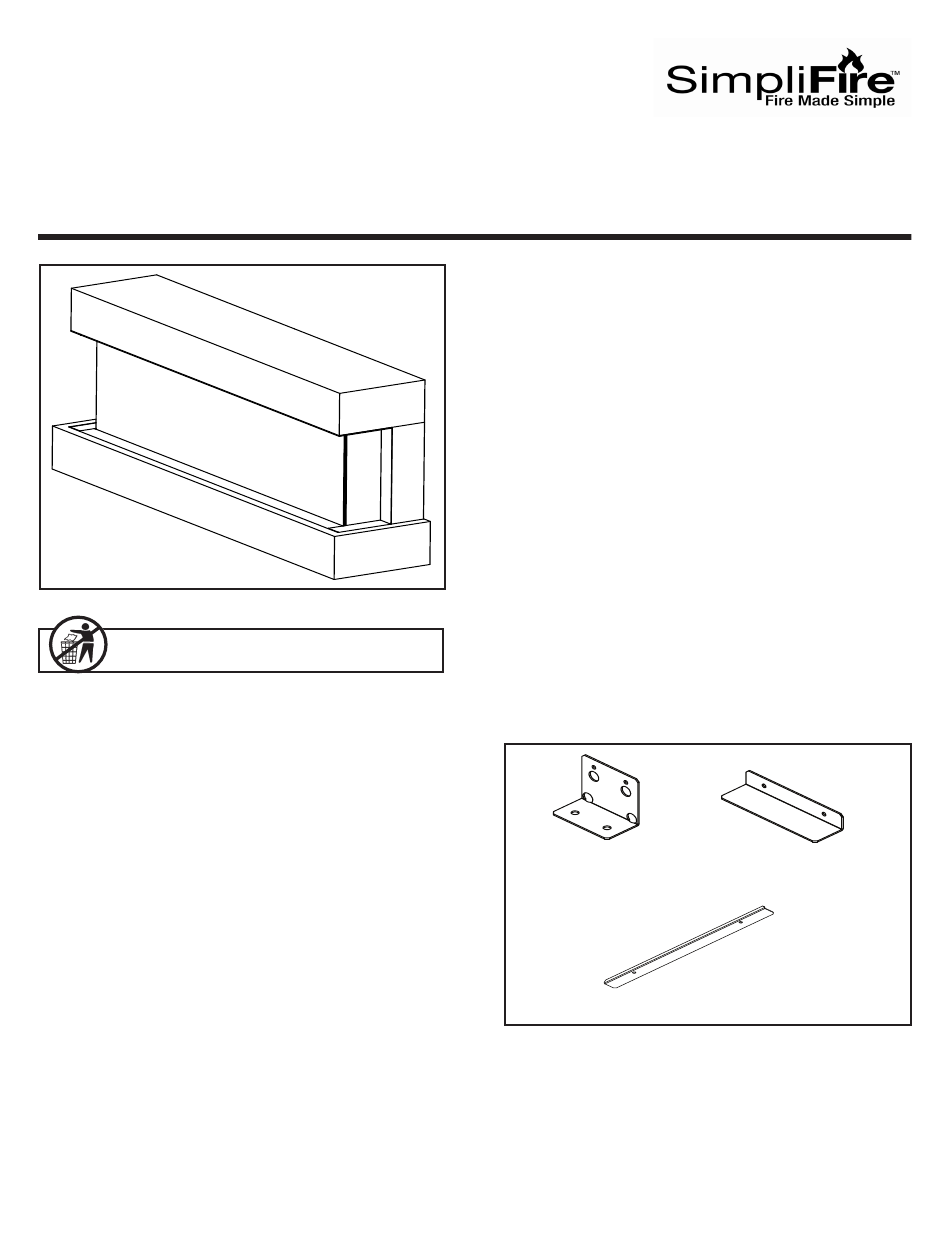

SimpliFire Scion Trinity SF-SCT43-MANTEL Instructions Manual

Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
The Floating Mantel is paint-ready with a white primer
finish.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Needle-nose pliers
Hammer
Gloves
Level
Magnetic Phillips screwdriver
Safety glasses
Flat blade screwdriver
1/2 in. drill bit for 3/16 diameter toggle bolts (applicable if
installing on masonry walls)
Masonry drill bit 5/16 in. (applicable if installing on ma-
sonry walls)

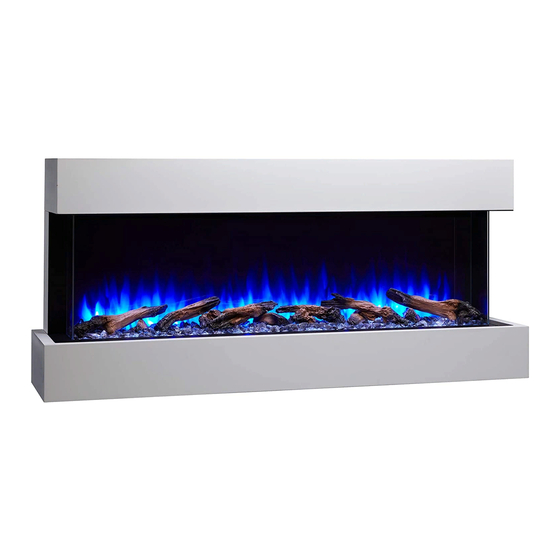

Scion Trinity Floating Mantel
SF-SCT43-MANTEL, SF-SCT55-MANTEL
Model: SF-SCT43-BK, SF-SCT55-BK
Important service
SimpliFire • Scion Trinity Floating Mantel Instruction Manual • 2043-970 Rev. B • 9/20
- Instructions -
Kit Components
• Mantel Bottom*
• Mantel Top*
• Mantel Side Panel (2)
• Side Bracket (2)
• Bottom Bracket (2)
• Front Bracket (1)
• ST4*12 Screws (6)
• ST4*8 Screw (4)
• ST6*50 Screw (8)
• M5*10 Screw (2)
• M6*16 Screws (8)
• 6*30 Wooden Dowels (8)
• 2-inch(51mm) cap. Top Mounting Trim
• Masonry Anchor (8)
• Wall Mount Bracket (1)
• Toggle Bolt Anchor (8)
* The Top and Bottom mantel pieces may be config-
ured in either top or bottom positions depending on
the desired look.
SIDE BRACKET (2)
Figure 1 Bracket
BOTTOM BRACKET (2)
FRONT BRACKET (1)
1
