INSTALLATION

WARNING! Risk of Personal Injury or Property Dam-
age! Failure to install the appliance as instructed below
may result in damage to the equipment and or may ex-
pose the user to the risk of fire, serious injury, illness or
death.
NOTICE: These instructions are not substitutes for the
requirements of local building codes.
This Appliance is designed to be mounted directly on a
wall using the included wall mount bracket.
The appliance is required to be finished with one of the
available Format mantel kits. - Section 4.D.
Top edge of
Wall Mount
Bracket
18-3/4 in.
(476 mm)

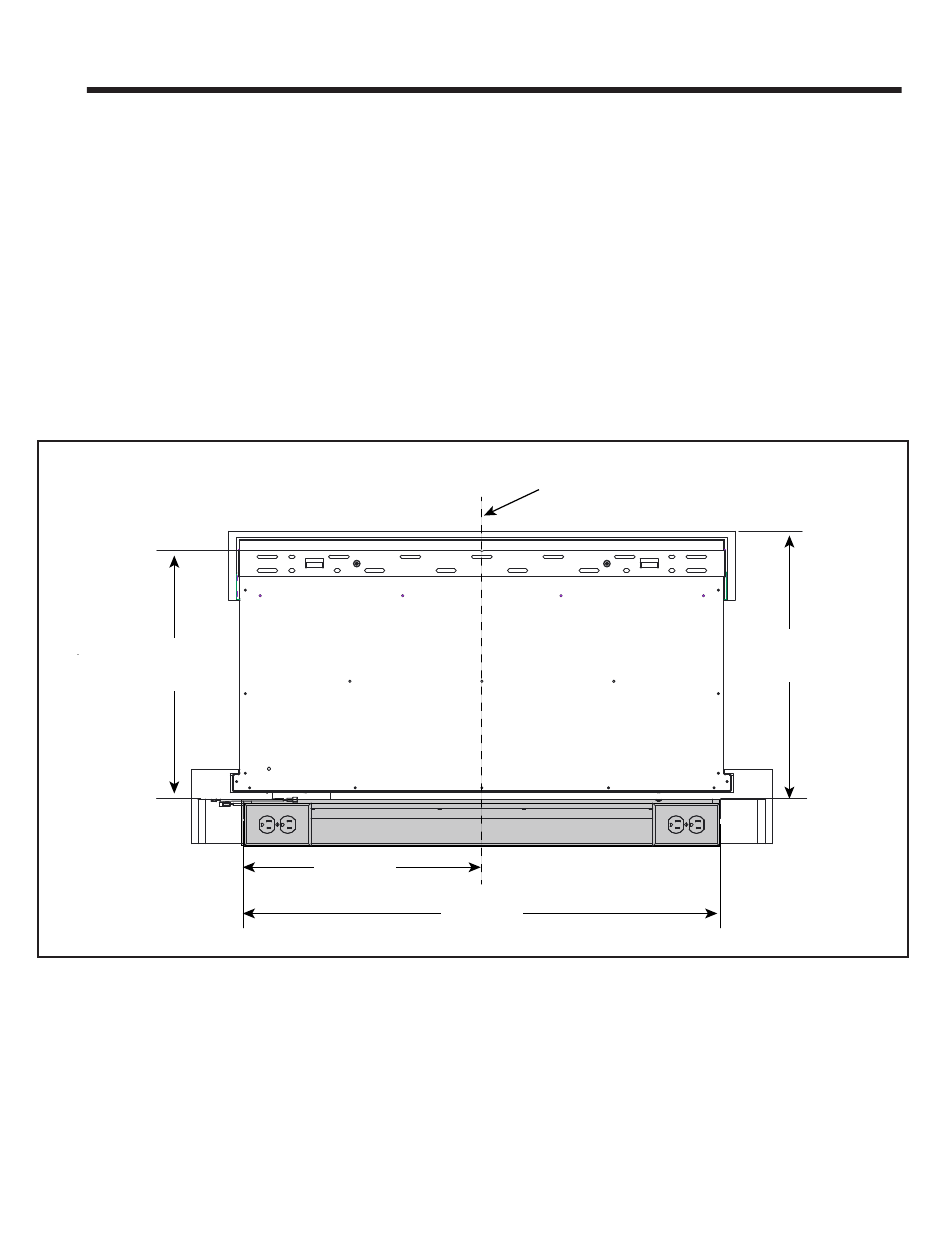

Figure 4.1 Discrete Locating of Outlet Receptacle
Electrical Receptacle
An electrical receptacle may be discretely located under
the bottom mantel section. Refer to Figure 4.1. When
planning the location of your appliance, special care is
required to ensure the wall mount bracket is located a
sufficient distance above the electrical receptacle. Refer
to Figure 4.1 when planning placement of the appliance,
electrical receptacle and wall mount bracket.
10
17-3/4 in.
(451 mm)
35-1/2 in.
(902 mm)
SimpliFire • SF-FORMAT36 • 2042-950 Rev. B • 10/21
Appliance Location
When locating the wall mount bracket be aware of the
final position and dimensions of the appliance, mantel
and electrical receptacle. See Figures 3.1 and 3.2 for
mantel dimension and Figure 4.1 for dimension in rela-
tions to the wall mount bracket.
Appliance/Bracket Centerline
Top of
Mantel
20-3/16 in.
(512 mm)
