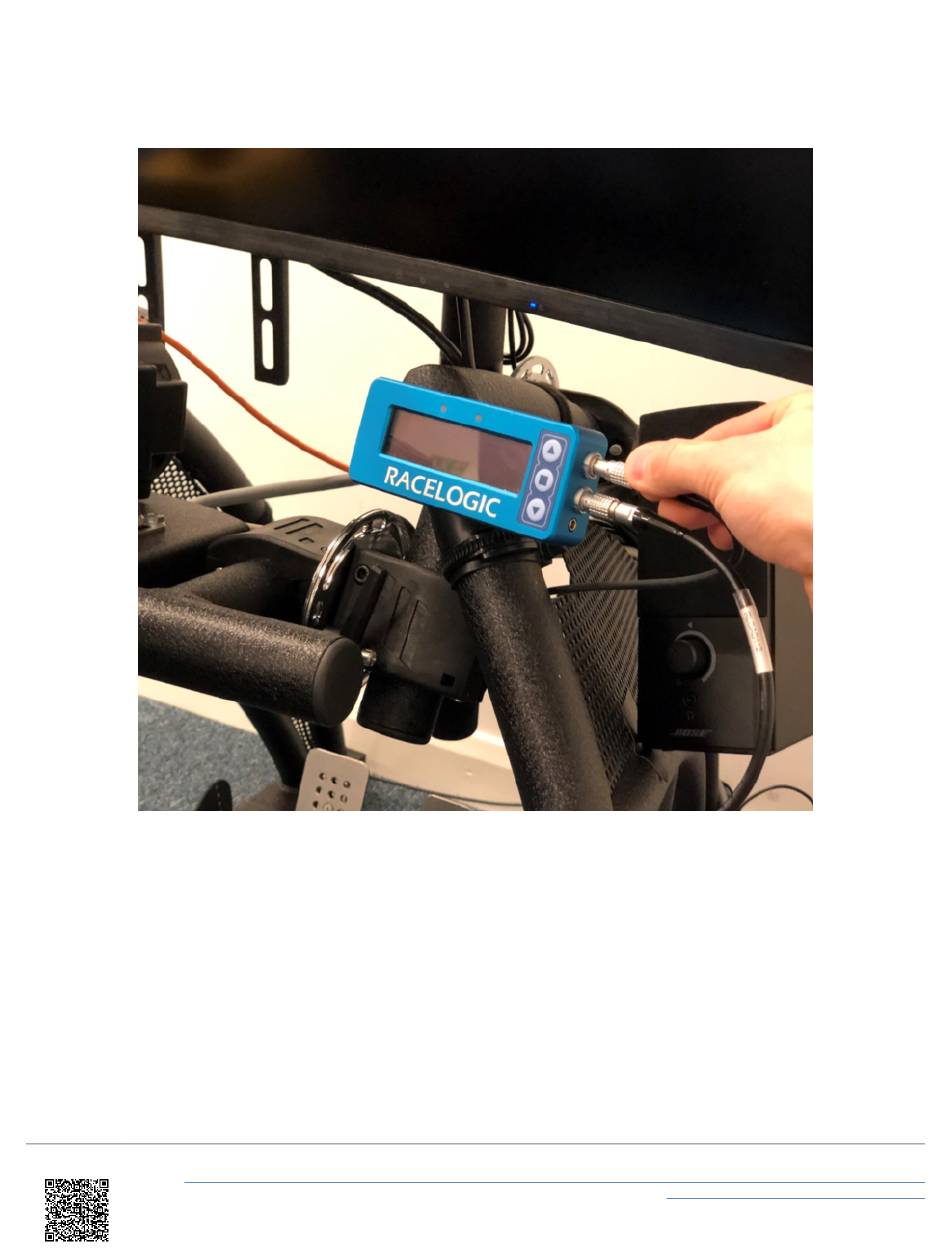

3. Plug the power supply in to the VBOX LapTimer - the 2 pin Lemo connector plugs in to the top socket on the right
side of the VBOX LapTimer.
4. If you are using an external Video Capture Device method for screen capture, please follow the instructions below
(based on an AverMedia LGP Lite Video Capture Card). HDMI cables must be used to plug in your monitors,
alternatively, adapters can be used to convert from different connector types to HDMI.
◦ The AverMedia LGP Lite Video Capture Card is supplied with a USB cable. Plug this in to the USB socket on the
end of the capture card. Plug the other end in to a spare USB socket located at the back of your PC.
◦ If you are using a single monitor, plug one end of an HDMI cable in to the 'IN' HDMI socket on the capture card,
then plug the other end to a spare HDMI socket at the back of your computer.
Note: The video capture card will most likely be recognised as a new monitor. Navigate to Windows Display
