Motoalliance Denali MA11737 Manual

Plow mount for teryx 4 '12+ teryx 2 '14+

23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637

Denali PLOW MOUNT

Thank you for purchasing our Denali plow mount(s). You now own a premium,

custom plow mount to allow you to use your plow with your SxS. Please note the

following instructions and heed all warnings.

• Your UTV/SxS and/or plow system can cause death or injury, please use

caution and common sense when operating your unit.

• Read your Plow Operator's Manual, your Winch Operator's Manual, and all

warning labels before operating your UTV/SxS.

• Operate your SxS at a walking speed with the blade installed. Do not

exceed 5 mph (8 km/h) even with the blade up.

• Do not operate the UTV/SxS on slopes greater than 10 degrees with the

plow installed.

• Always lower the plow to the down position before leaving your UTV/SxS

unattended.

SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.

866.527.7637

www.motoalliance.com

MA11737

Teryx 4 '12+

Teryx 2 '14+

411@motoalliance.com

Table of Contents

Need help?

Do you have a question about the Denali MA11737 and is the answer not in the manual?

Page 1 23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637 www.motoalliance.com Denali PLOW MOUNT MA11737 Teryx 4 ‘12+ Teryx 2 ‘14+ Thank you for purchasing our Denali plow mount(s). You now own a premium, custom plow mount to allow you to use your plow with your SxS. Please note the following instructions and heed all warnings.

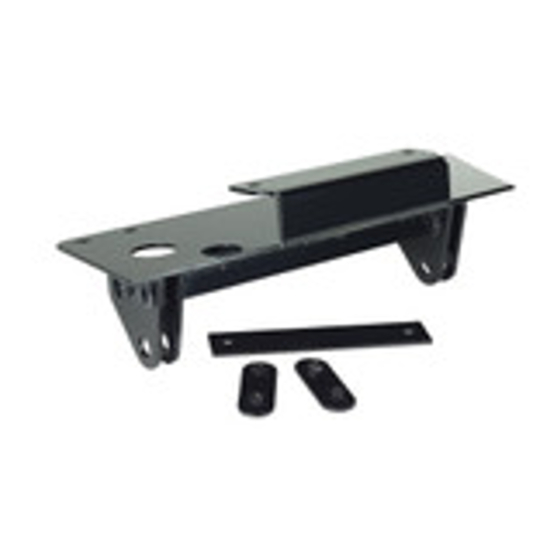

Page 2 MotoAlliance MA11737 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Content: Please refer to Figure 1 Item Description MA11737 Plow Mount Winch Spacer 3/8’’-16 x 1.00 HH G5 Bolt 3/8’’...
Page 3 MotoAlliance MA11737 23001 Industrial Blvd 23001 Industrial Blvd Rogers, MN 55374 Rogers, MN 55374 866.527.7637 MA11737 Plow Mount Installation Plow Mount Installation 1. Remove the bumper metal casing shown in Figure Remove the bumper metal casing shown in Figure 2 using a M10 wrench and using a M10 wrench and Phillips screw driver.
Page 4 Included in your plow mount kit is a spacer that is to be used in conjunction with the MotoAlliance winch mount. Place the spacer behind the plow mount and on the MotoAlliance winch mount. Place the spacer behind the plow mount and on the MotoAlliance winch mount.
