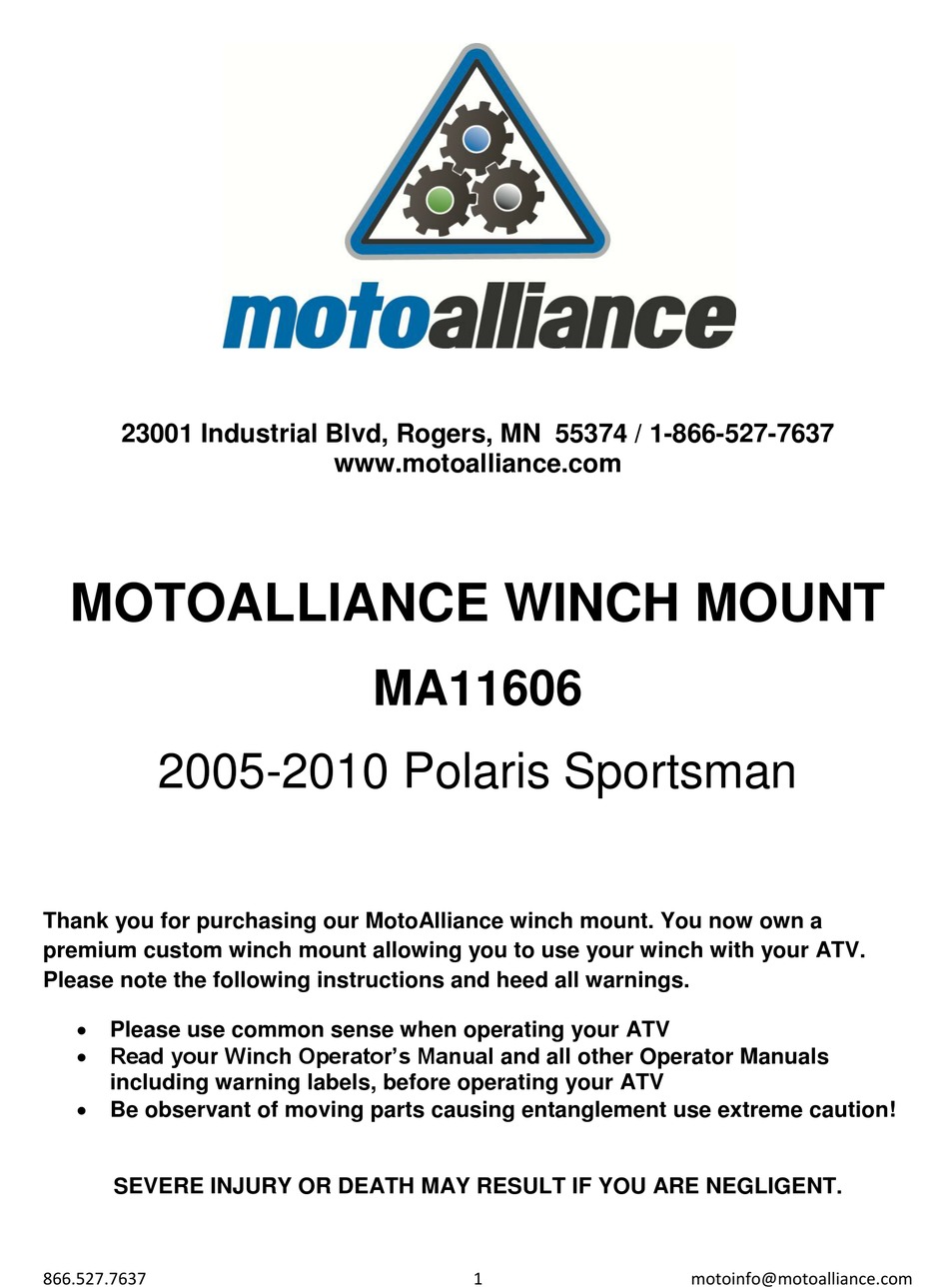

23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637

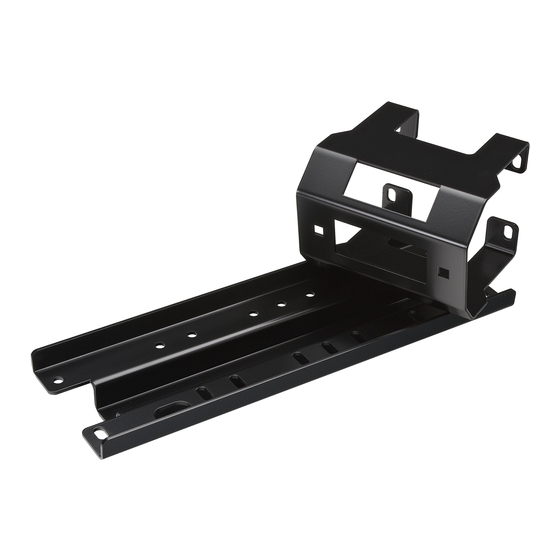

MOTOALLIANCE WINCH MOUNT
2005-2010 Polaris Sportsman
Thank you for purchasing our MotoAlliance winch mount. You now own a
premium custom winch mount allowing you to use your winch with your ATV.
Please note the following instructions and heed all warnings.
Please use common sense when operating your ATV
Read your Winch Operator's Manual and all other Operator Manuals
including warning labels, before operating your ATV
Be observant of moving parts causing entanglement use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
866.527.7637
www.motoalliance.com
MA11606
1
motoinfo@motoalliance.com
Advertisement
Table of Contents
Related Manuals for Motoalliance MA11606
Summary of Contents for Motoalliance MA11606
- Page 1 MOTOALLIANCE WINCH MOUNT MA11606 2005-2010 Polaris Sportsman Thank you for purchasing our MotoAlliance winch mount. You now own a premium custom winch mount allowing you to use your winch with your ATV. Please note the following instructions and heed all warnings.
- Page 2 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Content: Item Number Description Quantity Winch Plate Fairlead Support Bracket 5/16 x 1 1/4" Self Tapping Screw...
- Page 3 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Remove the seat and disconnect the positive (red) and negative (black) wires from the battery using a 10mm wrench. 2. Disconnect the left-hand and right–hand access headlight plugs. These are located just behind the headlights.
- Page 4 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Remove the three Phillips head screws securing the upper headlight pod. Loosen the top to the pod. Remove the main access cover in the front storage box. Remove the front bulkhead access cover. This cover is located just below the headlight pod.
- Page 5 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Note: on X2 models only, remove the pre-installed winch mounting plate located on the front bumper support and discard. 5. Attach the winch to the mounting plate and the fairlead support plate using the four hex head cap screws and lock washer that came in the winch hardware kit.
- Page 6 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 8. Route the battery cables from the contactor location to the battery compartment. Do not connect at this time. Using the four 5/16-18 x 1 1/4 self tapping hex bolts attach the mounting plate with winch to the ATV frame.
- Page 7 MotoAlliance MA11606 2005-2010 Polaris Sportsman 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 866.527.7637 motoinfo@motoalliance.com...
