Motoalliance Denali MA11705 Manual

Polaris rzr turbo s plow mount

23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637

Polaris RZR Turbo S Plow Mount

Thank you for purchasing our Denali plow mount. You now own a premium custom plow

mount which allows you to use your plow with your UTV / SxS. Please note the

following instructions and heed all warnings.

• Please use common sense when operating your UTV / SxS

• Be observant of moving parts causing entanglement, use extreme caution!

SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.

866.527.7637

www.motoalliance.com

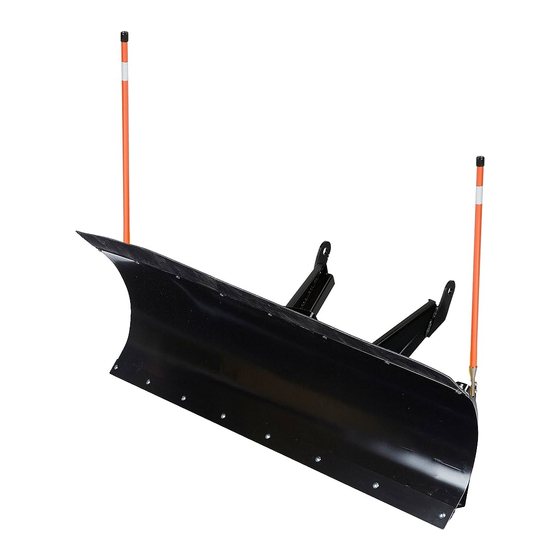

Denali Plow Mount

MA11705

motoinfo@motoalliance.com

Table of Contents

Need help?

Do you have a question about the Denali MA11705 and is the answer not in the manual?

Page 1 23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637 www.motoalliance.com Denali Plow Mount MA11705 Polaris RZR Turbo S Plow Mount Thank you for purchasing our Denali plow mount. You now own a premium custom plow mount which allows you to use your plow with your UTV / SxS. Please note the following instructions and heed all warnings.
Page 2 Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Contents: Item Description MA11705-W1 Main Mount Plate MA11705-4 Front Mounting Strap MA11705-5 Front Spacer 3/8’’-16 x 1” Serrated Flange Bolt Figure 1 866.527.7637 Motoinfo@motoalliance.com...
Page 3 1. Remove the two screws that secure the plastic winch cover plate on the front of the machine as shown in Figure 2. Figure 2 2. Remove the two bolts securing the tow hook as shown in Figure 3. Figure 3 866.527.7637 Motoinfo@motoalliance.com...
Page 4 Rogers, MN 55374 866.527.7637 3. Remove the two rear lower control arm mounting bolts. (set hardware aside for future use) Figure 4 4. Slide the MA11705-4 Front Mounting Strap into place as shown in Figure 5 Figure 5 866.527.7637 Motoinfo@motoalliance.com...
Page 5 7. Reinstall the Lower Control Arm bolts removed earlier through the rear plow mount holes. Torque the control arm bolts to 42 ft-lbs. 8. Verify the plow is sitting flush with the vehicle frame and tighten down all hardware. 866.527.7637 Motoinfo@motoalliance.com...
