23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637

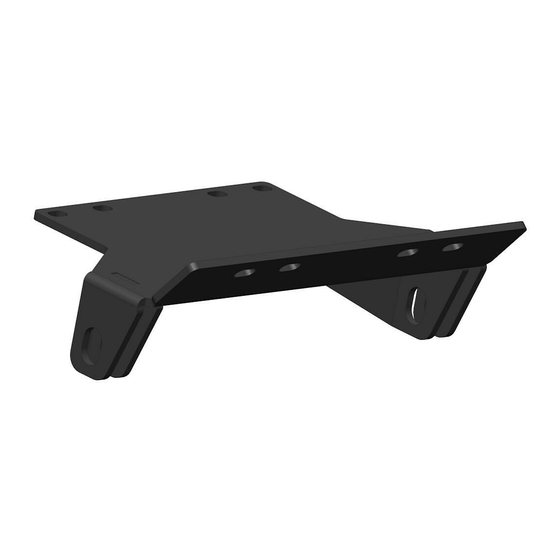

MOTOALLIANCE PLOW MOUNT
CFMOTO Z-Force 500/800
Thank you for purchasing our MotoAlliance plow mount. You now own a premium
custom plow mount allowing you to use your plow with your SxS. Please note the
following instructions and heed all warnings.
• Please use common sense when operating your SxS
• Be observant of moving parts causing entanglement use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
866.527.7637
www.motoalliance.com
MA11767
1
motoinfo@motoalliance.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Motoalliance MA11767
Summary of Contents for Motoalliance MA11767
- Page 1 MOTOALLIANCE PLOW MOUNT MA11767 CFMOTO Z-Force 500/800 Thank you for purchasing our MotoAlliance plow mount. You now own a premium custom plow mount allowing you to use your plow with your SxS. Please note the following instructions and heed all warnings.
- Page 2 MotoAlliance MA11767 CFMOTO Z-Force 500/800 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Content: Item Number Description Quantity MA11767 Main Mounting Plate 3/8” -16 x 1.5” ID Ubolt (for 1” pipe) 3/8"-16 Serrated Flange Nut...
- Page 3 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 1. Lift the MA11767 Mounting Plate into place under the front bumper as shown in Figure 2. Figure 2 2. Hang two of the 3/8”-16 x 1.5” ID Ubolts over the vertical bumper tubes and push them through the front of the MA11767 Main Mounting Plate as shown in Figures 2 and 3.
- Page 4 3. Secure with 3/8”-16 Serrated Flange Nuts but do not tighten at this time. 4. Lift the back of the MA11767 Main Mounting Plate into place and secure with 3/8”-16 x 1.5” ID Ubolts and 3/8”-16 Serrated Flange Nuts as shown in Figure 4.
