Motoalliance MA11981 Manual

Winch mount kubota rtv 900/1140

23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637

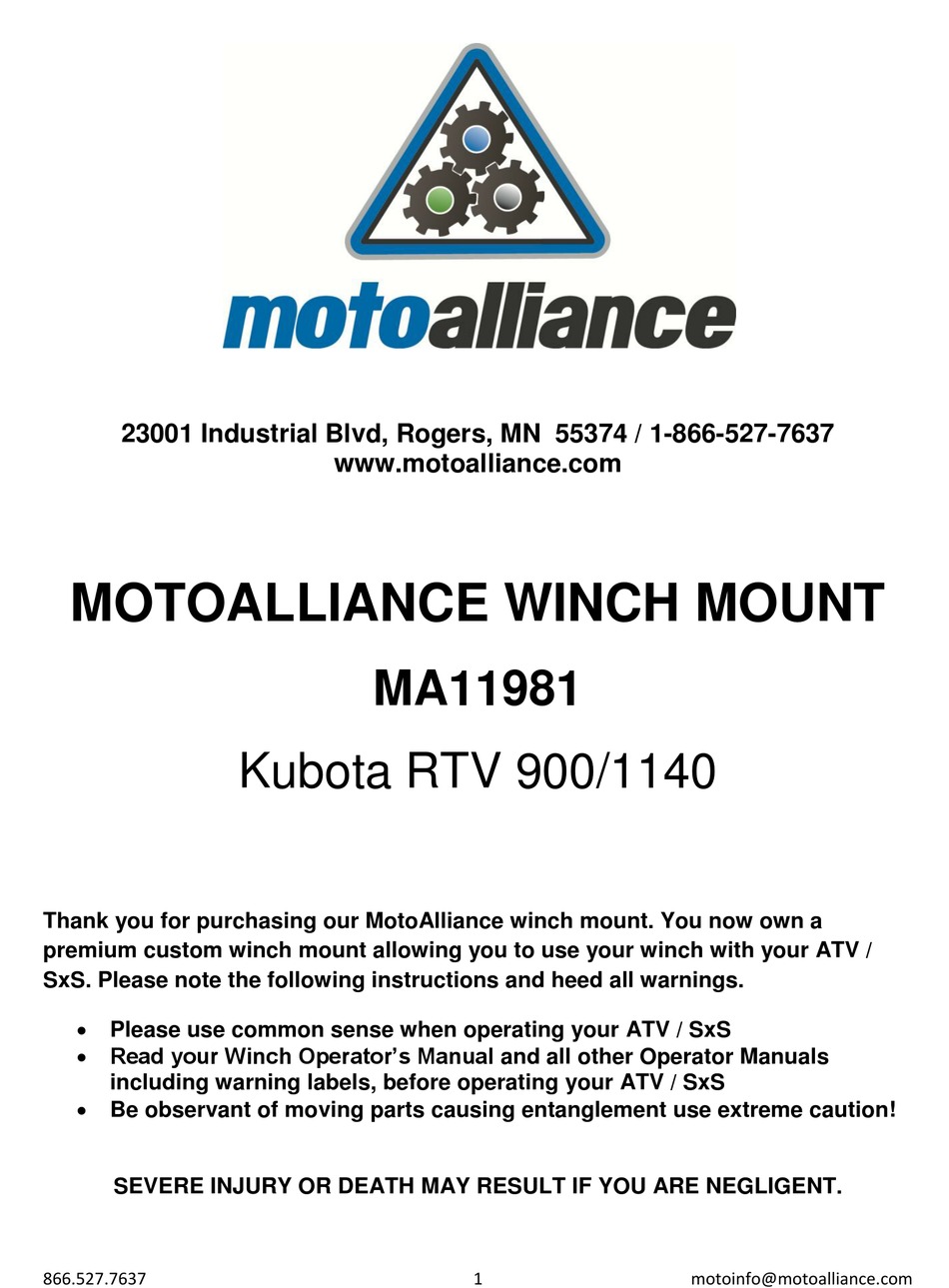

MOTOALLIANCE WINCH MOUNT

Thank you for purchasing our MotoAlliance winch mount. You now own a

premium custom winch mount allowing you to use your winch with your ATV /

SxS. Please note the following instructions and heed all warnings.

 Please use common sense when operating your ATV / SxS

 Read your Winch Operator's Manual and all other Operator Manuals

including warning labels, before operating your ATV / SxS

 Be observant of moving parts causing entanglement use extreme caution!

SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.

866.527.7637

www.motoalliance.com

MA11981

Kubota RTV 900/1140

motoinfo@motoalliance.com

Table of Contents

Need help?

Do you have a question about the MA11981 and is the answer not in the manual?

Page 1 MA11981 Kubota RTV 900/1140 Thank you for purchasing our MotoAlliance winch mount. You now own a premium custom winch mount allowing you to use your winch with your ATV / SxS. Please note the following instructions and heed all warnings.

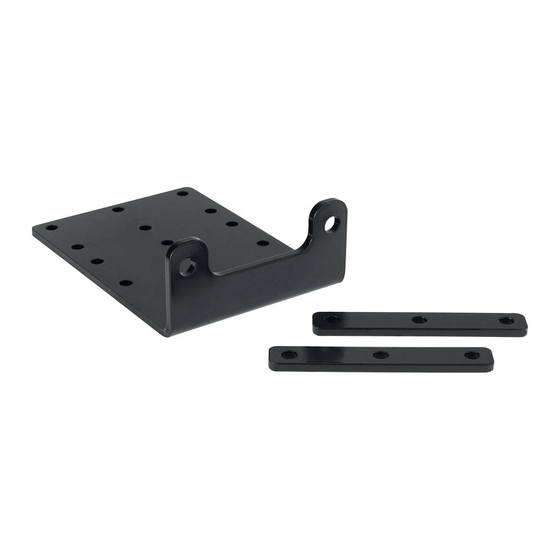

Page 2 MotoAlliance MA11981 Kubota RTV 900/1140 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Content: Item Number Description Quantity MA11981-1 Main Mounting Bracket MA11981-2 Mounting Spacers M8 Flat Washer M8 Lock Washer M8-1.25 x 40mm Hex Head Bolt...
Page 3 3. Place the MA11981-2 Mounting Spacers into the winch cavity, making sure the holes line up with the holes in your machine. 4. Slide the MA11981-1 Main Mounting Bracket in through the front of the winch cavity and place it on top of the MA11981-2 Mounting Spacers.
Page 4 Figure 3. 7. Once the winch is mounted securely, attach the Roller Fairlead or Aluminum Hawse fairlead to the front of the MA11981-1 Main Mounting Bracket. 8. Pass the cable through the Rubber Line Stopper and then through the Roller Fairlead or Aluminum Hawse.
