Classic Exhibits LT-116 Quick Start Manual

© 2019
Order #XXXXX
Item Description
1 19"w x 38"h Flat Panel
2 19"w x 38"h Flat Panel
3 38"h 90° Connector
4 19"w x 38"h Flat Panel
5 38"h 90° Connector
6 19"w x 38"h Flat Panel w/ Door
7 19"w x 38"h Flat Panel w/ Door
8 38"h 90° Connector
9 19"w x 38"h Flat Panel
10 38"h 90° Connector
8
7
9
10
1
2
LT-116 Counter
Steps:

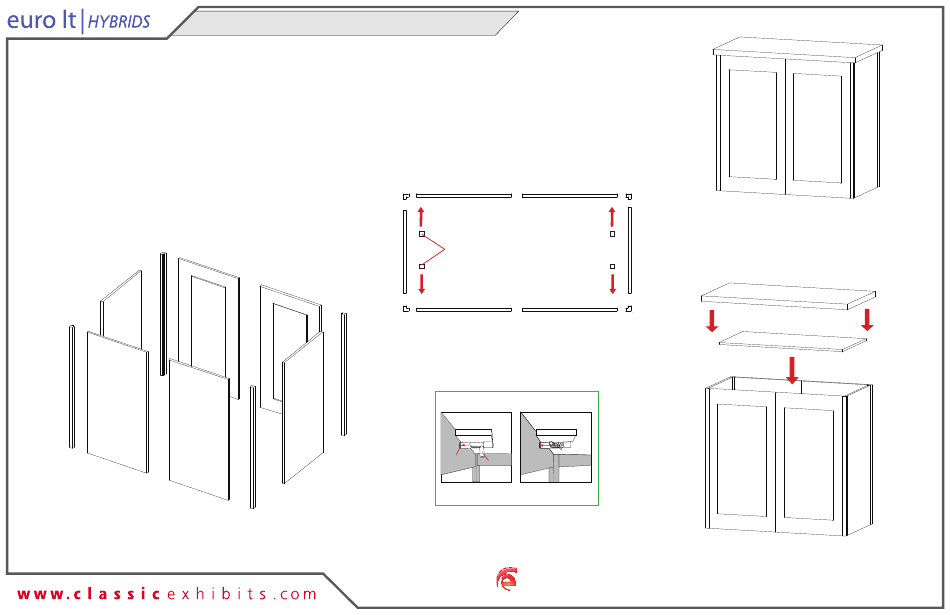

1) Connect panels together in numerical order. See LT panel
Assembly details on reverse side.
2) Connect shelf supports to Velcro on interior of assembled
counter base then place internal shelf on top of shelf supports.
3) Set counter top on assembled counter base. Secure with
pins. See Counter Top Attachment detail.
8
9
6
5
10
4
3
6
7
Door Door
Connect shelf support to
Velcro on inside of
assembled counter base.
1 2
Top View of Counter Base
*
Counter Top Attachment
1 2
Hole
Pin
Align hole with pin Rotate pin. Spring
will push pin into hole.
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
5
Completed Assembly
4
Counter Top
3
Internal Shelf
*
Back View
*
