Portable backwall counter

Advertisement

© 2023
Order #XXXXX

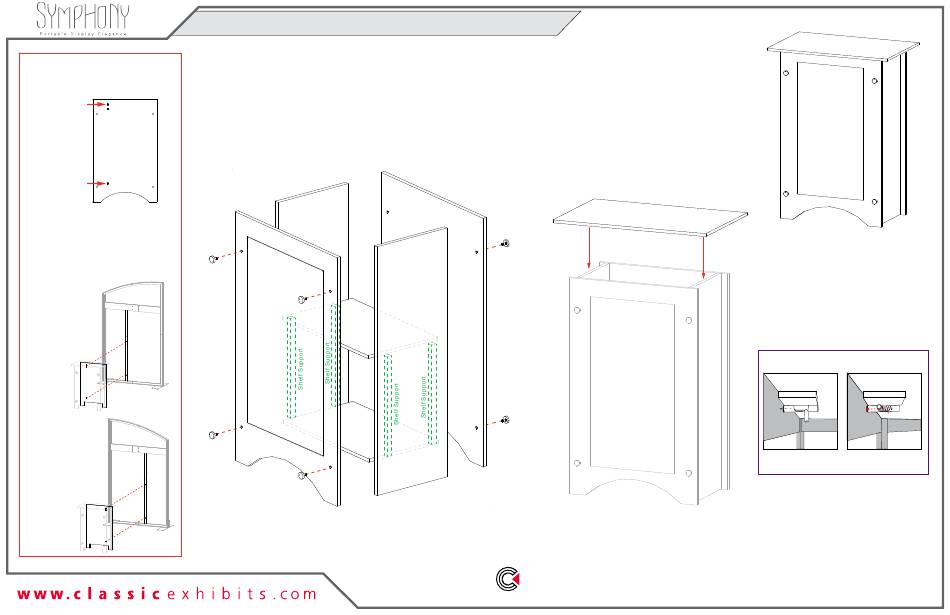

Back Panel Hole Placement

Holes on back panel of Counter are
off-center to attach to backwall vertical.
Back panel of
back
counter may be
panel
rotated for either
left- or right-frame
SYM-406B
configuration.
When assembling counter, align holes
of back panel to vertical extrusion of
backwall frame.
Screw
Counter should be centered on backwall
Cap
frame when installed.
EXAMPLE OF
VERTICAL WITH
LEFT OFSET
Backwall
vertical
Counter
back
panel
EXAMPLE OF
VERTICAL WITH
RIGHT OFSET
Backwall
vertical
NOTE: Remove pins for floor
Counter
from side panels when packing.
back
panel
SYM-406B Portable Backwall Counter
Steps:
1) Use screw caps to secure side panels to front & back panels. Ensure holes of back panel
are correctly aligned for backwall attachment.
2) Connect
shelf supports
with Velcro inside of panels, then place shelf on top of supports.
3) Attach Counter Top to assembled pedestal base. See
Side Panel
Side Panel
Front Panel
(with Door)
Shelf
Floor

Pedestal Base Assembly

Counter Top Attachment

detail.
Back Panel
(with holes
for backwall
attachment)
Counter Top
Screw
*
Cap

Pedestal Top Attachment

SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

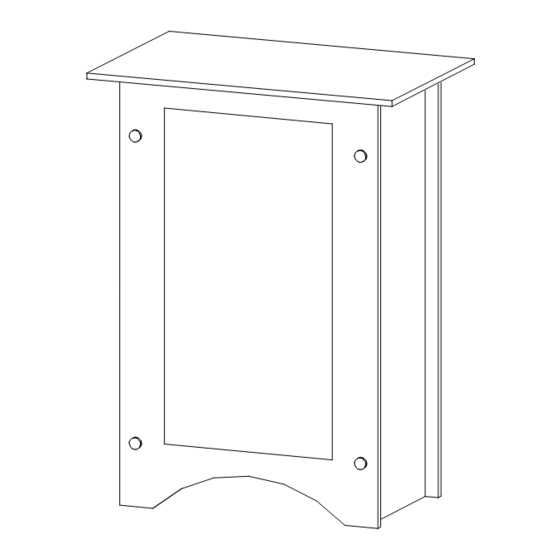

When assembled
SYM-406B Backwall Counter
*
*
Counter Top Attachment
1
Rotate pin. Spring
Align hole with pin.
will push pin into hole.
2
