Order #XXXXX - LTK-1108 - Counter Assembly
Item Number
Description
1
23"w x 38"h Light Box Frame
2
42"h T Connector
23"w x 42"h Flat Panel
3
4
42"h T Connector
5
23"w x 38"h Flat Panel w/ Door
6
42"h T Connector
7
23"w x 42"h Flat Panel
8
42"h T Connector
9
42"h Tapered Panel
10
42"h Tapered Panel
11
42"h Tapered Panel
12
42"h Tapered Panel
6
12
Shelf Supports
7
Velcro shelf supports to inside
of assembled base where indicated.
9
8
w w w . c l a s s i c e x h i b i t s . c o m

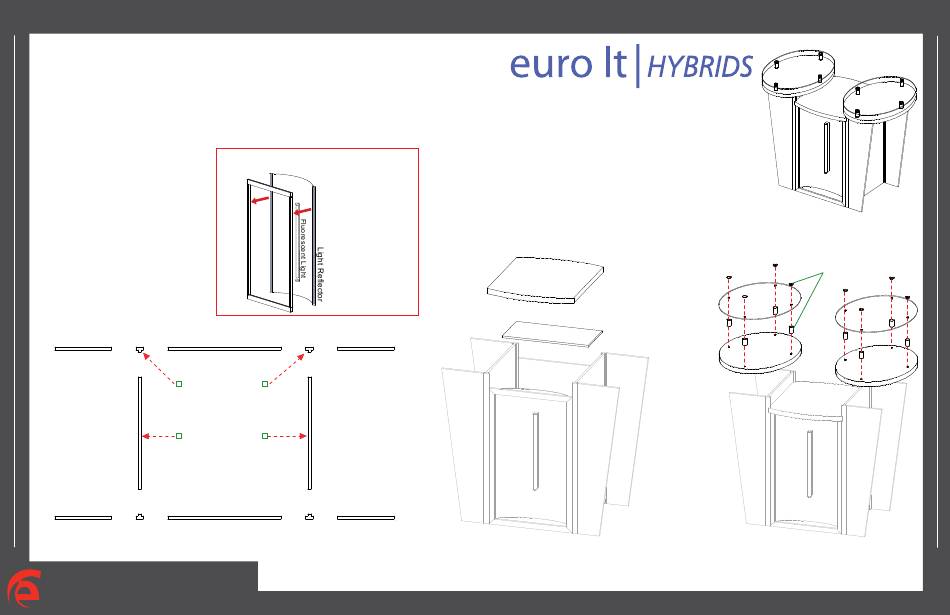

Steps:
1) Assemble by starting at panel
and continue in numerical order.
2) Velcro shelf supports inside assembled base,
then place internal shelf atop supports.
3) Set center counter atop base.
4) Attach plex shelves to counters using standoff barrels and caps as shown.
5) Set counters atop base.
Light Reflector Attachment
Velcro Light Reflector
onto back of light box
frame, then Velcro
Fluorescent Light
onto Reflector Panel.
4
5
11
Door
3
Light Box Frame
*
1
2
10
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
*
#1
Counter Top
Internal Shelf
Standoff Barrel
and Cap
Plex Shelf
Counter Top
866.652.2100
© 2011
