Order #XXXXX - LTK-1114 - Counter Assembly
Item Number
Description
1
11.5"w x 42"h Flat Panel
2
42"h 90° Connector
3
46"r x 42"h Door Panel
42"h 90° Connector
4
5
11.5"w x 42"h Flat Panel
6
42"h 90° Connector
7
57.5"r x 42"h Curve Panel
8
42"h T Connector
9
57.5"r x 42"h Curve Panel
10
42"h Flex Connector
11
6.5"w x 38"h Flat Panel
12
38"h Flex Connector
13
59"r x 38"h Curve Panel
14
38"h 90° Connector
15
11.5"w x 38"h Flat Panel
10
11
12
w w w . c l a s s i c e x h i b i t s . c o m

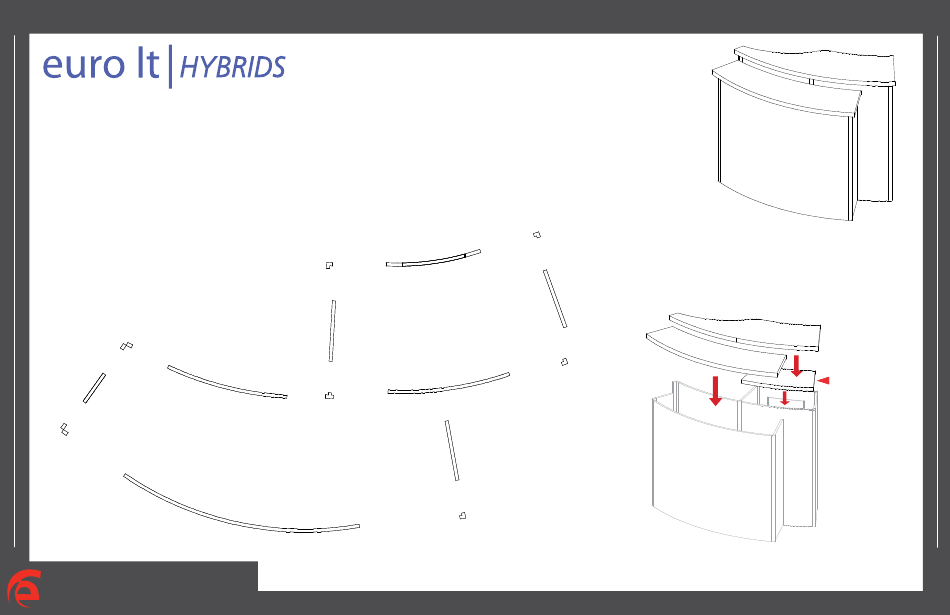

Steps:
1) Assemble by starting at panel
and continue in numerical order.
2) Velcro shelf supports to inside assembled base,
then set internal shelf atop supports.
3) Place counters atop assembled pedestal.
2
1
9
8
13
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
*
#1
4
3
Door
5
6
7
15
14
866.652.2100
Counter
Counter
Internal shelf
© 2011
