Classic Exhibits Euro LT Hybrids LTK-1119 Assembly

Classic Exhibits Euro LT Hybrids LTK-1119 Assembly

Square pedestal w/ door and interior shelf

Advertisement

Quick Links

Order #40284 - Square Pedestal w/ Door and Interior Shelf Assembly
Item
Qty.
Description
1
1
Left Side Panel
2
1
Right Side Panel
3
1
Front Panel w/ Pill Slots
4
1
Back Panel w/ Door
4
LT panels (Plan View)
1
3
Hole
w w w . c l a s s i c e x h i b i t s . c o m

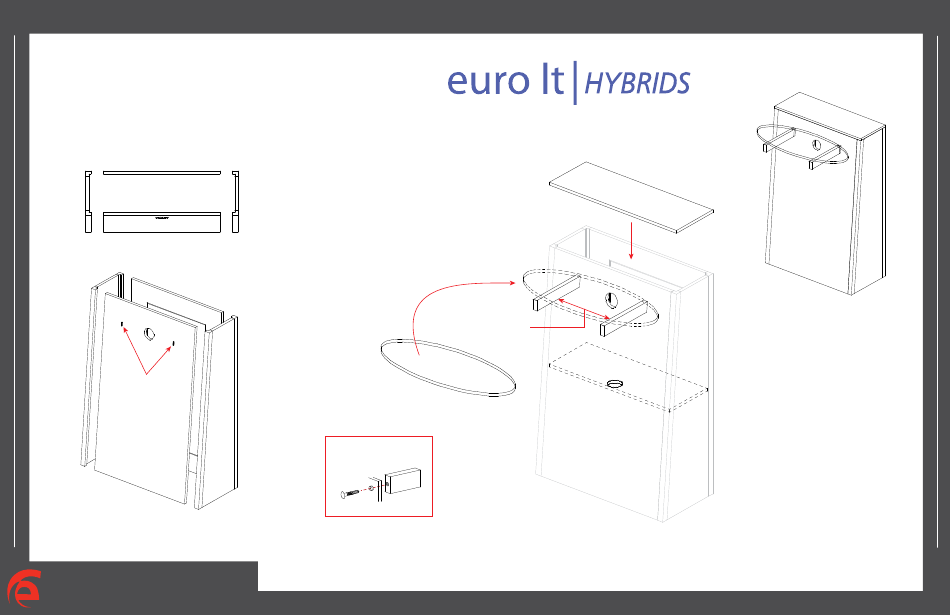

Steps:
1) Assemble LT panels [1-4] together as shown.
2) Place shelf atop shelf supports pins.
3) Attach horizontal shelf supports [1,2] to front panel
using bolts as shown. Refer to detail.
4) Place oval plex shelf atop horizontal shelf supports.
5) Place counter atop assembled pedestal.
2
Bolt into
threaded Hole
Connection
*
1 or 2
Horizontal
Shelf Support
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
*
1
Horizontal Shelf Support
2
*
Plex Shelf
*
*
= Pins
Counter
*
Shelf
*
*
Step 1
866.652.2100
When assembled
© 2013
Page 1 of X
