© 2023
Order #XXXXX
Item
Qty.
Description
1
1
38"h 90° LT-Connector
2
1
19"w LT-Panel
3
1
19"w LT-Panel
4
1
19"w LT-Panel
5
1
38"h 90° LT-Connector
6
1
10.5"w LT-Panel
7
1
Curved LT-Panel
8
1
20.063"w LT-Door Panel
9
1
20.063"w LT-Door Panel
10
1
Curved LT-Panel
11
1
10.5"w LT-Panel
1
2
11
10
9
8
LTK-1152 Counter

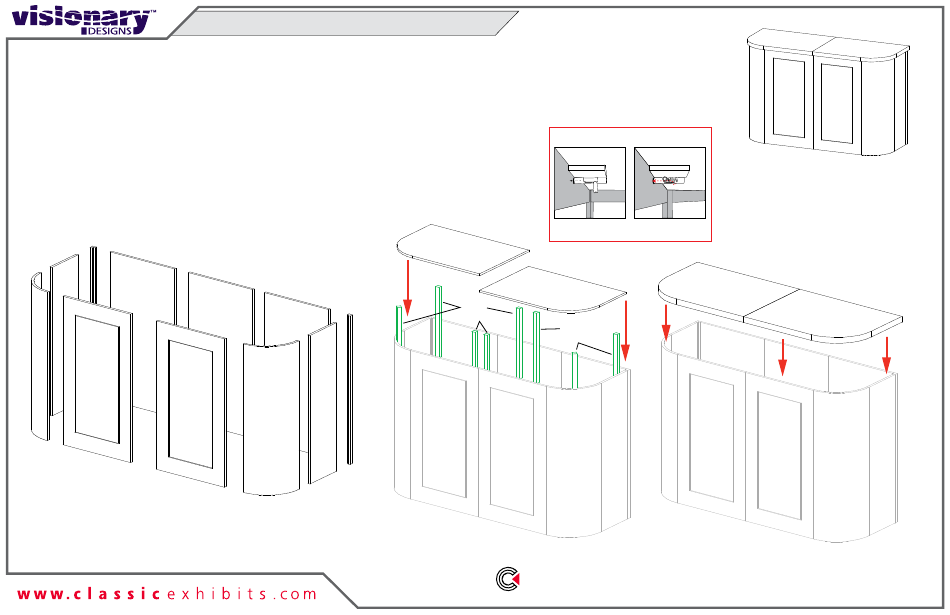

Steps:
1) Assemble LT-Panels and Connectors in numerical order.
2) Install Shelf support to velcro on interior of assembled cabinet;
place two piece internal shelf on supports
3) Attach Counter Top to top of assembled cabinet.
3
4
5
6
7
*
Counter Top Attachment
Align hole with pin
Internal Shelf
Internal Shelf
Shelf
Supports
Shelf
Supports
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
1
2

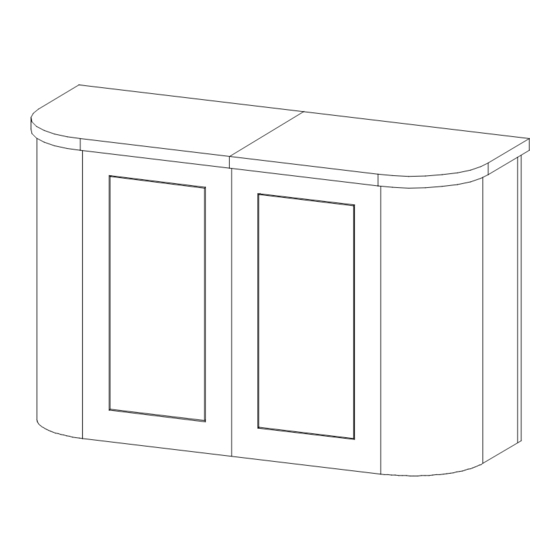

Completed Assembly
Rotate pin. Spring
will push pin into hole.
Counter Top
*
*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Classic Exhibits visionary DESIGNS LTK-1152
Summary of Contents for Classic Exhibits visionary DESIGNS LTK-1152
- Page 1 © 2023 Order #XXXXX LTK-1152 Counter Item Qty. Description Steps: 38”h 90° LT-Connector 1) Assemble LT-Panels and Connectors in numerical order. 19”w LT-Panel 2) Install Shelf support to velcro on interior of assembled cabinet; 19”w LT-Panel place two piece internal shelf on supports 19”w LT-Panel 3) Attach Counter Top to top of assembled cabinet.
- Page 2 © 2023 Order #XXXXX General Information LT Panel Assembly While pushed in, pull panel up to disassemble 1) With a vertical offset, place LT-Panels side-by-side; slide vertically offset panel down to lock panels together and in place. 2) Corner Connectors (90°, T-Connector, Straight Connector) connect just as panels connect together.
- Page 3 © 2023 Order #XXXXX Case Packing Top View of Each Level Shelf Supports Shelf 2,3,4 6,11 (qty. 2) Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 2...
- Page 4 © 2023 Order #XXXXX Crate Packing Top View of Each Level Counter 7,10 (qty. 2) Level 1 Level 2 (Bottom level) Case 2 of 2...
