Order #XXXXX - LTK-1012 - Counter Assembly
Item Number
Description
11
5.75"r x 38"h Half Curve Panel
12
5.75"r x 38"h Half Curve Panel
13
11.5"r x 42"h Quarter Curve Panel w/ Door
14
11.5"r x 42"h Quarter Curve Panel
11.5"r x 42"h Quarter Curve Panel
15
16
11.5"r x 42"h Quarter Curve Panel

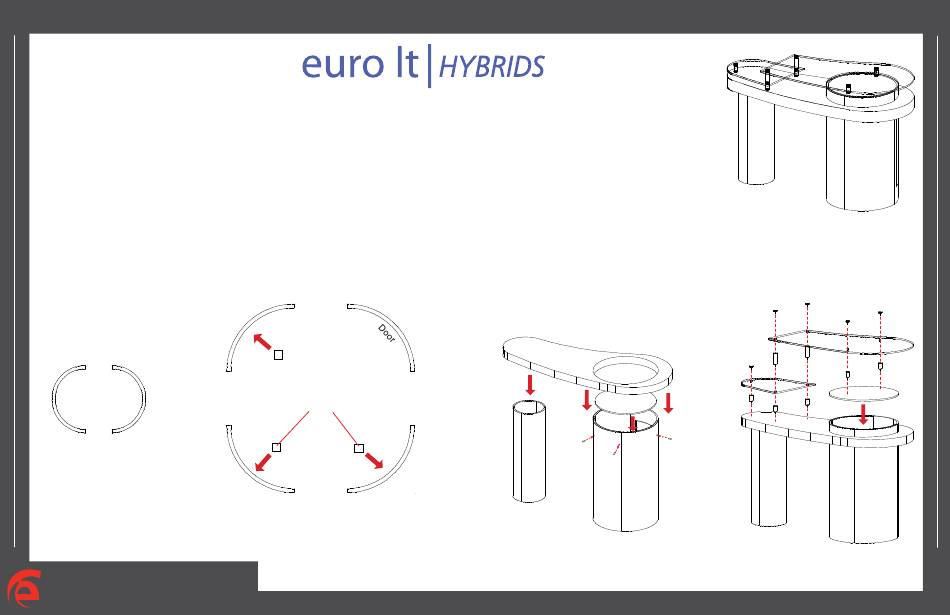

Steps:
1) Assemble workstation base by starting at panel [11]
and continue in numerical order.
2) Velcro shelf supports to inside of assembled large base.
11
12
w w w . c l a s s i c e x h i b i t s . c o m
*
13
16
Shelf Supports
*
15
14
*
*
= Indicates Pin Location
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Steps:
3) Set internal shelf atop shelf supports.
4) Attach pins to large base where indicated.
5) Slide large counter on base, and set atop
small base and pins.
Large
Counter
*
Pin
Steps:
6) Attach plex shelves to counter tops using
stand-off barrels and caps as shown.
Internal Shelf
Pin
Pin
866.652.2100
Counter
© 2011
