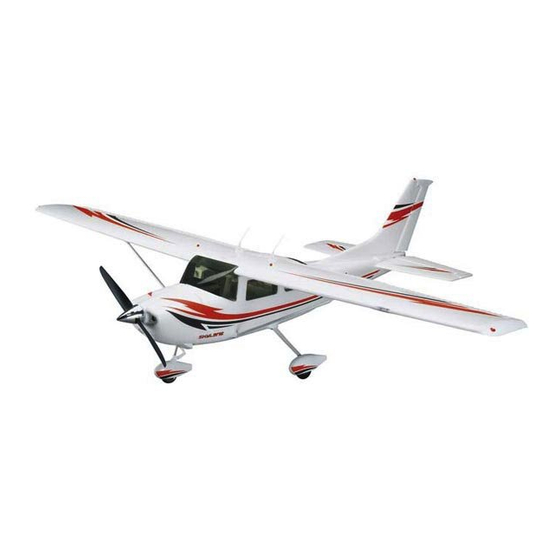

Hobbico Flyzone Cessna 182 SKYLANE Quick Start Manual

RADIO UPGRADE

A new radio system is now included with
the Cessna 182 RTF. The Tactic 2.4GHz
TTX600 Transmitter & the TR624 Receiver
is a substantial upgrade over the previous
72MHz equipment. Assemble the Cessna
182 RTF according to the instructions.
Please refer to this addendum on sections
pertaining to the radio system. For more
information and features of the new radio
system go to tacticrc.com.
2. Make sure the correct leads are plugged into the TR624 RX in
the proper order and that TR624 is secured to the aircraft.
™
™
Trainer
Switch
CH5 Switch
CH6 Dial
LED Power
Indicator
Power
Switch
FOLLOW THESE ADDTIONAL INSTRUCTIONS TO USE
1. Install (4) AA batteries
in the TTX-600
3. Make sure the servo reversing switches on the TTX600 are in
the positions shown.
4. Once the battery is installed
and the ESC is powered.
Make sure the controls from
the TTX600 correspond to
the aircraft properly.
(It is not recommended to exceed 1/3 of the full dial throw on
the TTX600 while operating the Cessna 182. Applying more
than 1/3 throw could cause excessive fl ap throw and make
the Cessna 182 diffi cult to control.)
D/R Switch
Neck Strap
Eyelet
Trim
Lever
Charge
Jack
Reversing
Switches
Aileron: N
Elevator: N
Throttle: R
Rudder: R
