Assembly Instructions
Important
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damage, to
purchase parts or accessories, or if you have any questions, please
contact us at:
www.spectrumfurniture.com
715-723-6750, 800-235-1262
Thank you for purchasing Spectrum products!
Note: The core table should be fully-assembled in it's final location
before proceeding with this installation. These end worksurfaces
should be installed before the side worksurfaces or center console
panel. If you have existing side worksurfaces and a center console
panel installed, they will need to be removed.

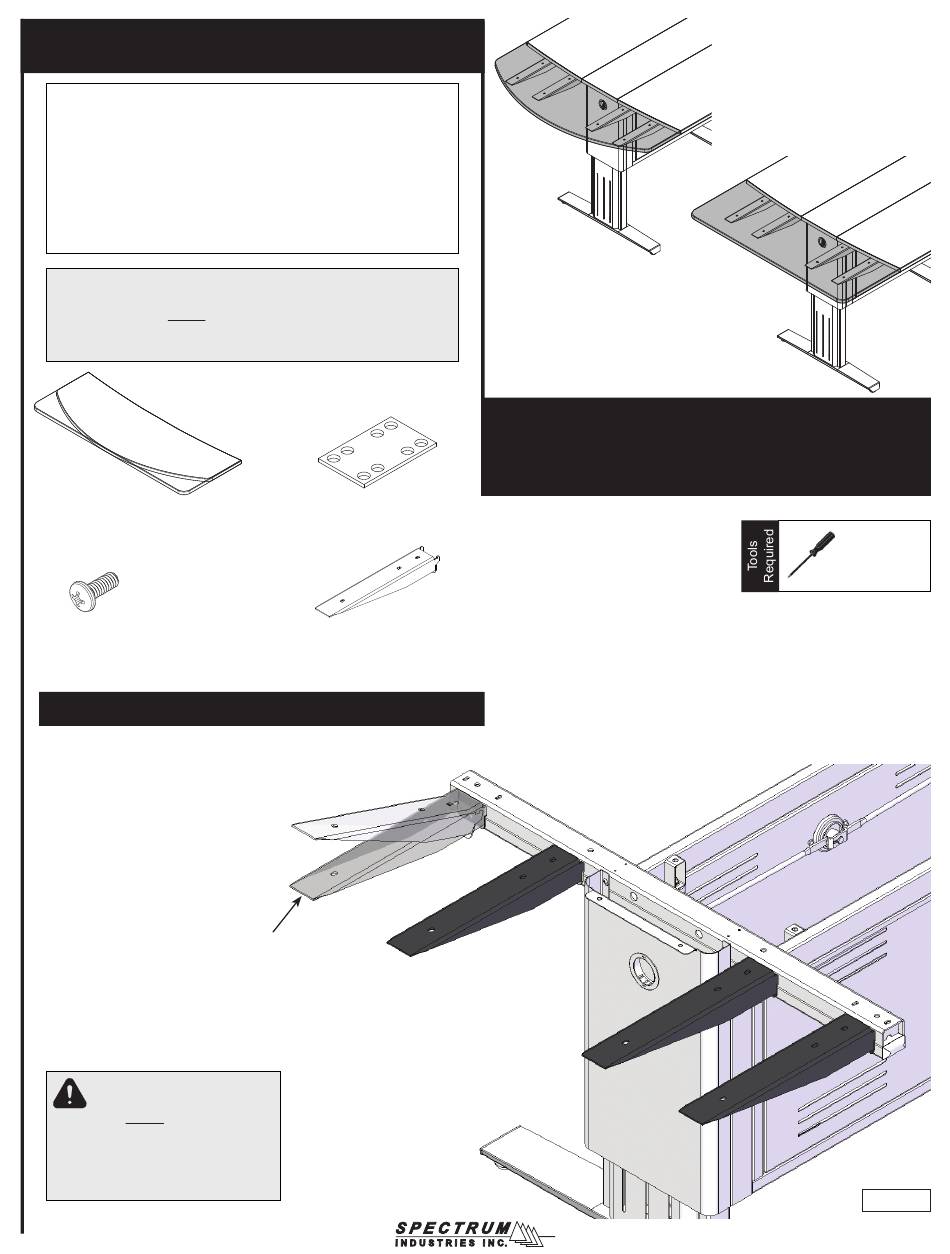

(1) worksurface
0115713 - curved worksurface
0115722 - rectangular worksurface
(24) 026064
1/4-20 x 5/8" PHMS
1. Install cantilever worksurface brackets
1. Make sure the table is upright. It may take 3-4 people to flip.
2. Tip the 4 cantilever end worksurface brackets while inserting
into the leg slots. Figure 1A.
worksurface
(4 required)
The end worksurface brackets
have to be installed into the
slots before any worksurfaces
are installed. The end worksurfaces
will be installed first, then the side
worksurfaces (step 3), then center
console panel.
(2) 036281
dual unit-to-unit bracket
(4) 0115718
cantilever worksurface
bracket
cantilever
bracket
37118
curved worksurface
End worksurface for InVision Access Table
37118 - Curved
37119 - Rectangular
37119
rectangular worksurface
Phillips
screwdriver
Figure 1A
0115715 Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Spectrum Industries 37118
Summary of Contents for Spectrum Industries 37118
- Page 1 If you have existing side worksurfaces and a center console panel installed, they will need to be removed. 37119 rectangular worksurface End worksurface for InVision Access Table 37118 - Curved 37119 - Rectangular (1) worksurface (2) 036281 0115713 - curved worksurface...
- Page 2 3. Set the end worksurface onto the brackets and align the mounting holes. Figure 1B. 4. Install two 1/4-20 x 5/8” PHM screws through each bracket to secure the end worksurface. Do not tighten completely. 5. Install one 1/4-20 x 5/8” PHM screw per bracket through the bracket and into the table leg. Do not tighten completely. 6.
