Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
Assembly tip: Do not tighten component fasteners com-
pletely until all have been installed. Keeping them loose
will help with alignment between parts during assembly.

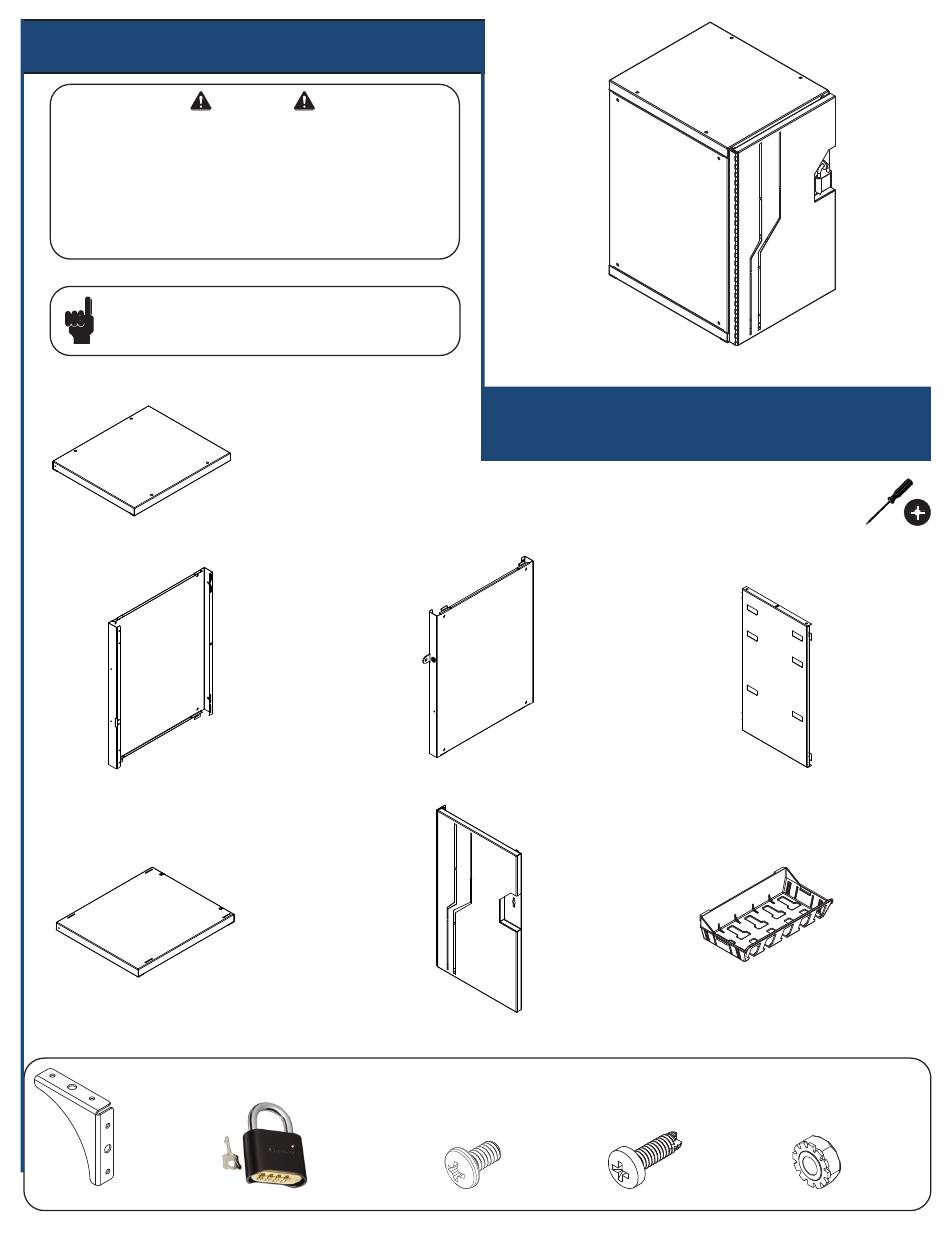

(2) 0160548
Corner
Bracket
Re-programmable 4-digit Combination Lock - 95536
(1) 0172177
Top panel
(labeled 'A')
(1) 0171994
Left side panel
(labeled 'B')
(1) 0172173
Base
(labeled 'D')
(1) 0190404
Re-programmable
A .3125" [7.9 mm]
padlock
B
1" [25.4 mm]
C .983" [25 mm]
D 2.07" [52.5 mm]
E
.987" [25.1 mm]
(1) 0171994
Right side panel assembly
(w/ hasp and magnet)
(labeled 'B')
(1) 0172231
Door Assembly
Parts Bag
(12) 035728
1/4-20 x 1/2"
PHMS

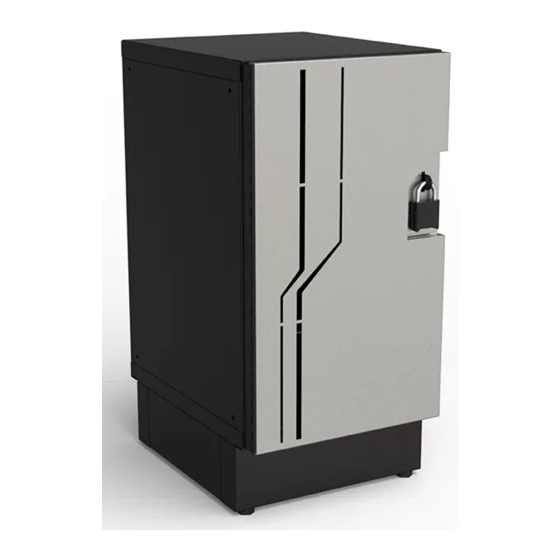

Esports Locker
37418
(12) 0100167
8-32 x 1/2" PH
Thrd ctg screw
0193702 Page 1 of 6
(1) 0171993
Rear Panel
(labeled 'C')
(1) 0119448
Plastic storage
tray
(4) 0106543
1/4-20 Keps
nut
Advertisement
Related Manuals for Spectrum Industries Esports 37418
Summary of Contents for Spectrum Industries Esports 37418
- Page 1 Assembly Instructions Assembly Instructions Important Before you begin, read and comply with all safety and operating instructions, and ensure all parts and correct quantities are included. Any parts damaged during shipment must be reported within 5 days of receipt. To report information regarding missing parts or damage, to purchase parts or accessories, or if you have any questions, please contact us.
- Page 2 Attach corner brackets to top panel 1. Attach each corner bracket to the top panel (labeled ‘A’) as shown with (2) 8-32 x 1/2” PH Thrd ctg screws. 2. Do not full tighten screws-they should be loose enough to allow some movement during assembly. Corner Brackets 8-32 x 1/2”...
- Page 3 Attach top and base panels 1. Align the tabs of the side panels with the top and base panel slots. 2. Push the panels down to lock tabs into place. Make sure all panels are aligned. 3. Install the remaining (2) 8-32 x 1/2” PH Thrd ctg screws in each corner bracket but do not tighten completely.
- Page 4 Connect lockers together i d e o - s e - t S i d i d e o - s e - t S i d Optional 95041 toekick Fasteners for Fasteners for side-to-side lower-to-upper connection connection 1/4-20 x 1/2” PHMS 1/4-20 Keps nut...
-
Page 5: Stacking Guidelines
Stacking Guidelines Anchored to wall (lockers bolted together) Free-standing back-to-back island (lockers bolted together) Wall anchoring Due to the wide variety of wall materials, wall anchor fasteners are NOT provided. Individual job conditions as well as state/local building codes will dictate the type of installation fasteners and Stacked 3 high on how the lockers must be anchored. - Page 6 • Se incluye una llave de cambio • Peso de la unidad: .55 lb [.25 kg] 1500 RIVER STREET, PO BOX 400, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2022 Spectrum Industries Inc., All rights reserved. 0193702 Page 6 of 6...
