5.0 Pressure Port Installation

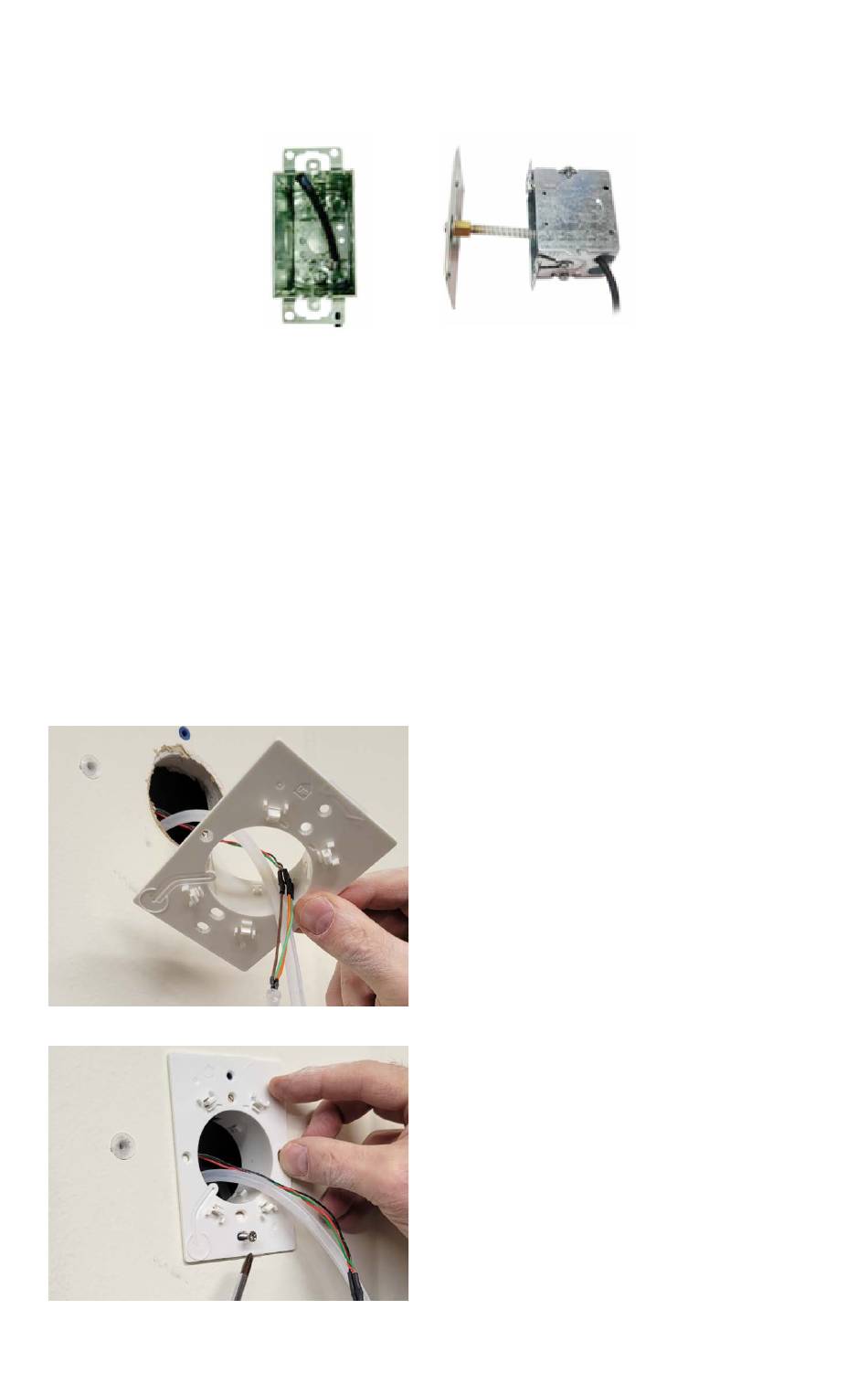

5.1 Standard Monitor and Quick Mount Pressure Pick Up Port Install

1. Install the supplied silicone tube (with integrated external spring) and attached barbed
tube adapter on the rear face of the RPS unit onto the end of the 0.25" field tubing. This
short length of tubing is used as a safety to prevent any kinking inside tight spaces. Add
your typical run of 1/8"ID x 1/4"OD tubing between the pressure pickup and the Setra Lite.
2. Screw RPS into electrical box or wall.
During final installation of the Pressure Pickup Port, careful observation should be made of
how the tubing gets pushed back into the wall for final faceplate mounting.

5.2 Dual Alert Pressure Pick Up Port Install

Note: The base unit should be fully installed. Tubing and wire lead from back of base unit
should be threaded into the box or hole prepared for the dual alert pressure pickup.
1. Thread the tubing and wire lead through
the mounting plate.
2. Secure the mounting plate with provided
mounting hardware based on installation
type (Direct wall or electrical box)
