Room Operation - Setra Systems setralite Installation & Operating Manual

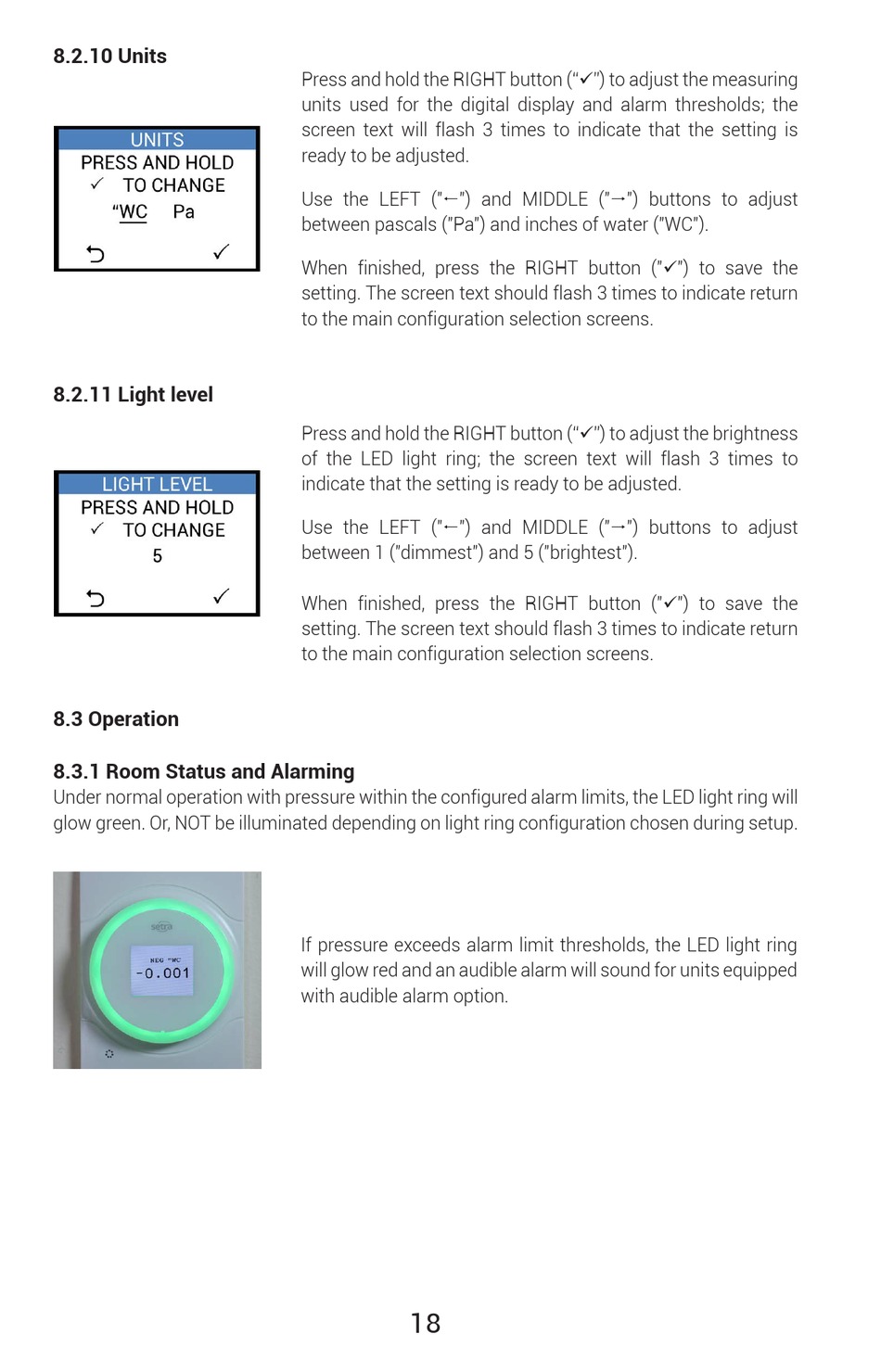

8.2.10 Units
8.2.11 Light level
8.3 Operation
8.3.1 Room Status and Alarming
Under normal operation with pressure within the configured alarm limits, the LED light ring will
glow green. Or, NOT be illuminated depending on light ring configuration chosen during setup.
Press and hold the RIGHT button ("") to adjust the measuring
units used for the digital display and alarm thresholds; the
screen text will flash 3 times to indicate that the setting is
ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust
between pascals ("Pa") and inches of water ("WC").
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
Press and hold the RIGHT button ("") to adjust the brightness
of the LED light ring; the screen text will flash 3 times to
indicate that the setting is ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust
between 1 ("dimmest") and 5 ("brightest").
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
If pressure exceeds alarm limit thresholds, the LED light ring
will glow red and an audible alarm will sound for units equipped
with audible alarm option.
18
