4.0 Installing Lite base unit (Permanent installations)

Note: Setra Lite should be installed, powered and operational for 30 minutes for warmup
and acclimation for one-time pressure sensing stabilization. If necessary, after the warmup,
units can be re-zeroed. Setra Lite contains a small air valve to allow for one-touch zeroing
via the configuration menu.

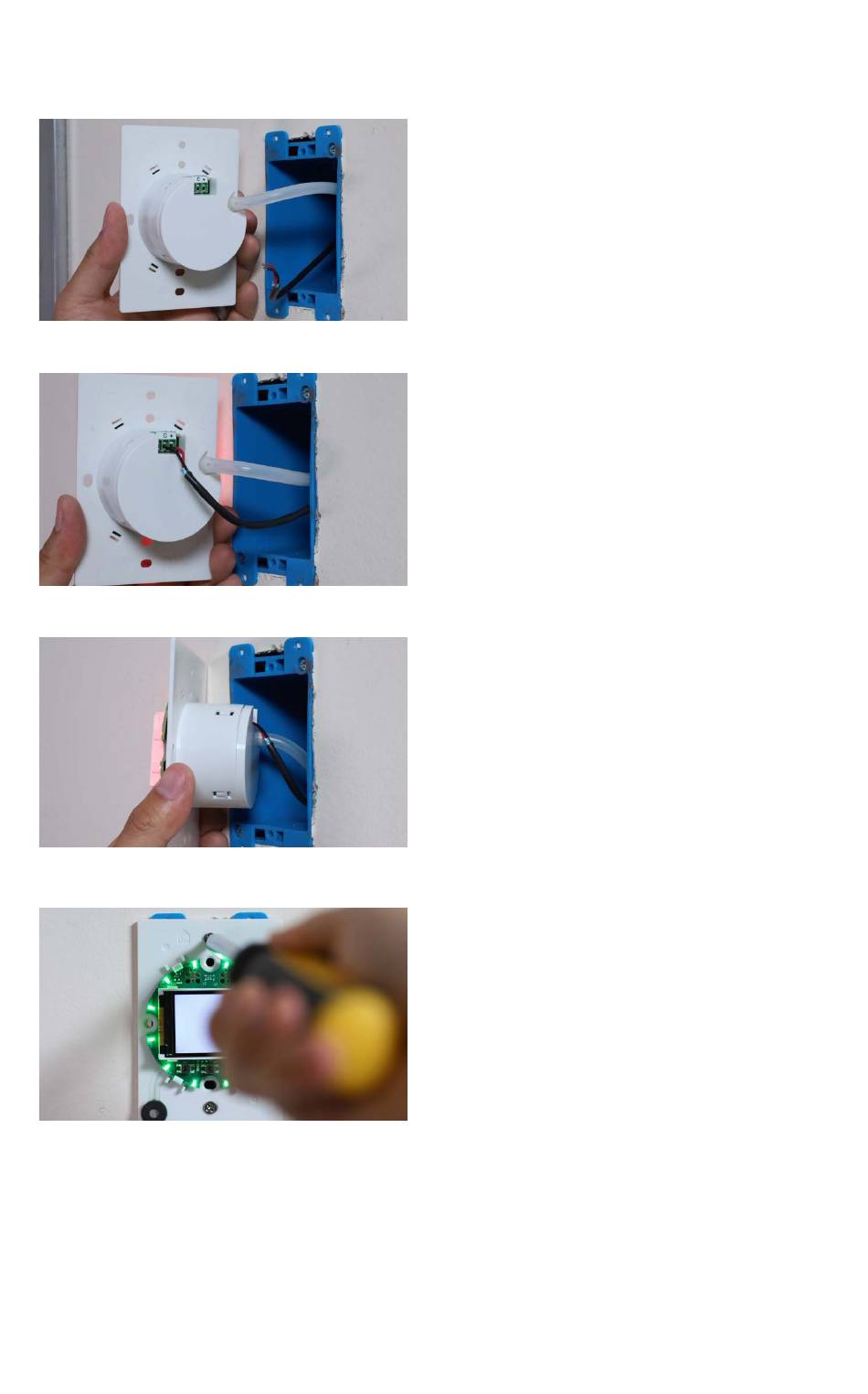

1. Connect pressure tubing from the
Pressure Pickup Port to the port on the
back of Setra Lite.
2. Connect wiring for power and analog
output (if required) per section 7.0
Dual Alert: This variant will have an
additional wire lead connected to the
back of the unit.
Thread the wire lead through the wall and
into the pressure pickup port box or hole
on the opposite side of the wall.
3. As you push the Setra Lite unit into the
electrical box, push the tubing into the
conduit tube or into the wall cavity.
4. Push Setra Lite into the enclosure and
secure with two (2) mounting screws.
5. When the home screen appears, Setra Lite
can be configured via 3 buttons located
below the LCD display on the circuit
board. See section 8.0 for configuration
instructions and details.
