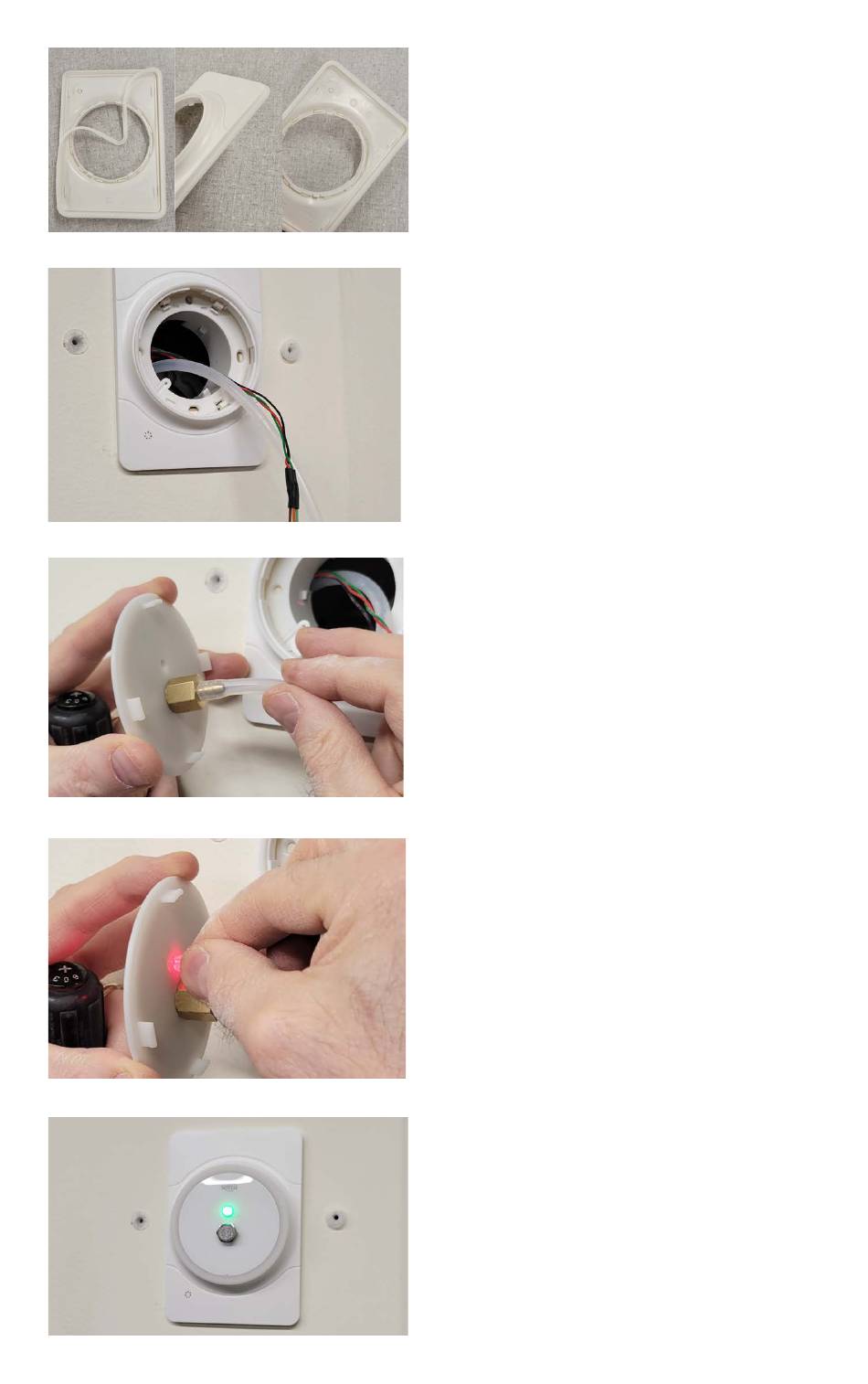

3. Prior to installing the faceplate, be sure
the rubber seal is properly installed on the
back of the faceplate.
4. Thread the tubing and wire lead through
the front cover and snap the front cover
into place.
Note: Press the plate in at a slight angle,
leading with the bottom edge
5. Push the open end of the supplied tubing
onto the port on the back of the dual alert
pressure pickup.
6. Press the LED wire lead into the open hole
in the center of the dual alert pressure
pickup until it firmly seats into the back of
the plate.
7. Careful not to kink the tubing or wire push
the pressure pickup lense into the center
of the front cover. It will snap it. Pay
attention to orientation ensuring the Setra
logo is properly oriented
