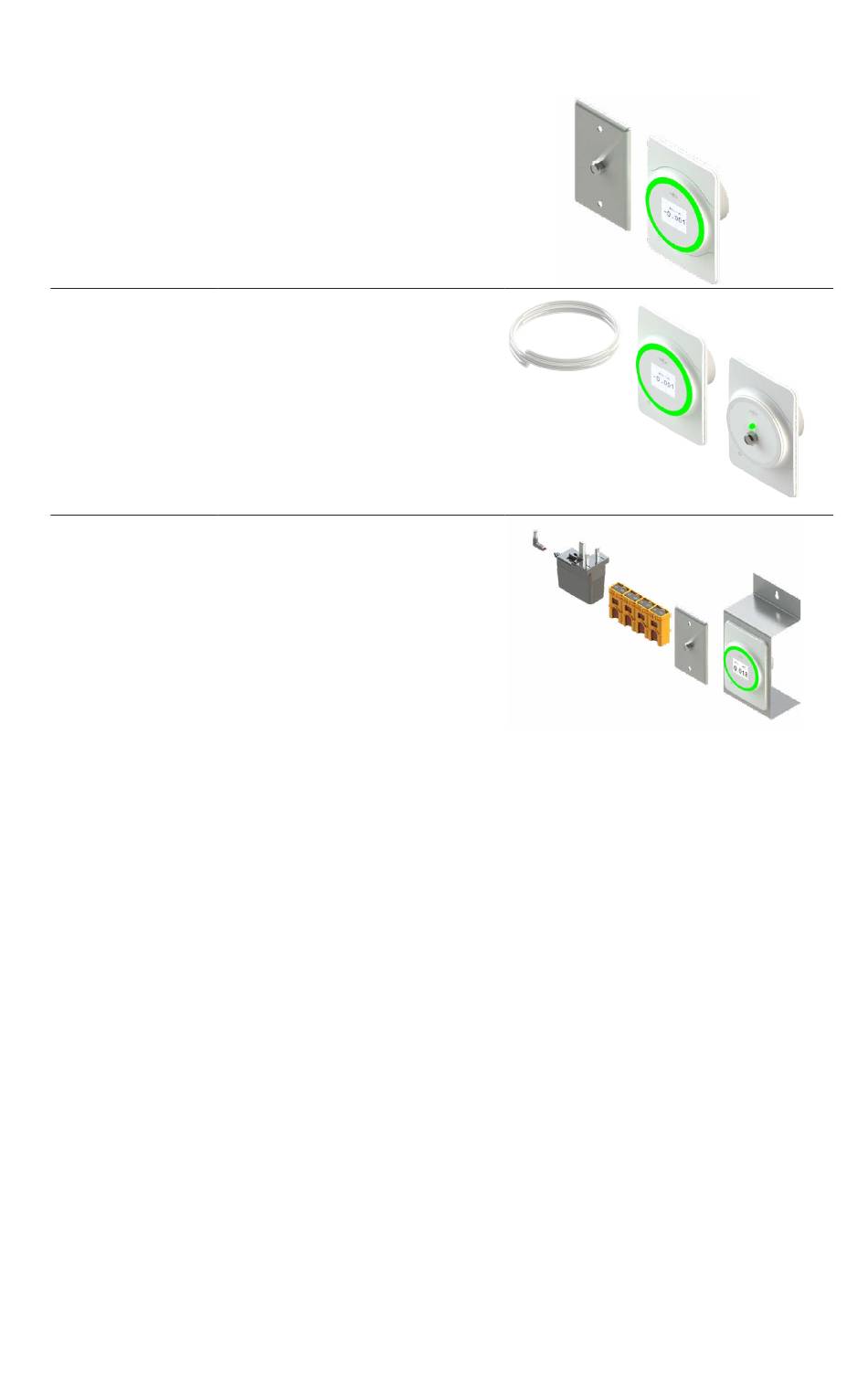

2.0 In the Box

Standard Monitor
Dual Alert
Quick Mount Kit

3.0 Rough-in installation (Wall Mount)

For Setra Lite to be installed correctly, the rough-in phase of the project must be completed
properly. This section will outline the specific considerations the Installer must pay attention
to so that the final wiring and commissioning will go smoothly.

3.1 Installer Provided Materials

The following is a list of parts required and supplied by installer for Setra Lite:
1. Power (18-22 AWG recommended) and signal wire
2. 1/8 in. ID silicon tubing to run from the room(s) Pressure Pickup Port(s) to the Setra Lite
monitor or external sensors. (Standard monitor only)
3. 24 VAC or VDC transformer, capacity rated for number of Setra Lite units powered
4. Single-gang electrical box, if opting not to install directly into wall
5. Single-gang electrical box, one per Pressure Pickup Port, if opting not to install directly
into wall
Setra Lite Base Unit - As specified by
customer
• Pressure Pickup Port (Setra RPS)
• Mounting Hardware
• Elbow Connectors
• 250ohm resistor (If wiring inputs for
4-20mA current loops)
Setra Lite Base Unit - As specified by
customer
• LED alarm indicator 18" pigtail
prewired
• Pressure Pickup Port (Matching
Dual Alert Variant)
• 18" of rubber connecting tubing
• Mounting Hardware
• Elbow Connectors
• 250ohm resistor (If wiring inputs for
4-20mA current loops)
Setra Lite Base Unit - As specified by
customer
• Pressure Pickup Port (Setra RPS)
• Battery Pack
• AC Adapter with 6-foot cord
• Mounting bracket
5
