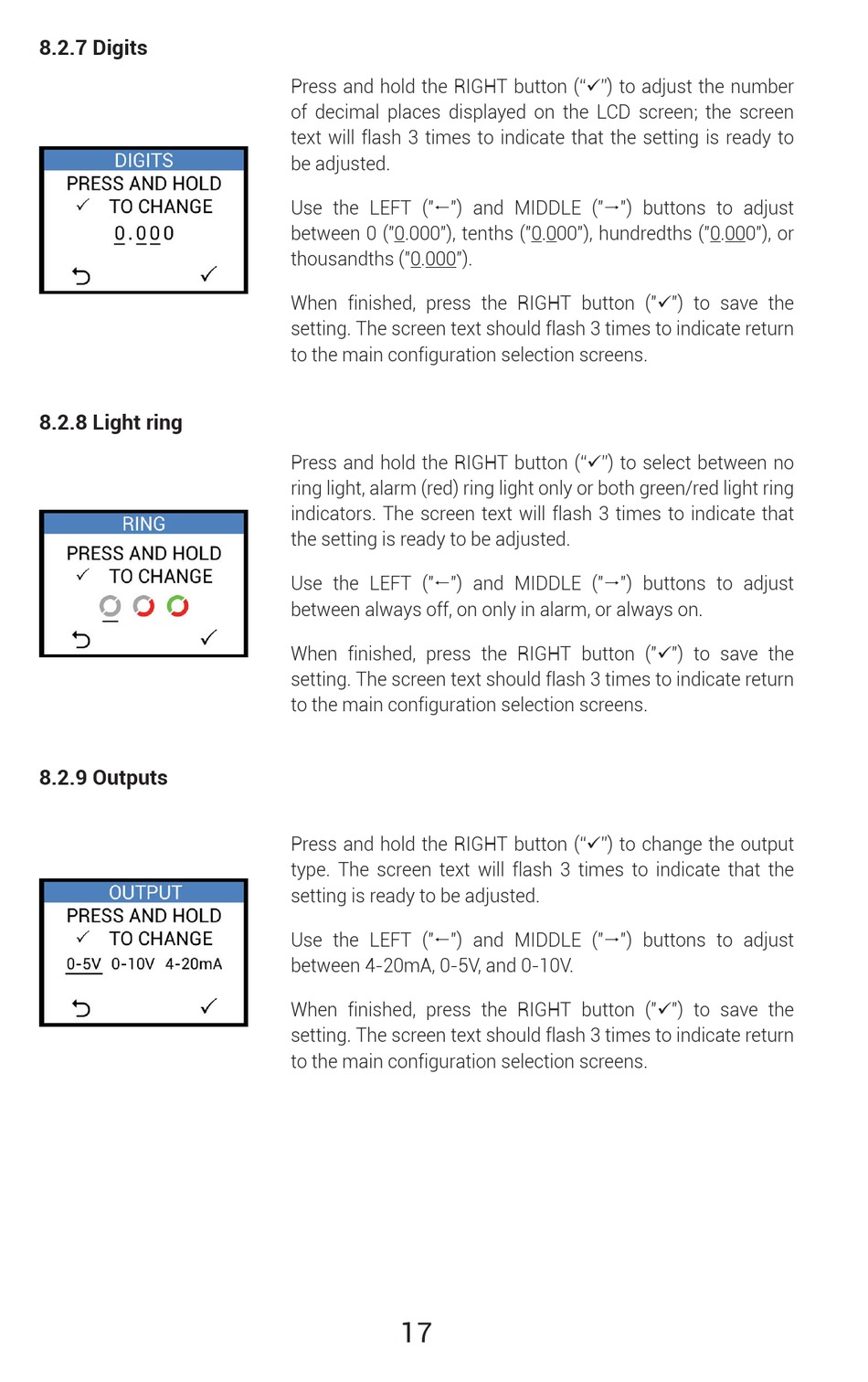

8.2.7 Digits
8.2.8 Light ring
8.2.9 Outputs
Press and hold the RIGHT button ("") to adjust the number
of decimal places displayed on the LCD screen; the screen
text will flash 3 times to indicate that the setting is ready to
be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust
between 0 ("0.000"), tenths ("0.000"), hundredths ("0.000"), or
thousandths ("0.000").
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
Press and hold the RIGHT button ("") to select between no
ring light, alarm (red) ring light only or both green/red light ring
indicators. The screen text will flash 3 times to indicate that
the setting is ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust
between always off, on only in alarm, or always on.
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
Press and hold the RIGHT button ("") to change the output
type. The screen text will flash 3 times to indicate that the
setting is ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust
between 4-20mA, 0-5V, and 0-10V.
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
