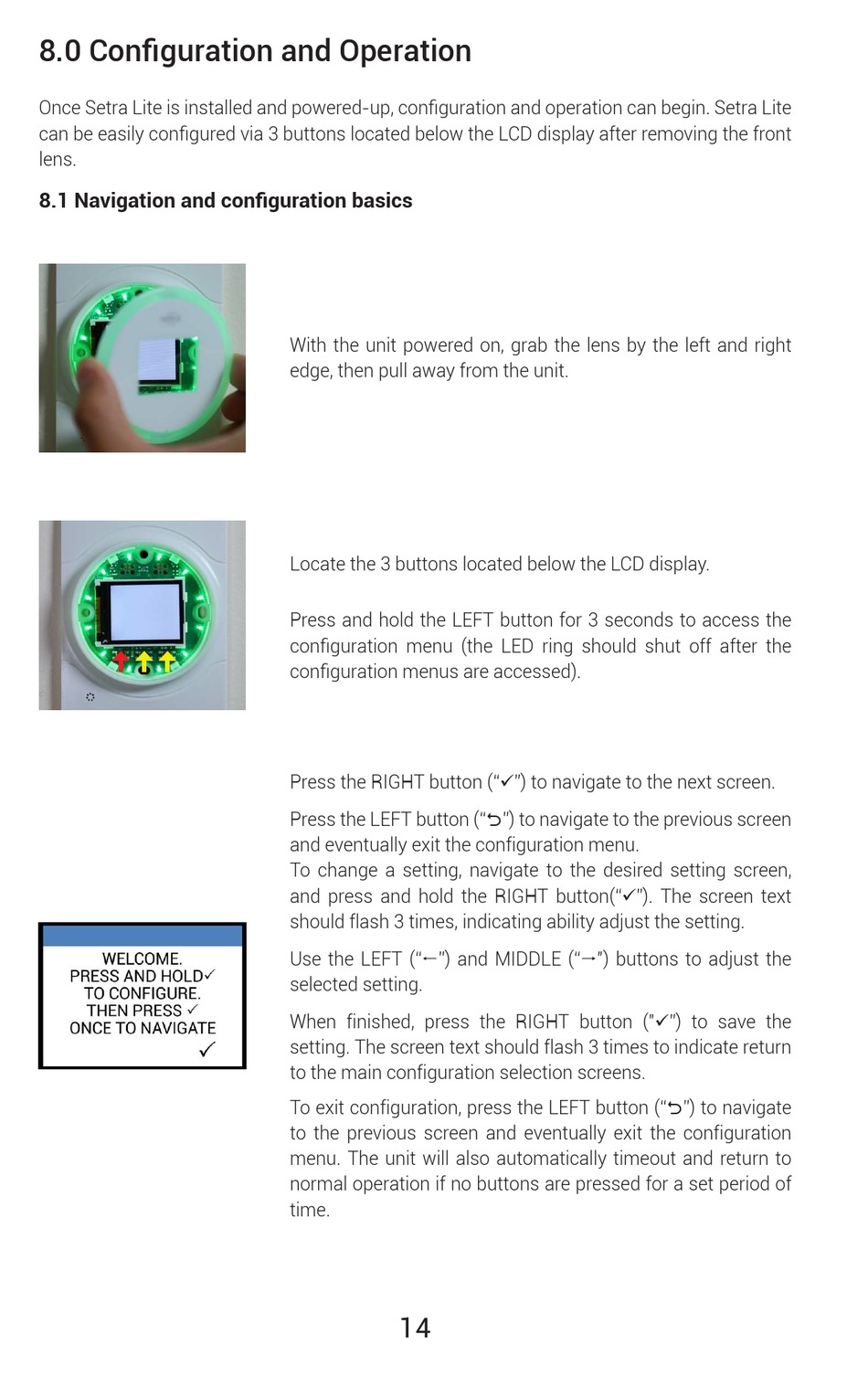

8.0 Configuration and Operation

Once Setra Lite is installed and powered-up, configuration and operation can begin. Setra Lite
can be easily configured via 3 buttons located below the LCD display after removing the front
lens.

8.1 Navigation and configuration basics

With the unit powered on, grab the lens by the left and right
edge, then pull away from the unit.
Locate the 3 buttons located below the LCD display.
Press and hold the LEFT button for 3 seconds to access the
configuration menu (the LED ring should shut off after the
configuration menus are accessed).
Press the RIGHT button ("") to navigate to the next screen.
Press the LEFT button ("") to navigate to the previous screen
and eventually exit the configuration menu.
To change a setting, navigate to the desired setting screen,
and press and hold the RIGHT button(""). The screen text
should flash 3 times, indicating ability adjust the setting.
Use the LEFT ("") and MIDDLE ("") buttons to adjust the
selected setting.
When finished, press the RIGHT button ("") to save the
setting. The screen text should flash 3 times to indicate return
to the main configuration selection screens.
To exit configuration, press the LEFT button ("") to navigate
to the previous screen and eventually exit the configuration
menu. The unit will also automatically timeout and return to
normal operation if no buttons are pressed for a set period of
time.
