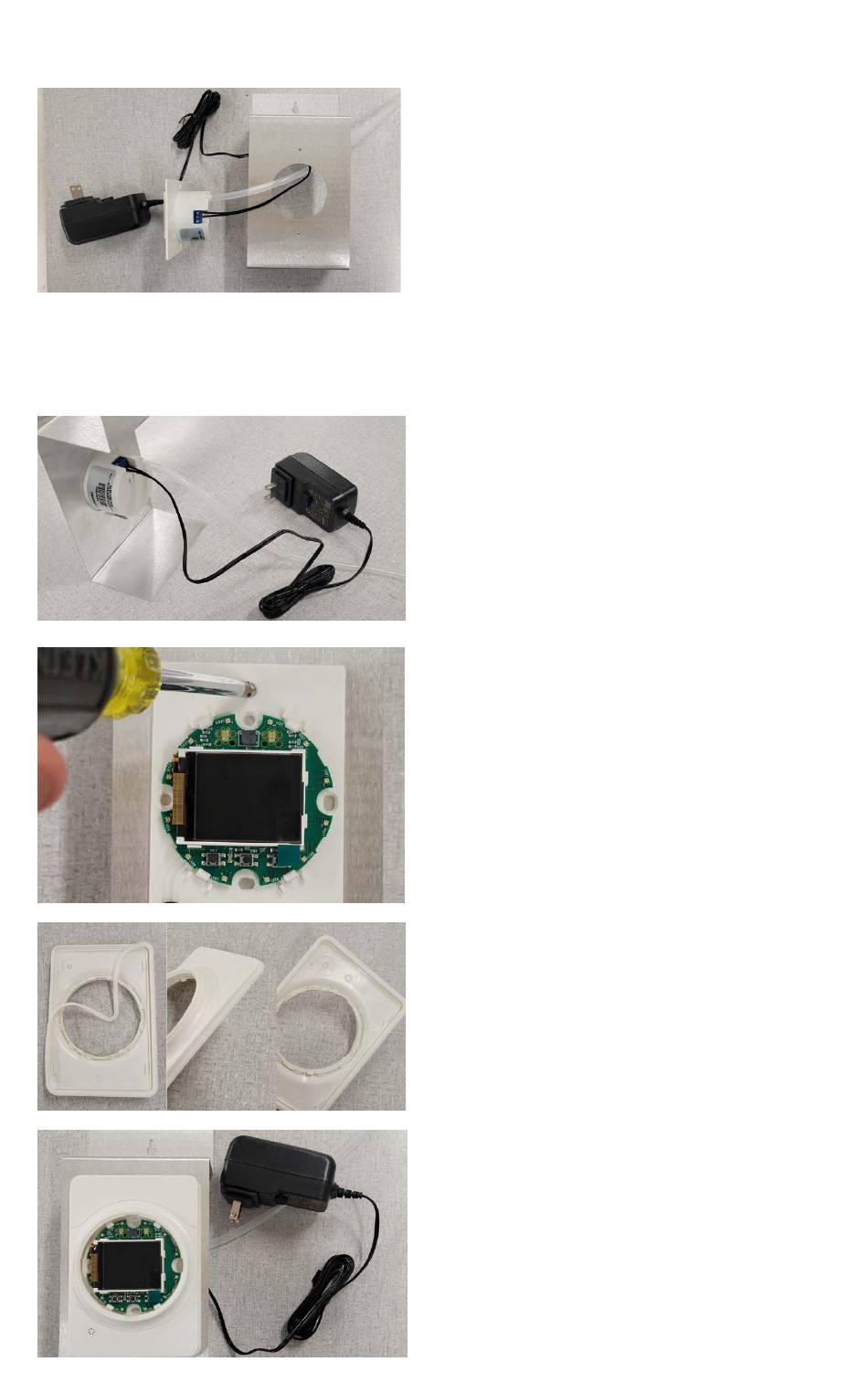

6.0 Quick Mount Installation
1. Prepare the wall for the pressure pick up
port as defined in section 3.2
Note: Pressure pick up port can also be
left loose and placed on a surface in the
room being monitored, it does not need
to be installed in the wall
2. Install the pressure pick up port as defined
in section 5.1
3. Thread the pressure tubing and power
wire from transformer or battery through
the hole in the quick mount plate.
4. Connect pressure tubing from the
Pressure Pickup Port to the port on the
back of Setra Lite.
5. Connect analog output (if required) and
transformer (Shown left) or battery pack
per wiring diagram in section 7
Note: Building 24V power can also be
applied if available.
6. Install the Setra Lite base unit housing
into the metal quick mount bracket with
the provided machine screws.
7. Prior to installing the faceplate, be sure
the rubber seal is properly installed on the
back of the faceplate.
8. Install the faceplate by firmly pressing it
into place over the base unit housing.
Note: Press the plate in at a slight angle,
leading with the bottom edge.
