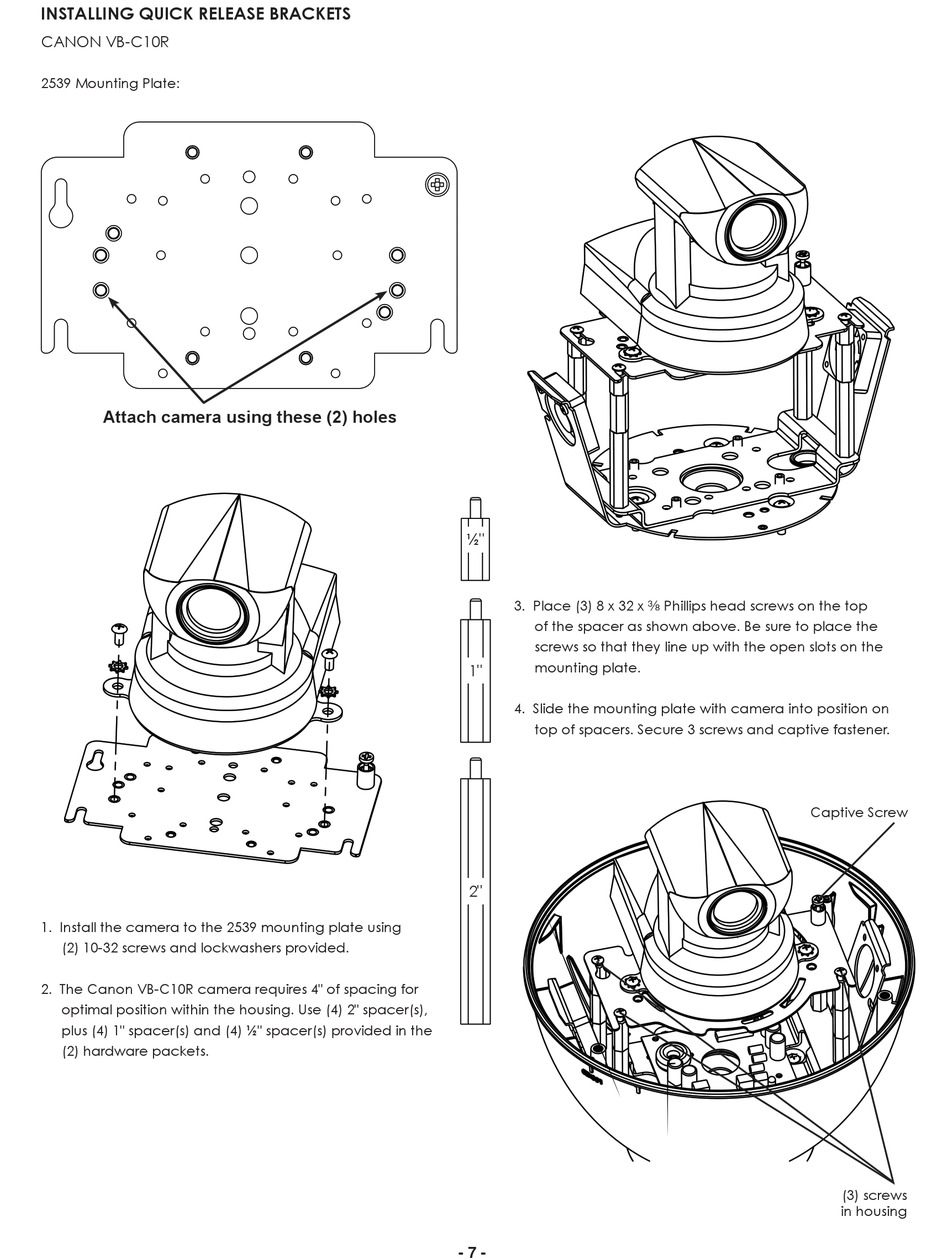

INSTALLING QUICK RELEASE BRACKETS
CANON VB-C10R
2539 Mounting Plate:
Attach camera using these (2) holes
1. Install the camera to the 2539 mounting plate using
(2) 10-32 screws and lockwashers provided.
2. The Canon VB-C10R camera requires 4" of spacing for
optimal position within the housing. Use (4) 2" spacer(s),
plus (4) 1" spacer(s) and (4) ½" spacer(s) provided in the
(2) hardware packets.
½"
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
1"
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
2"
- -
Captive Screw
(3) screws
in housing
