© 2009, Videolarm, Inc. All Rights Reserved
F D W 7

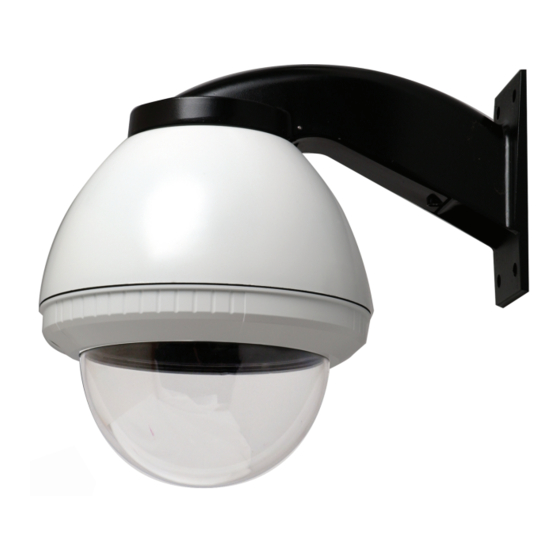

FusionDome™ Series
Installation and Operation Instructions for the following models:
FDW7
Before attempting to connect or operate this product,
please read these instructions completely.
© 2009, Videolarm, Inc. All Rights Reserved
www.videolarm.com
CERTIFIED
81-IN5324
02-02-2009
Advertisement
Table of Contents
Related Manuals for Moog Videolarm FDW7 FusionDome Series
Summary of Contents for Moog Videolarm FDW7 FusionDome Series

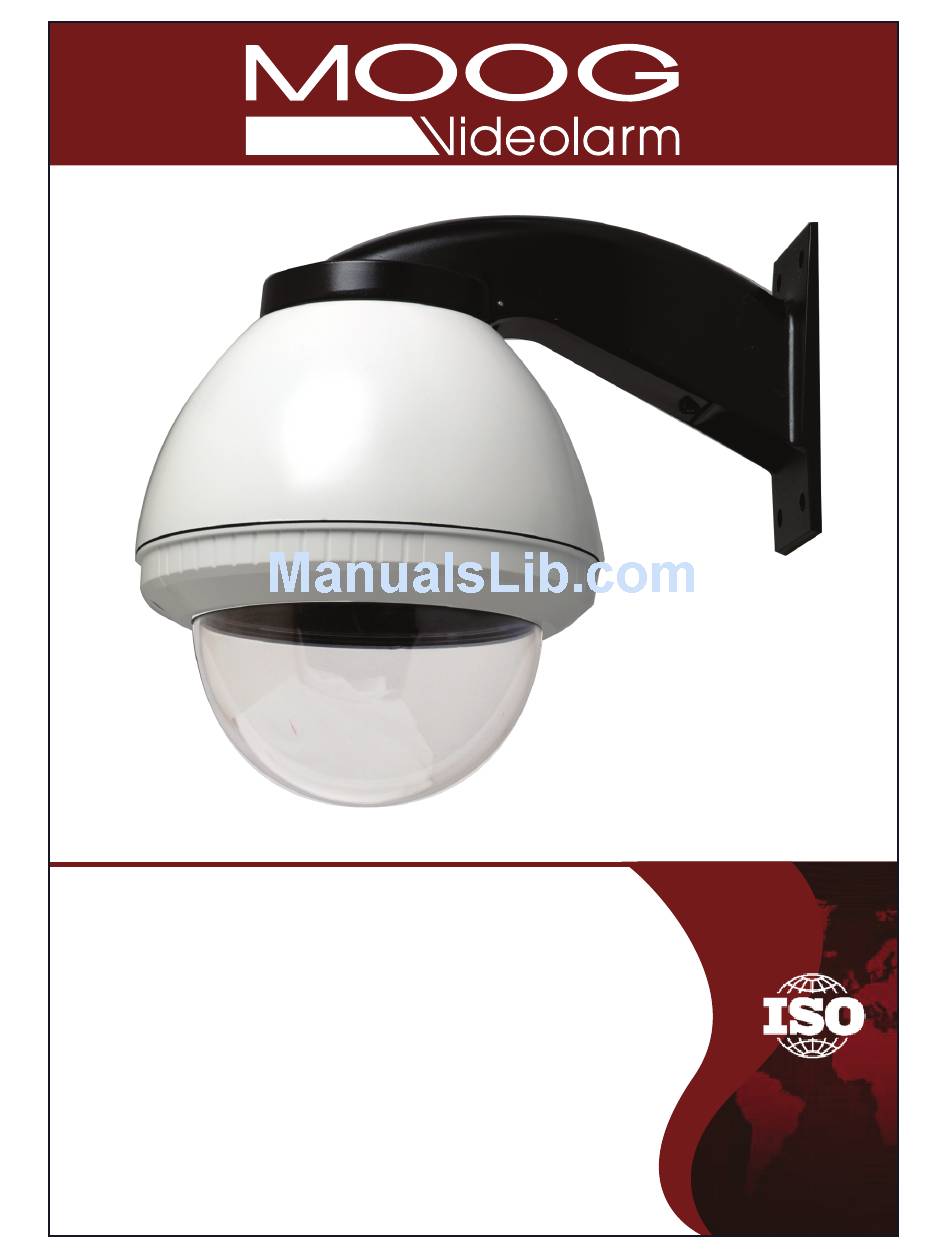

- Page 1 © 2009, Videolarm, Inc. All Rights Reserved F D W 7 FusionDome™ Series www.videolarm.com Installation and Operation Instructions for the following models: FDW7 CERTIFIED © 2009, Videolarm, Inc. All Rights Reserved Before attempting to connect or operate this product, 81-IN5324 please read these instructions completely.
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. CAUTION 2. Retain Instructions - The safety and operating instructions should be retained for future reference. RISK OF ELECTRIC SHOCK! 3.
-
Page 3: General Instructions
DESCRIPTION: INSTALLING QUICK RELEASE BRACKET AND PAN/TILT CAMERA ASSEMBLY (ALL MODELS) The FDW7 Housing is a Vandal Resistant Housing especially de- signed for integrated pan/tilt units. The housing top is made of high 1. Open the housing by loosening the screw on the front of the dome ®... -
Page 4: Installing The Housing Assembly
INSTALLING THE HOUSING ASSEMBLY INSTALLING OPTIONAL PENDANT MOUNT FOR WALL MOUNT, FDW7 1. This unit includes a 1 1/2" NPT housing for a standard 1 1/2" NPT pipe. The FD7 can be used with other brackets A wall mount bracket comes standard with this unit, and a designed with 1 1/2"... - Page 5 Wiring Color Code 24k VAC Wiring Distances Power and Control Inputs The following are the recommended maximum distances for 24 VAC (Outside of housing) with a 10% voltage drop (10% is generally the maximum allowable voltage drop for AC powered devices). POWER Wire Gauge Total vA...
- Page 6 INSTALLING VARIOUS MANUFACTURER'S QUICK RELEASE BRACKETS JVC: The JVC unitized camera requires use of the adapter bracket supplied in the housing packet. Attach (4) of the Fixed Bracket: The housing is provided with (2) 10 x 32 insert standoffs to the main housing bracket. Put the adapter for mounting a fixed FM3 bracket.
- Page 7 INSTALLING VARIOUS MANUFACTURER'S QUICK RELEASE BRACKETS - cont. Pelco Spectra Dome™: This bracket attaches directly to the main housing bracket. Align as shown. Note the position of the blowers on the flat areas of the quick-release. Secure in place using (3) 6 x 32 x 3/8 bolts and star washers.
- Page 8 FDW7 / FDW7N - Exploded View for Replacement Parts PACKET ASSEMBLY Network Version Fixed Housings Only - 8 - - 8 -...
-
Page 9: Replacement Parts List
FDW7 / FDW7N - Replacement Parts List Part Number Description RPFD701 LOWER TRIM RING FD7T TINTED REPLACEMENT CAPSULE FD7C CLEAR REPLACEMENT CAPSULE RPFD703 DOME CLAMPING BRACKET RPFD072 24 VAC HEATER RPFD080 (12 VDC) BLOWER (USER IN 24V HOUSINGS) RPFD060 CAMERA BRACKET RPRH708 CAMERA BRACKET (FIXED MODELS ONLY) RPFD050 (MODEL FD7HB) - Page 10 Mounting Template R .733 2.132 5.500 1.537 2.981 2.000 3.250 - 10 -...
-
Page 11: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supples, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
