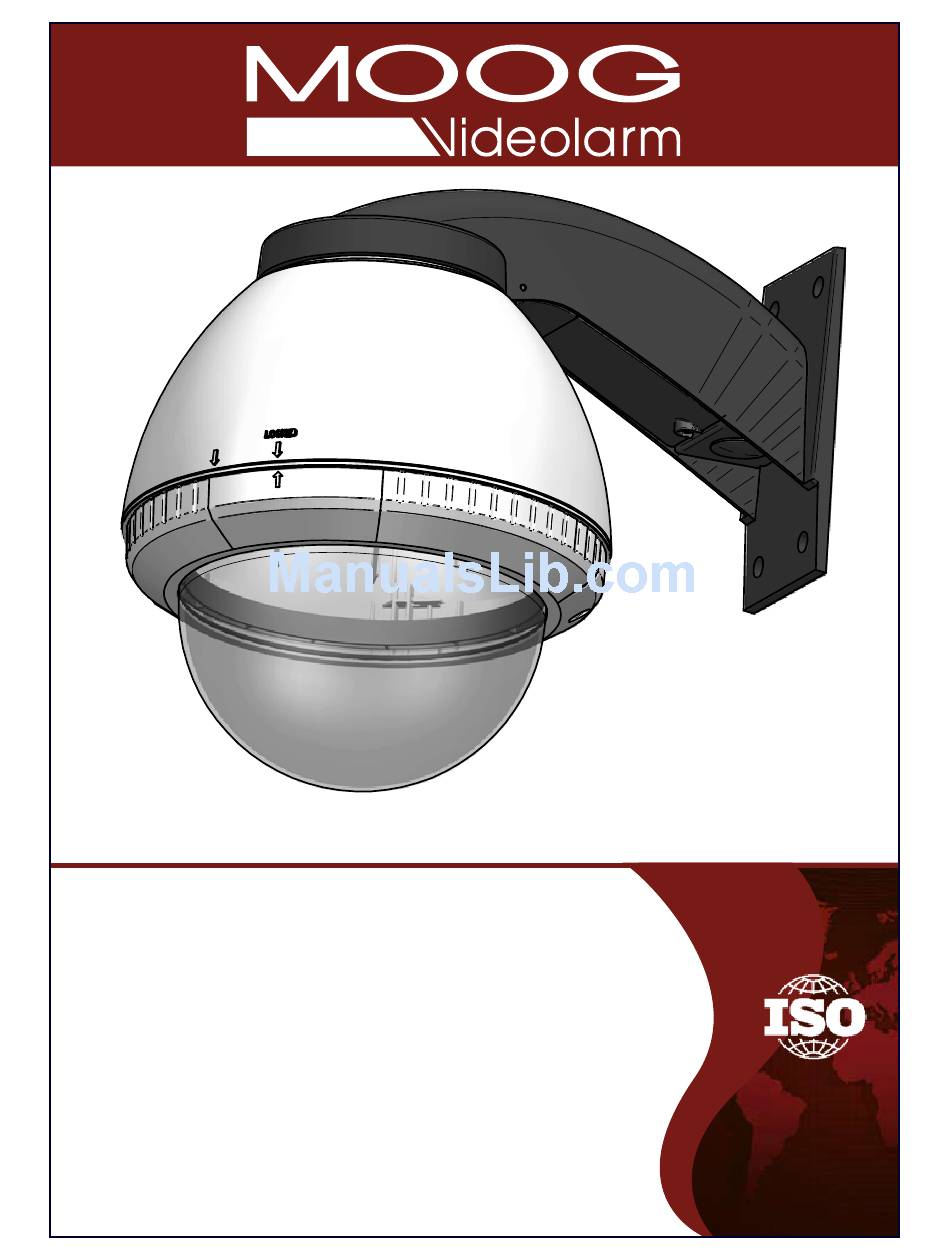

© 2009, Videolarm, Inc. All Rights Reserved
FDW7C12N-3
Outdoor PTZ Fusion Dome Mount
Installation and Operation Instructions for the following models:
FDW7C12N-3
IP Network Ready 7" Outdoor FusionDome PTZ Camera System
with 23x zoom Day/Night camera, wall mount, MPEG-4/ MJPEG
video compression, full D1. Clear dome, with 12VDC input,
heater/blower
FDP7C12N-3
IP Network Ready 7" Outdoor FusionDome PTZ Camera System with
23x zoom Day/Night camera, pendent mount, MPEG-4/ MJPEG video
compression, full D1. Clear dome, with 12VDC input, heater/blower
FDW7C12S-3
(Analog Version) 7" Outdoor FusionDome PTZ Camera System with
23x zoom Day/Night camera, wall mount, MPEG-4/ MJPEG video
compression, full D1. Clear dome, with 12VDC input, heater/blower
FDP7C12S-3
(Analog Version) 7" Outdoor FusionDome PTZ Camera System
with 23x zoom Day/Night camera, pendent mount,
MPEG-4/ MJPEG video compression, full D1. Clear dome,
with 12VDC input, heater/blower
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual.
www.videolarm.com
CERTIFIED
81-IN5423
01-09-2009
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm SView FDP7C12N-3
Summary of Contents for Moog Videolarm SView FDP7C12N-3
- Page 1 © 2009, Videolarm, Inc. All Rights Reserved FDW7C12N-3 Outdoor PTZ Fusion Dome Mount Installation and Operation Instructions for the following models: FDW7C12N-3 IP Network Ready 7” Outdoor FusionDome PTZ Camera System with 23x zoom Day/Night camera, wall mount, MPEG-4/ MJPEG video compression, full D1.
- Page 2 IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance.
- Page 3 1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Electrical Specifications Power 12VDC Class 2 Only 12 VDC 50 WATTS Accessories: Heater: 20 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 28 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 12VDC 50 Vatios De Accesorios: Calentador: 20 Watts, Blower: 2 Vatio Energía De la Cámara fotográfica De : (Véase Las Especificaciones De la Cámara fotográfica): 28 Vatios... - Page 5 Securely mount unit to wall or to appropriate adapter bracket. • Monte con seguridad la unidad a la pared o al soporte apropiado del adaptador. • Montez solidement l'unité au mur ou à la parenthèse appropriée d'adapteur. • Bringen Sie sicher Maßeinheit zur Wand oder zum passenden Adapterhaltewinkel an.
- Page 6 Securely mount bracket to wall. Pull wiring through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado a través del soporte y del ojal de la posición según lo demostrado. • Solidement parenthèse de bâti à murer. Tirez le câblage par la parenthèse et le canon isolant de position comme montré.
- Page 7 Loop the lanyard over the set screw to temporarily hold housing. • Coloque el acollador sobre el tornillo de presión para celebrar temporalmente la cubierta. • Faites une boucle la lanière au-dessus de la vis de réglage pour tenir temporairement le logement. •...
- Page 8 Power and Control Inputs (Outside of Housing) RJ45 (Large) POWER (Small) ALARM POWER Make the appropriate male and female connections. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables. •...
- Page 9 Remove Pan/Tilt from shipping carton. Install in base bracket in housing. • Quite Pan/Tilt del cartón del envío. Instale en soporte bajo en la cubierta. • Enlevez Pan/Tilt du carton d'expédition. Installez dans la parenthèse basse dans le logement. • Entfernen Sie Pan/Tilt vom Verschiffenkarton. Bringen Sie in niedrigen Haltewinkel im Gehäuse an.
- Page 10 Fasten down the dome with a Phillips screwdriver. • Sujete abajo de la bóveda con un destornillador Phillips. • Attachez en bas du dôme avec un tournevis Phillips. • Befestigen Sie sich hinunter die Haube mit einem Kreuzkopfschraubenzieher. • Prenda abaixo a abóbada com uma chave de fenda Phillips.
-
Page 11: Replacement Parts List
Replacement Parts List 1 1 1 Part Number RPFD7501 FD7T FD7C RPFD703 RPFD07/12 RPFD080 RPFD060 RP40PCCM0D01 RPFD040 RPFD709 RPFD2612 WM10 SD0170 SD0180 SD0160 RPPKE1100 RPPKH2090 RPPKH2071 RPPKE1125 RPTRN02 RPVL2857 RP76VL385A RP96PSGK08 RPVL3097 RP76P0F060E RP7OP14015 FDW7C12N-3 FDP7C12N-3 FDW7C12S-3 FDP7C12S-3 Description LOWER TRIM RING TINTED REPLACEMENT CAPSULE CLEAR REPLACEMENT CAPSULE DOME CLAMPING BRACKET... -
Page 12: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...
