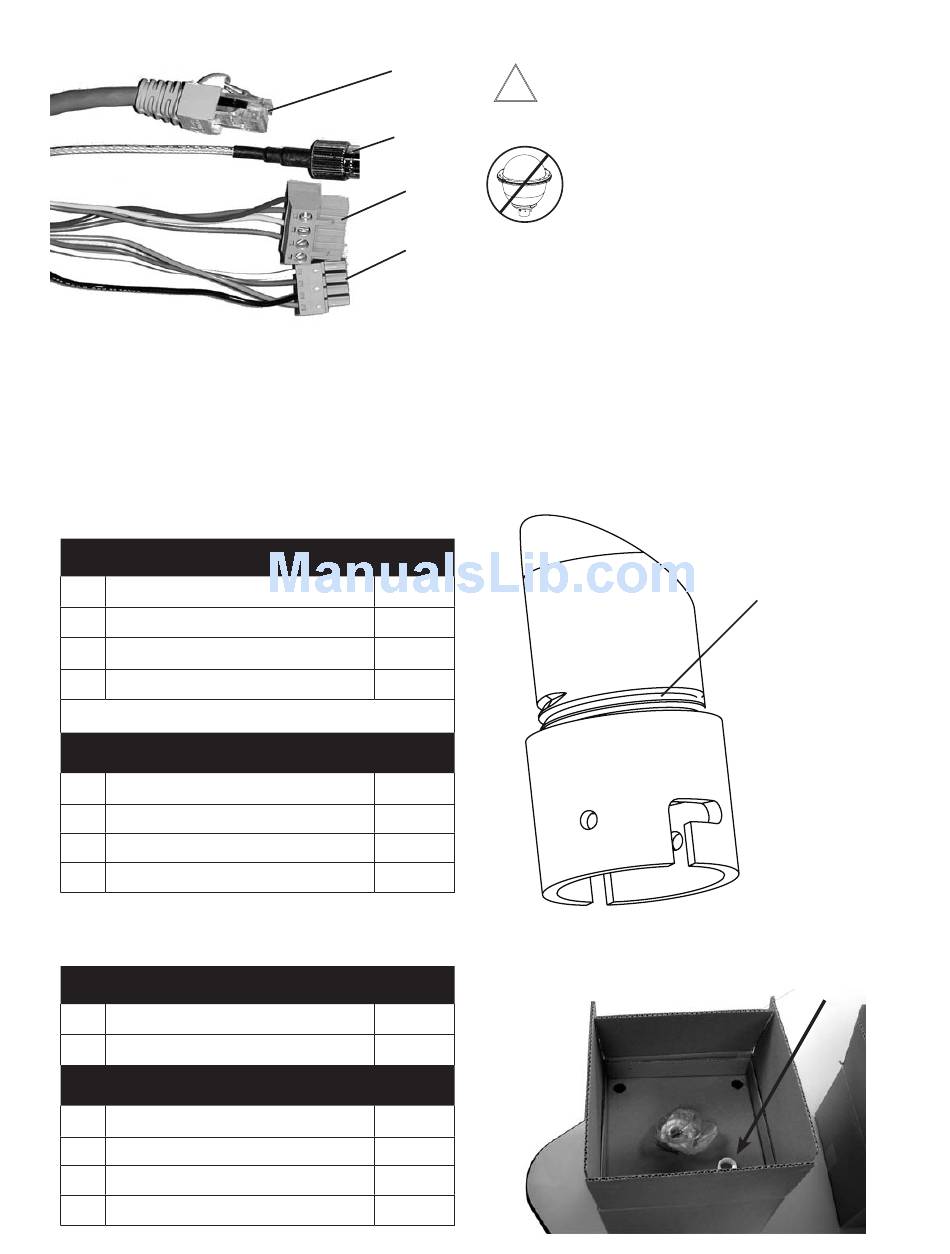

WIRING INSTRUCTIONS

Wiring Color Code Power and Control Inputs
AFTER CAMERA INSTALLATION
Make inside housing wiring connections following Chart B
below.
Chart A Wiring Color Code
Power and Control Inputs (Outside of housing)
POWER
1 Camera Power (+12 VDC)
2 Camera Power (-12 VDC)
3 Accessory Power (+12 VDC)
4 Accessory Power (-12 VDC)
CONTROL
RJ45 Ethernet Connector
ALARMS
1 Alarm 1
2 Alarm 2
3 Alarm 3
4 Common
Chart B Power and Control Outputs (Inside of housing)
POWER
1 Camera Power (+12 VDC)
2 Camera Power (-12 VDC)
ALARMS
1 Alarm 1
2 Alarm 2
3 Alarm 3
4 Common
INSTALLING THE HOUSING ASSEMBLY:
Be sure the bracket is properly and securely mounted
RJ45
!
to a supporting structure capable of rigidly holding
the weight of the entire unit.
BNC
(Large)
Power
(Small)
Alarms
INSTALLING PENDANT MOUNT
1. This unit includes a 1½" NPT housing for a standard 1½"
NPT pipe. The housing can be used with other brackets
designed with 1½" male pipe threads, such as the WM20G
wall mount bracket.
2. Attach the housing coupling.
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
A small roll of Teflon tape is provided with all pendant units.
Red
Orange
Blue
Violet
Gray
White
- 0 -
NOTE: This unit is designed for operation in an
upright position. Installing the housing
upside down may cause damage to
the internal equipment, and will void the
warranty.
NOTE: Pipe threads should be clean and rust-
free. Use the Teflon ™
the housing on the threads.
Add thread
sealing tape
tape included with
Teflon Tape
