© 2011, Moog Videolarm, Inc. All Rights Reserved
F D W 7 5 C 1 2 N

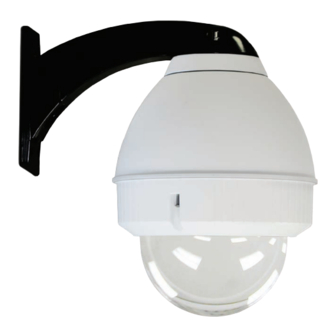

FusionDome™ (Outdoor Wall Mount with Housing)
Installation and Operation Instructions for the following models:
FDW75C12N
IP Network Ready 7" Outdoor dome housing with wall mount, clear dome, with
12Vdc input, heater/blower, fan an IP Network PTZ camera.
FDP75C12N
IP Network Ready 7" Outdoor dome housing with pendant mount, clear dome, with
12Vdc input, heater/blower, fan an IP Network PTZ camera.
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5481 Instruction Manual.
www.videolarm.com
W81-IN5329
05-08-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm FDW75C12N
Summary of Contents for Moog Videolarm FDW75C12N
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved F D W 7 5 C 1 2 N FusionDome™ (Outdoor Wall Mount with Housing) www.videolarm.com Installation and Operation Instructions for the following models: FDW75C12N IP Network Ready 7” Outdoor dome housing with wall mount, clear dome, with 12Vdc input, heater/blower, fan an IP Network PTZ camera.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Contents of Box Electrical Specifications FDW75C12N Power 12VDC Class 2 Only 12VDC 21 Watts Accessories: Heater: 20 Watts, Blower: 1 Watt Camera Power: 40 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 12VDC 21 vatios Accesorios: Calentador: 20 Vatios, Soplador: 1 vatio Energía De la Cámara fotográfica:... - Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
- Page 6 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre. • Zu sich verriegeln, nach rechts drehen. •...
- Page 7 Complete all wiring connections Secure lanyard to lanyard clip. (coax wire not supplied). • Termine todas las conexiones del cableado • Asegure el acollador al clip del acollador. (alambre coaxil no suministrado). • Accomplissez tous les raccordements de câblage • Fixez la lanière à l'agrafe de lanière. (fil coaxial non fourni).
- Page 8 To loosen - unscrew bolts ½” turn counter Secure with ¼” Allen wrench. clockwise. • Para aflojar - desatornille a la derecha contrario de la vuelta • Asegure con la llave Allen del ¼”. del ½ de los pernos”. • Pour se desserrer - dans le sens des aiguilles d'une montre de •...
- Page 9 Power and Control Inputs (Inside of Housing) POWER Camera Power (+12 VDC) Camera Power (-12 VDC) Orange The beam angle may be adjusted on the These are recommended maximum distances Make the appropriate male and female connections. pre-run cables. for 12VDC with a 10% voltage drop. Indoor model does not include bottom of the unit.
- Page 10 Fasten down the dome with a Phillips Wipe the dome clean. screwdriver. • Sujete abajo de la bóveda con un destornillador • Limpie la bóveda limpia. Phillips. • Attachez en bas du dôme avec un tournevis • Essuyez le dôme. Phillips.
-
Page 11: Replacement Parts List
Replacement Parts List FDW75C12N PART NUMBER DESCRIPTION FD7C CLEAR REPLACEMENT CAPSULE 1A FD7T TINTED REPLACEMENT CAPSULE RPFD7501 LOWER TRIM RING RPFD703 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080... - Page 12 © 2011, Moog Videolarm, Inc. All Rights Reserved www.videolarm.com C a m e r a M o u n t i n g I n s t r u c t i o n s W81-IN5481 01-19-2012...
- Page 13 NOTE: For all RHP and RHW models a ½” (13mm) Für alles RHP und RHW modelliert eine ½“ spacer is added for additional height. (13mm) Distanzscheibe hinzugefügt für zusätzliche Höhe. Deutsch English Para todo el RHP y RHW modela un Para todo o RHP e RHW modela um espaciador del ½”...
- Page 14 ARECONT: AV8185 / AV8365 / AV20185 / AV20365 • Mounting holes (4-#8 x ¾”) (75mm) 1” 2” AVIGILON: HD-Dome Series • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 15 AXIS: 215 • Mounting holes (4-#8) (100mm) 1” 1” 2” AXIS: 233D • Mounting holes (4-#8) (25mm) 1” BASLER: BIP2-1000C-DN / BIP2-1300C-DN / BIP-D1000C-DN / BIP-D1300C-DN • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 16 CANON: VB-C60 • Mounting holes (64mm) ½” 2” CANON: VB-M40 • Mounting holes (64mm) ½” 2” CANON: VB-C300 • Mounting holes (88mm) ½” 1” 2”...
- Page 17 ELMO: PTC 400C • Mounting holes (4-#8) (100mm) ½” ½” 1” 2” JVC: VN-V686BU / VN-V685U • Mounting holes (3-#8) (38mm) ½” 1” PANASONIC: BB-HCM580/581 • Mounting holes (88mm) ½” 2” 1”...
- Page 18 PANASONIC: WV-CS580 Series • Mounting holes (4-#8) (38mm) ½” 1” PANASONIC: SC386 • Mounting holes (4-#8) (25mm) 1” PANASONIC: WV-CS574 • Mounting holes (4-#8) (50mm) 2”...
- Page 19 PANASONIC: WV-CS954 / WV-NS954 • Mounting holes (4-#8) (13mm) ½” PANASONIC: WV-NS202 / WV-SC385 / WV-SC384 • Mounting holes (4-#8) (75mm) 1” 2” PIXORD: P-463 • Mounting holes (3-#8) (25mm) 1”...
- Page 20 SANYO: VCC-HD 5400 • Mounting holes (2-#8) (64mm) ½” 2” SONY: EP / ER Series (520 / 550 / 580) • Mounting holes (4-#8) (38mm) ½” 1” SONY: RX Series (RX530 / RX550 / RX570) • Mounting holes (4-M3)
-
Page 21: Sony: Snc-Rz25
SONY: SNC RH/RS Series (RH124 / RS44 / RS46) • Mounting holes (4-#8) (25mm) 1” SONY: SNC-RZ25 • Mounting holes (2-M3) (13mm) ½” SONY: SNC-RZ50 • Mounting holes (2-M3) (50mm) 2”... -
Page 22: Toshiba: Ik-Wb21A
TOSHIBA: IK-WB16A • Mounting holes (88mm) ½” 2” 1” TOSHIBA: IK-WB21A • Mounting holes (4-#8) (75mm) 1” 2” VIDEO IQ: VIQ-CT / CID / CRD / HD-CRD • Mounting holes (4-M4x10) (75mm) 1” 2”... -
Page 23: Product Registration/Warranty
Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.
