Instruction manual for CoolSafe

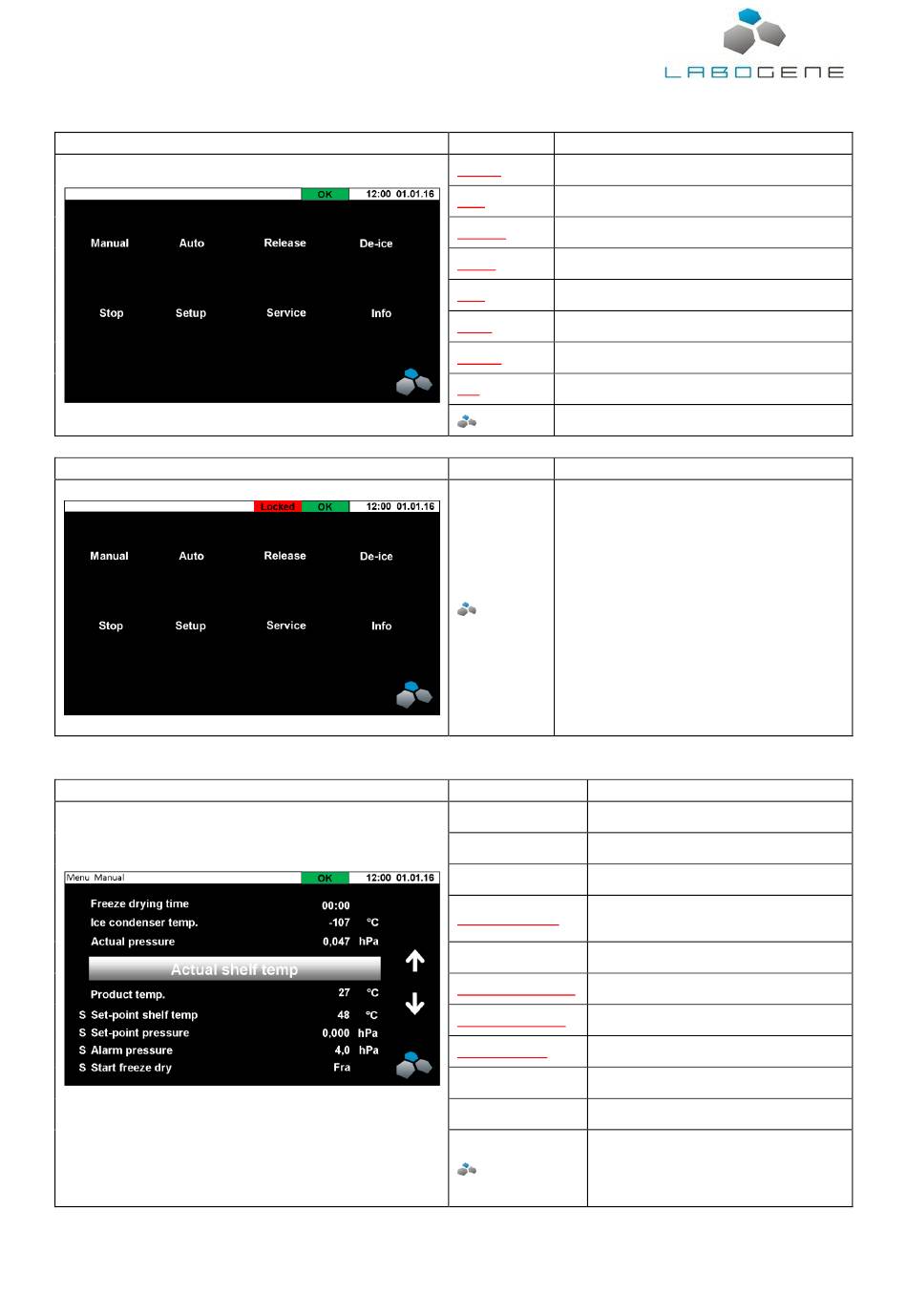

6.1

Main menu

Touch screen – as opened
Touch screen - locked
6.2

Manual menu

Touch screen – as opened
Scroll up and down, using the arrows to the right, to select the
menu item you want to see or change.
01012016QA01
Menu Action
Manual Opens the manual menu.
Opens the program selection menu or the
Auto
automatic operation menu.
Release Opens the release menu.
De-ice Opens the de-ice menu.
Stop Stops the ongoing process.
Setup Opens the setup menu.
Service Opens the service menu.
Info Opens the information screen.
Press the LaboGene logo for 2-3 seconds to
lock the display for input. Unlock press again.
Menu Action
Press the LaboGene logo for 2-3 seconds to
lock the display for input. Unlock press again.
It is possible to lock and unlock the touch
screen from any menu or screen.
Item
Freeze drying time
Ice condenser temp.
Actual pressure
Actual shelf temp
Product temp.
Set-point shelf temp
Set-point pressure
Alarm pressure
Start freeze dry
Reset error
Item No. 700636
CopyRight © 2016
Action
Time elapsed since start of freeze drying.
The current temperature in the ice
condenser.
The current pressure in the freeze dryer.
The current shelf temperature – press to
open a list of the temperature on each
shelf.
The current product temperature – one
product temperature sensor available.
Press to set shelf temperature.
Press to set system pressure.
Press to set the alarm pressure.
Press to start manual freeze drying
process.
Scroll down to see this menu item.
Press the LaboGene logo to return to the
main menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
