Instruction manual for CoolSafe

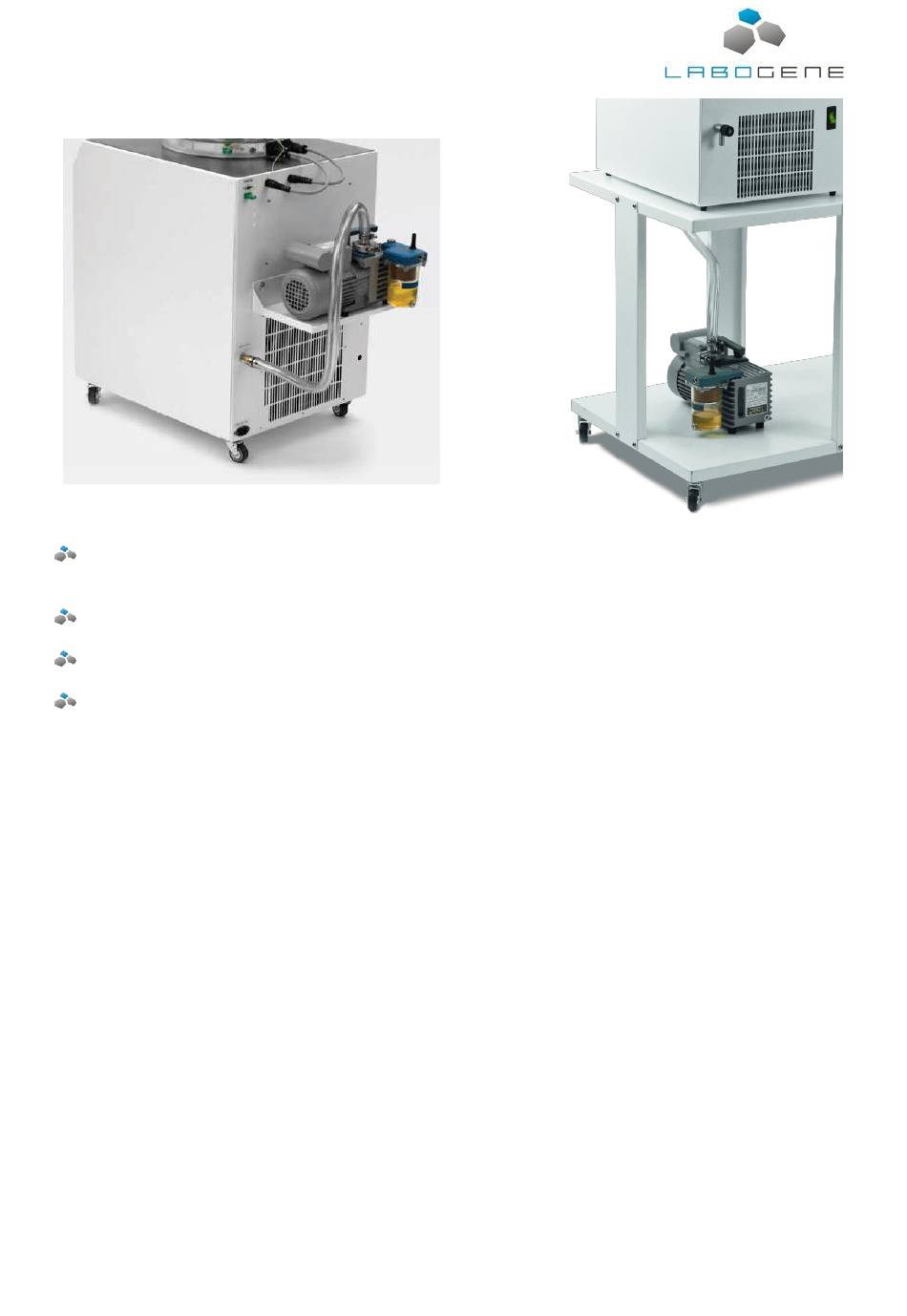

Check that the mains supply for the pump is according to the specifications on the type
label.
Connect the vacuum hose to the suction side of the pump.
Connect the pump to the vacuum connection pipe on the rear panel of the CoolSafe.
Check the oil level on the pump and fill it if necessary. The oil level sight glass should be
1/2 - 3/4 full.
LaboGene recommends that when the pump is running the gas ballast valve is in the open position.
3.3

Installation of accessories

The CoolSafe Touch is a basic unit and must be equipped with the necessary accessories in order
to run a specific freeze-drying process. Select from the wide range of accessories listed in the
accessories section.
Make sure to mount the correct manifold, chamber and shelf arrangements and always check that
all connections are tight.
4

Functional description

The CoolSafe Touch including a vacuum pump and a chamber or manifold is a standalone unit that
is setup, controlled and monitored via the user interface placed on the front of the cabinet.
The control system lets the user take complete control of the system and makes it easy to set up the
system and run the freeze-drying process manually or automatically.
All the temperature, pressure and time parameters needed for the freeze drying process can easily
be controlled via the control panel or user interface.
4.1

Control panel

The control panel is placed on the upper front of the cabinet at an angle for easy reading and use.
The control panel, a 4,3" resistive colour touch screen, acts as input device for setup of the CoolSafe,
programming of freeze drying processes, monitoring device for the freeze drying process and
