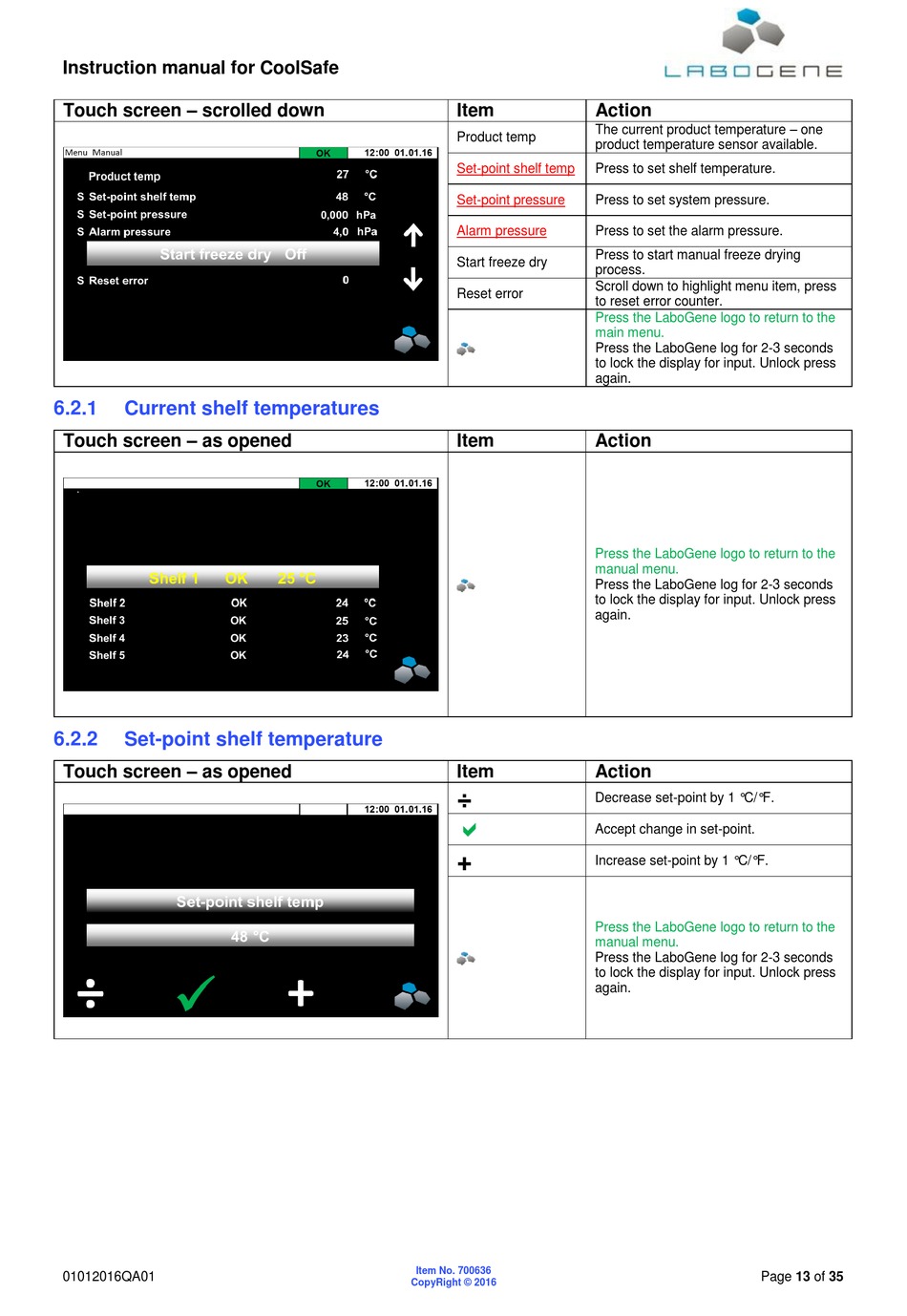

Instruction manual for CoolSafe
Touch screen – scrolled down
6.2.1

Current shelf temperatures

Touch screen – as opened
6.2.2

Set-point shelf temperature

Touch screen – as opened
01012016QA01
Item
Product temp
Set-point shelf temp
Set-point pressure
Alarm pressure
Start freeze dry
Reset error
Item
Item
÷

+
Item No. 700636
CopyRight © 2016
Action
The current product temperature – one
product temperature sensor available.
Press to set shelf temperature.
Press to set system pressure.
Press to set the alarm pressure.
Press to start manual freeze drying
process.
Scroll down to highlight menu item, press
to reset error counter.
Press the LaboGene logo to return to the
main menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
Action
Press the LaboGene logo to return to the
manual menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
Action
Decrease set-point by 1 °C/°F.
Accept change in set-point.
Increase set-point by 1 °C/°F.
Press the LaboGene logo to return to the
manual menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
